SC APC Female to SC APC Male Plug-In Fixed Fiber Optic Attenuator 1-25dB for Precise Signal Control

SC APC Female to SC APC Male Plug-In Fixed Fiber Optic Attenuator 1-25dB for Precise Signal Control
SC APC Female to SC APC Male Plug-In Fixed Fiber Optic Attenuator 1-25dB for Precise Signal Control
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Minimum Order Quantity: 50pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Mating Durability（cycle）: ≥1000 Response Time(dB/ms): 3
Attenuation Control Accuracy(dB): ±0.5 Supply Voltage(DC): ± 5V
Operating Temperature (℃）: -5 ~ +65 Storage Temperature (℃）: -40 ~ +75
Highlight:

Plug In Sc Attenuator

,

Fiber Optical Attenuator 25dB

,

25dB Sc Fiber Optic Attenuator

Product Description

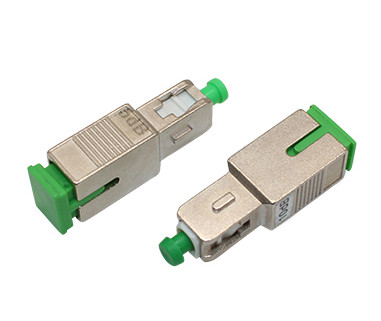

SC APC Female to SC APC Male Plug-In Fixed Fiber Optic Attenuator (1-25dB)
This precision fiber optic attenuator provides defined control of optical signals with attenuation values ranging from 1 to 25dB. Designed for 1310-1550nm wavelengths, it features low insertion loss and high return loss for reliable performance in optical communication systems.
SC APC Female to SC APC Male Plug-In Fixed Fiber Optic Attenuator 1-25dB for Precise Signal Control 0
Product Identification
Zion Code Description
7236003 SC APC Female to SC APC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
Our fixed attenuators offer precise control of optical signals in both integrated and add-on applications. These devices limit light transmission to exact levels required by your project, ensuring highly accurate performance across various optical systems.
SC APC Female to SC APC Male Plug-In Fixed Fiber Optic Attenuator 1-25dB for Precise Signal Control 1
Key Features
  • Precise attenuation values for accurate signal control
  • Low polarization dependent loss and insertion loss
  • Precision reflection polishing for optimal performance
  • Fast and reliable connections
  • Stable attenuation with high reliability
  • Compliant with industry green initiatives including ROHS
  • GR910 compliant for industry standards
Applications
Our fiber optic attenuators reduce optical signal energy to prevent distortion in optical receivers caused by excessive input power. These optical passive devices are essential for debugging optical power performance, calibrating fiber instruments, and attenuating fiber signals in various applications:
  • CWDM & DWDM systems
  • Data center networks
  • CATV systems
  • Test equipment and measurement systems
SC APC Female to SC APC Male Plug-In Fixed Fiber Optic Attenuator 1-25dB for Precise Signal Control 2
Connector Types
Connector Type Description
SC APC Female to SC APC Male Plug-In Fixed Fiber Optic Attenuator 1-25dB for Precise Signal Control 3
LC		 Used in LC fiber interfaces with modular jack latch mechanism, commonly found in routers and network equipment
SC APC Female to SC APC Male Plug-In Fixed Fiber Optic Attenuator 1-25dB for Precise Signal Control 4
SC		 Applied to SC fiber interfaces with flat, rectangular connectors similar to RJ-45 but with internal copper contacts
SC APC Female to SC APC Male Plug-In Fixed Fiber Optic Attenuator 1-25dB for Precise Signal Control 5
FC		 Used on FC fiber interfaces with metal sleeve construction and turnbuckle fastening, typically deployed on ODF distribution frames
SC APC Female to SC APC Male Plug-In Fixed Fiber Optic Attenuator 1-25dB for Precise Signal Control 6
ST		 Applied to ST fiber interfaces with round shell and turnbuckle fastening, commonly used in fiber distribution frames and 10Base-F connections
Technical Specifications
Parameter FC, SC, LC, ST
Operating Wavelength 1310-1550 nm
Insertion Loss ≤ 0.6 dB
Return Loss ≥ 45 dB
Repeatability ≤ 0.2 dB
Resolution ≤ 0.1 dB
Wavelength Dependent Loss WDL ≤ 0.3 (C & L Band)
Polarization Dependent Loss PDL ≤ 0.2 dB
Temperature Dependent Loss TDL ≤ 0.2 dB
Tolerance for 1-5dB Attenuation ± 0.5 dB
Tolerance for 6-30dB Attenuation ± 10 nm
Mating Durability ≥ 1000 cycles
Response Time 3 dB/ms
Attenuation Control Accuracy ± 0.5 dB
Supply Voltage ± 5V DC
Operating Temperature -5°C to +65°C
Storage Temperature -40°C to +75°C
Related Fiber Optic Attenuator Products
Zion Code Product Code Description
7237001 ZC11FXAADXX LC APC Female to LC APC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237002 ZC11FXBBDXX LC UPC Female to LC UPC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237003 ZC11FXCCDXX SC APC Female to SC APC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237004 ZC11FXDDDXX SC UPC Female to SC UPC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237005 ZC12FXEEDXX ST APC Female to ST APC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237006 ZC11FXFFDXX ST UPC Female to ST UPC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237007 ZC11FXGGDXX FC APC Female to FC APC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237008 ZC11FXHHDXX FC UPC Female to FC UPC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
Packaging & Customization
Our fiber optic cables are packaged in protective, labeled cartons with standard sizes of 34×22×15 cm, 44×34×24 cm, and 54×39×34 cm. Carton selection depends on quantity requirements, and all packaging can be customized to meet your specific needs.
SC APC Female to SC APC Male Plug-In Fixed Fiber Optic Attenuator 1-25dB for Precise Signal Control 7
OEM/ODM Services
We offer comprehensive OEM/ODM services with our professional R&D team supporting customized solutions including:
  • Customized logos and branding
  • Personalized label, PE bag, and carton design
  • Custom attenuation specifications and connector configurations
