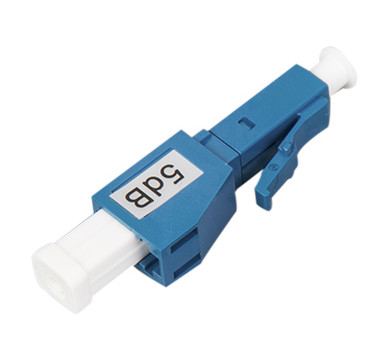

LC UPC Female to LC UPC Male Plug-In Fixed Fiber Optical Attenuator with 1-25dB Attenuation and Low Insertion Loss

LC UPC Female to LC UPC Male Plug-In Fixed Fiber Optical Attenuator with 1-25dB Attenuation and Low Insertion Loss
LC UPC Female to LC UPC Male Plug-In Fixed Fiber Optical Attenuator with 1-25dB Attenuation and Low Insertion Loss
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Minimum Order Quantity: 50pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Mating Durability（cycle）: ≥1000 Response Time(dB/ms): 3
Attenuation Control Accuracy(dB): ±0.5 Supply Voltage(DC): ± 5V
Operating Temperature (℃）: -5 ~ +65 Storage Temperature (℃）: -40 ~ +75
Highlight:

Fiber Optical Attenuator Plug In

,

Fiber Optical Attenuator Fixed

,

Male Fiber Optical Attenuator

Product Description

LC UPC Female to LC UPC Male Plug-In Fixed Fiber Optical Attenuator (1-25dB)
Precision fiber optic attenuator designed to control optical signal levels with exceptional accuracy for industrial and telecommunications applications.
LC UPC Female to LC UPC Male Plug-In Fixed Fiber Optical Attenuator with 1-25dB Attenuation and Low Insertion Loss 0
Product Identification
Zion Code Zion Description
7236002 LC UPC Female to LC UPC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
Female to male fixed attenuators from OMC provide defined control of optical signals in both integrated and add-on products. These precision components limit optical power to exact levels required by your specific application, ensuring highly accurate performance.
LC UPC Female to LC UPC Male Plug-In Fixed Fiber Optical Attenuator with 1-25dB Attenuation and Low Insertion Loss 1
Key Features
  • Precise attenuation values
  • Low PDL and insertion loss
  • Precision reflection polishing
  • Fast connection capability
  • Stable attenuation with high reliability
  • Compliant with industry green initiatives including ROHS
  • GR910 compliant
Applications
ZION COMMUNICATIONS' Fiber Optic Attenuator reduces optical signal energy to prevent receiver distortion from excessive input power. This optical passive device is essential for debugging optical power performance, instrument calibration, and signal attenuation in optical communication systems.
Primary Applications: CWDM & DWDM systems, data center networks, CATV systems, and test equipment.
LC UPC Female to LC UPC Male Plug-In Fixed Fiber Optical Attenuator with 1-25dB Attenuation and Low Insertion Loss 2
Connector Types
Connector Type Description
LC UPC Female to LC UPC Male Plug-In Fixed Fiber Optical Attenuator with 1-25dB Attenuation and Low Insertion Loss 3LC UPC Female to LC UPC Male Plug-In Fixed Fiber Optical Attenuator with 1-25dB Attenuation and Low Insertion Loss 4 LC fiber attenuator: Used in LC fiber interfaces, connects to SFP modules with modular jack (RJ) latch mechanism. Commonly used in routers.
LC UPC Female to LC UPC Male Plug-In Fixed Fiber Optical Attenuator with 1-25dB Attenuation and Low Insertion Loss 5LC UPC Female to LC UPC Male Plug-In Fixed Fiber Optical Attenuator with 1-25dB Attenuation and Low Insertion Loss 6 SC fiber attenuator: Applied to SC fiber interfaces, similar to RJ-45 but flatter with copper column contacts.
LC UPC Female to LC UPC Male Plug-In Fixed Fiber Optical Attenuator with 1-25dB Attenuation and Low Insertion Loss 7LC UPC Female to LC UPC Male Plug-In Fixed Fiber Optical Attenuator with 1-25dB Attenuation and Low Insertion Loss 8 FC fiber attenuator: Applied to FC fiber interfaces with metal sleeve reinforcement and turnbuckle fastening. Typically used on ODF distribution frames.
LC UPC Female to LC UPC Male Plug-In Fixed Fiber Optical Attenuator with 1-25dB Attenuation and Low Insertion Loss 9LC UPC Female to LC UPC Male Plug-In Fixed Fiber Optical Attenuator with 1-25dB Attenuation and Low Insertion Loss 10 ST fiber attenuator: Applied to ST fiber interfaces with round shell and turnbuckle fastening. Commonly used in fiber distribution frames for 10Base-F connections.
Technical Specifications
Parameter FC, SC, LC, ST
Operating Wavelength (nm) 1310-1550
Insertion Loss (dB) ≤ 0.6
Return Loss (dB) ≥45
Repeatability (dB) ≤ 0.2
Resolution (dB) ≤ 0.1
Wavelength Dependent Loss (dB) WDL≤ 0.3 (C+L Band)
Polarization Dependent Loss (dB) PDL≤ 0.2
Temperature Dependent Loss (dB) TDL≤ 0.2
Tolerance for 1-5dB Attenuation (dB) ±0.5
Tolerance for 6-30dB Attenuation (nm) ±10
Mating Durability (cycles) ≥1000
Response Time (dB/ms) 3
Attenuation Control Accuracy (dB) ±0.5
Supply Voltage (DC) ± 5V
Operating Temperature (°C) -5 to +65
Storage Temperature (°C) -40 to +75
Related Products
Zion Code Product Code Description
7237001 ZC11FXAADXX LC APC Female to LC APC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237002 ZC11FXBBDXX LC UPC Female to LC UPC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237003 ZC11FXCCDXX SC APC Female to SC APC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237004 ZC11FXDDDXX SC UPC Female to SC UPC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237005 ZC12FXEEDXX ST APC Female to ST APC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237006 ZC11FXFFDXX ST UPC Female to ST UPC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237007 ZC11FXGGDXX FC APC Female to FC APC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237008 ZC11FXHHDXX FC UPC Female to FC UPC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237009 ZC11FXIIDXX MU APC Female to MU APC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237010 ZC12FXJJDXX MU UPC Female to MU UPC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237011 ZC11FXKKDXX E2000 APC Female to E2000 APC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237012 ZC11FXLLDXX E2000 UPC Female to E2000 UPC Male Plug-in Fixed Fiber Optical Attenuator (1-25dB)
7237013 ZC12FXMMDXX 8F MPO(Female) to MPO(Male) Fiber Optical Attenuator (1-20dB)
7237014 ZC11FXNNDXX 12F MPO(Female) to MPO(Male) Fiber Optical Attenuator (1-20dB)
7237015 ZC11FXOODXX 24F MPO(Female) to MPO(Male) Fiber Optical Attenuator (1-20dB)
Packaging
This fiber optic cable package features easy handling and optimal protection. Standard carton sizes include 34×22×15 cm, 44×34×24 cm, and 54×39×34 cm. Carton selection depends on product quantity. Custom packaging options available.
LC UPC Female to LC UPC Male Plug-In Fixed Fiber Optical Attenuator with 1-25dB Attenuation and Low Insertion Loss 11
OEM/ODM Services
OMC's LC Female to LC Male Fixed Attenuators are available for SM UPC (1-25dB) and SM APC (1-25dB). ZION Communication offers comprehensive OEM/ODM services with professional R&D support.
Customization Options: Custom logos, label/PE bag/carton design services available.
