Home > Products> Optical Fiber System> SC UPC Fiber Optic Adapter with Ceramic Sleeve and ≤ 0.2dB Alternating Loss for Wide Temperature Range (-40 to +85℃)

SC UPC Fiber Optic Adapter with Ceramic Sleeve and ≤ 0.2dB Alternating Loss for Wide Temperature Range (-40 to +85℃)

SC UPC Fiber Optic Adapter with Ceramic Sleeve and ≤ 0.2dB Alternating Loss for Wide Temperature Range (-40 to +85℃)
SC UPC Fiber Optic Adapter with Ceramic Sleeve and ≤ 0.2dB Alternating Loss for Wide Temperature Range (-40 to +85℃)
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Minimum Order Quantity: 50pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Alternating Loss (dB): ≤ 0.2 Durability: The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels: Single Core, Dual Core, 4 Core Frame Material: Metal Or Plastic
Sleeve Material: Ceramic Or Metal Operating Temperature (℃）: -40 ~ +85
Storage Temperature (℃）: -40 ~ +85
Highlight:

SC Adapter With Legs

,

Ceramic SC Adapter

,

Adapter Sc Upc With Legs

Product Description

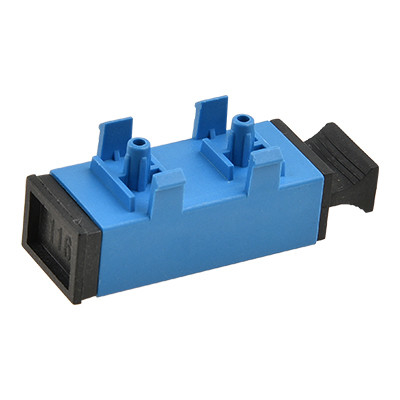

SC UPC With Legs Fiber Optic Adapter/Coupler
Precision fiber optic adapter designed to connect SC UPC connectors with legs for secure mounting. Ensures optimal light transmission with minimal signal loss.
SC UPC Fiber Optic Adapter with Ceramic Sleeve and ≤ 0.2dB Alternating Loss for Wide Temperature Range (-40 to +85℃) 0
Product Identification
Zion Code Zion Description
7235103 SC UPC With Legs Fiber Optic Adapter/Coupler
Primary Applications
  • Precisely links two fiber optic connectors to maximize light transmission
  • Minimizes signal loss in optical pathways
  • Features low insertion loss, excellent interchangeability and reproducibility
  • Each adapter undergoes functional testing before shipment
Product Description
The fiber optic adapter enables connection of same or different fiber optic active connectors within fiber lines, ensuring uninterrupted optical pathways with minimal signal degradation.
By precisely aligning fiber end faces, it maximizes light energy output transmission and couples receiving fibers efficiently, minimizing system impact from optical link intervention.
As part of optical passive components, these adapters serve telecommunications networks, cable television networks, user loop systems, and local area networks.
Hangzhou Zion Communication adapters feature high flame retardancy, low insertion loss, exceptional durability, and wide operating temperature range.
Also known as couplers, fiber optic adapters are compact devices designed to terminate or link fiber optic cables and connectors between two fiber optic lines.
SC UPC Fiber Optic Adapter with Ceramic Sleeve and ≤ 0.2dB Alternating Loss for Wide Temperature Range (-40 to +85℃) 1
Technical Specifications
Parameter FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC
Operating Wavelength (nm) SM (OS2): 1310-1550
MM (OM1,2,3,4): 850-1300
Insertion Loss (dB) ≤ 0.2
Return Loss (dB) PC ≥45 | UPC ≥50 | APC ≥60 | PC ≥30
Repeatability (dB) ≤ 0.2
Alternating Loss (dB) ≤ 0.2
Durability Change of 500 interpolations < 0.20dB
Number of Channels Single core, Dual core, 4 core
Frame Material Metal or Plastic
Sleeve Material Ceramic or Metal
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +85°C
Related Fiber Optic Adapters
Zion Code Zion Description
7235001LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018FC With Rectangle Flange Fiber Optic Adapter/Coupler
Connector Types
SC UPC Fiber Optic Adapter with Ceramic Sleeve and ≤ 0.2dB Alternating Loss for Wide Temperature Range (-40 to +85℃) 2
LC Connector
Used in LC fiber interfaces for SFP module connections. Features modular RJ latch mechanism. Commonly used in routers.
SC UPC Fiber Optic Adapter with Ceramic Sleeve and ≤ 0.2dB Alternating Loss for Wide Temperature Range (-40 to +85℃) 3
SC Connector
Similar to RJ-45 but flatter with copper column contacts. Widely used in network infrastructure.
SC UPC Fiber Optic Adapter with Ceramic Sleeve and ≤ 0.2dB Alternating Loss for Wide Temperature Range (-40 to +85℃) 4
FC Connector
Features metal sleeve reinforcement with turnbuckle fastening. Typically used on ODF distribution frames.
SC UPC Fiber Optic Adapter with Ceramic Sleeve and ≤ 0.2dB Alternating Loss for Wide Temperature Range (-40 to +85℃) 5
ST Connector
Round shell design with turnbuckle fastening. Common in fiber distribution frames and 10Base-F connections.
OEM/ODM Services
ZION Communication offers comprehensive OEM/ODM services with professional R&D team support:
  • Customized Logo
  • Label/PE bag/Carton design
Inquire Now
