SC UPC SX Welding Fiber Optic Adapter Without Flange Featuring Ceramic Sleeve and Low Insertion Loss

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Alternating Loss (dB):	≤ 0.2	Durability:	The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels:	Single Core, Dual Core, 4 Core	Frame Material:	Metal Or Plastic
Sleeve Material:	Ceramic Or Metal	Operating Temperature (℃）:	-40 ~ +85
Storage Temperature (℃）:	-40 ~ +85
Highlight:	SC UPC Welding Adapter , Ceramic Sc Fiber Coupler , Single Core Welding Adapter

Product Description

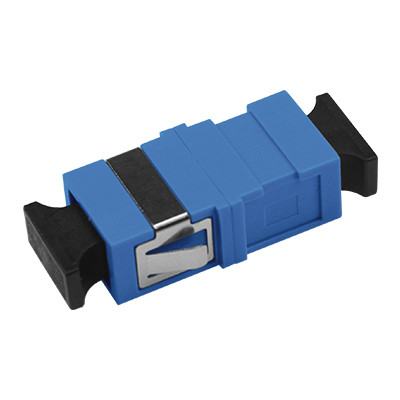

SC UPC SX Welding Adapter Without Flange Fiber Optic

SC UPC SX Welding Adapter Without Flange Fiber Optic Adapter/Coupler

SC LC FC ST/APC UPC SX/DX/QUAD 0.9/2.0/3.0mm Welding Symmetry Plastic/Hybrid OPTIC ADAPTER/COUPLER

Product Identification

Zion Code	Zion Description
7235102	SC UPC SX Welding Adapter Without Flange Fiber Optic Adapter/Coupler

Applications

By linking two connectors precisely, fiber optic adapters allow light sources to be transmitted efficiently while minimizing loss
Features low insertion loss, excellent interchangeability and reproducibility
Each adapter undergoes functional testing before shipping

Product Description

The fiber optic adapter implements connections between the same or different fiber optic active connectors in fiber lines, ensuring optical path continuity with minimal loss.

It precisely connects fiber end faces to maximize light energy transmission from output fibers to receiving fibers, minimizing system impact during optical link intervention.

Belonging to the optical passive components field, these adapters are used in telecommunications networks, cable television networks, user loop systems, and local area networks.

Hangzhou Zion Communication adapters feature high flame retardancy, low insertion loss, high durability, and wide operating temperature range.

Fiber optic adapters, also called couplers, are compact devices designed to terminate or link fiber optic cables or connectors between two fiber optic lines.

Technical Specifications

Parameter	FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC	SM (OS2)	MM (OM1,2,3,4)
Operating Wavelength (nm)		1310-1550	850-1300
Insertion Loss (dB)	≤ 0.2
Return Loss (dB)	PC ≥45 \| UPC ≥50 \| APC ≥60 \| PC ≥30
Repeatability (dB)	≤ 0.2
Alternating Loss (dB)	≤ 0.2
Durability	Change of 500 interpolation times is less than 0.20dB
Number of Channels	Single core, Dual core, 4 core
Frame Material	Metal or Plastic
Sleeve Material	Ceramic or Metal
Operating Temperature (°C)	-40 to +85
Storage Temperature (°C)	-40 to +85

Related Fiber Optic Adapters

Zion Code	Zion Description
7235001	LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002	LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003	LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004	SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005	SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006	SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007	SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008	SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009	SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010	FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011	FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012	SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013	SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014	SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015	SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016	FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017	FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018	FC With Rectangle Flange Fiber Optic Adapter/Coupler

Connector Types

LC Connector

Used in LC optical fiber interfaces to connect SFP module connectors. Features easy-to-operate modular jack (RJ) latch mechanism. Commonly used in routers.

SC Connector

Used in SC fiber optic interfaces. Resembles RJ-45 interface but is flatter with copper column contacts instead of thin copper pins.

FC Connector

Used in FC optical fiber interfaces. Features metal sleeve external strengthening and turnbuckle fastening method. Typically used on ODF side (distribution frames).

ST Connector

Used in ST optical fiber interfaces. Features round shell and turnbuckle fastening. Commonly used in fiber distribution frames and 10Base-F connections.

OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM services supported by our professional R&D team.

Customized Logo
Label/PE bag/Carton design
