SC UPC SX Welding Fiber Optic Adapter with Flange Ceramic Sleeve for Low Insertion Loss

SC UPC SX Welding Fiber Optic Adapter with Flange Ceramic Sleeve for Low Insertion Loss
SC UPC SX Welding Fiber Optic Adapter with Flange Ceramic Sleeve for Low Insertion Loss
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Minimum Order Quantity: 50pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Alternating Loss (dB): ≤ 0.2 Durability: The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels: Single Core, Dual Core, 4 Core Frame Material: Metal Or Plastic
Sleeve Material: Ceramic Or Metal Operating Temperature (℃）: -40 ~ +85
Storage Temperature (℃）: -40 ~ +85
Highlight:

Single Core Sc Fiber Coupler

,

Sc Fiber Coupler With Flange

,

Ceramic Sleeve Welding Adapter

Product Description

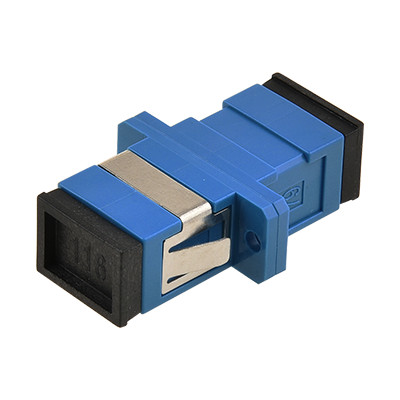

SC UPC SX Welding Fiber Coupler With Flange Ceramic Sleeve
Product Overview

SC UPC SX Welding Adapter with Flange Fiber Optic Adapter/Coupler designed for precise fiber optic connections with ceramic sleeve construction.

SC UPC SX Welding Fiber Optic Adapter with Flange Ceramic Sleeve for Low Insertion Loss 0
Product Identification
Zion Code Zion Description
7235101 SC UPC SX Welding Adapter With Flange Fiber Optic Adapter/Coupler
Applications
  • Precisely links two connectors to maximize light transmission and minimize loss
  • Features low insertion loss, excellent interchangeability and reproducibility
  • Each adapter undergoes functional testing before shipping
Product Description

The fiber optic adapter enables connection of same or different fiber optic active connectors in fiber lines, ensuring unblocked optical paths with minimal loss. It precisely aligns fiber end faces to maximize light energy transmission and coupling efficiency.

Fiber optic adapters (also called couplers) are small devices designed to terminate or link fiber optic cables or connectors between two fiber optic lines.

SC UPC SX Welding Fiber Optic Adapter with Flange Ceramic Sleeve for Low Insertion Loss 1
Technical Specifications
Parameter FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC
Operating Wavelength (nm) SM (OS2): 1310-1550 | MM (OM1,2,3,4): 850-1300
Insertion Loss (dB) ≤ 0.2
Return Loss (dB) PC ≥45 | UPC ≥50 | APC ≥60 | PC ≥30
Repeatability (dB) ≤ 0.2
Alternating Loss (dB) ≤ 0.2
Durability Change of 500 interpolation times less than 0.20dB
Number of Channels Single core, Dual core, 4 core
Frame Material Metal or Plastic
Sleeve Material Ceramic or Metal
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +85°C
Related Fiber Optic Adapter Products
Zion Code Zion Description
7235001 LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002 LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003 LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004 SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005 SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006 SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007 SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008 SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009 SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010 FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011 FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012 SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013 SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014 SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015 SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016 FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017 FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018 FC With Rectangle Flange Fiber Optic Adapter/Coupler
Connector Types
SC UPC SX Welding Fiber Optic Adapter with Flange Ceramic Sleeve for Low Insertion Loss 2
LC Connector
Used in LC optical fiber interfaces with modular jack latch mechanism, commonly found in routers and SFP modules.
SC UPC SX Welding Fiber Optic Adapter with Flange Ceramic Sleeve for Low Insertion Loss 3
SC Connector
Features a flat interface similar to RJ-45 but with copper column contacts instead of thin copper pins.
SC UPC SX Welding Fiber Optic Adapter with Flange Ceramic Sleeve for Low Insertion Loss 4
FC Connector
Utilizes metal sleeve external strengthening with turnbuckle fastening, typically used on ODF distribution frames.
SC UPC SX Welding Fiber Optic Adapter with Flange Ceramic Sleeve for Low Insertion Loss 5
ST Connector
Features a round shell with turnbuckle fastening, commonly used in fiber distribution frames and 10Base-F connections.
OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM services with our professional R&D team, including:

  • Customized Logo
  • Label/PE bag/Carton design
