SC UPC SX Fiber Optic Adapter with Flange Featuring Ceramic Sleeve ≤ 0.2dB Alternating Loss and Wide Operating Temperature (-40 to +85℃)

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Alternating Loss (dB):	≤ 0.2	Durability:	The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels:	Single Core, Dual Core, 4 Core	Frame Material:	Metal Or Plastic
Sleeve Material:	Ceramic Or Metal	Operating Temperature (℃）:	-40 ~ +85
Storage Temperature (℃）:	-40 ~ +85
Highlight:	Ceramic SX Adapter , Fiber Optic SX Adapter , Single Core SC Adapter

Product Description

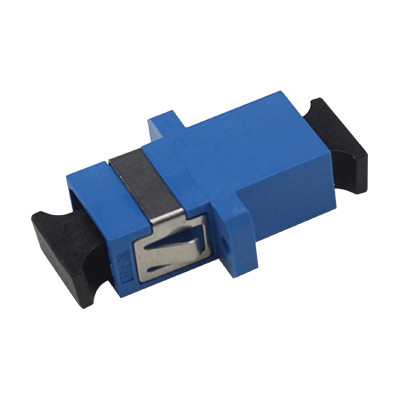

SC UPC SX Fiber Optic Adapter / Coupler With Flange

Precision fiber optic adapter designed to connect SC UPC SX connectors with flange mounting. Ensures optimal light transmission with minimal signal loss in telecommunications and networking applications.

Product Overview

Comprehensive range of fiber optic adapters including SC, LC, FC, ST configurations with UPC, APC polishing options and various mounting styles.

Zion Product Information

Zion Code	Zion Description
7235099	SC UPC SX Adapter With Flange Fiber Optic Adapter/Coupler

Applications

Precisely links two fiber optic connectors to maximize light transmission and minimize signal loss
Features low insertion loss, excellent interchangeability, and high reproducibility
Each adapter undergoes functional testing before shipping to ensure quality performance

Product Description

Fiber optic adapters enable connection between same or different fiber optic connectors in transmission lines, maintaining optical path continuity with minimal loss. They precisely align fiber end faces to maximize light energy coupling between transmitting and receiving fibers.

Hangzhou Zion Communication adapters provide high flame retardancy, low insertion loss, exceptional durability, and wide operating temperature range for reliable performance in demanding environments.

Technical Specifications

Parameter	FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC
Operating Wavelength (nm)	SM (OS2): 1310-1550 MM (OM1,2,3,4): 850-1300
Insertion Loss (dB)	≤ 0.2
Return Loss (dB)	PC ≥45 \| UPC ≥50 \| APC ≥60 \| PC ≥30
Repeatability (dB)	≤ 0.2
Alternating Loss (dB)	≤ 0.2
Durability	The change of 500 interpolation times is less than 0.20dB
Number of Channels	Single core, Dual core, 4 core
Frame Material	Metal or Plastic
Sleeve Material	Ceramic or Metal
Operating Temperature	-40°C to +85°C
Storage Temperature	-40°C to +85°C

Related Fiber Optic Adapters

Zion Code	Zion Description
7235001	LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002	LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003	LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004	SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005	SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006	SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007	SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008	SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009	SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010	FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011	FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012	SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013	SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014	SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015	SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016	FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017	FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018	FC With Rectangle Flange Fiber Optic Adapter/Coupler

Connector Types

LC Connector

Used in LC fiber optic interfaces to connect SFP modules. Features modular RJ latch mechanism for easy operation. Commonly used in routers.

SC Connector

SC fiber optic interface resembles RJ-45 but is flatter with copper contact pins. Widely used in networking applications.

FC Connector

FC fiber optic interface features metal sleeve reinforcement with turnbuckle fastening. Typically used on ODF distribution frames.

ST Connector

ST fiber optic interface with round shell and turnbuckle fastening. Commonly used in fiber distribution frames for 10Base-F connections.

OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM services with professional R&D team support:

Customized Logo Implementation
Label/PE Bag/Carton Design Services
