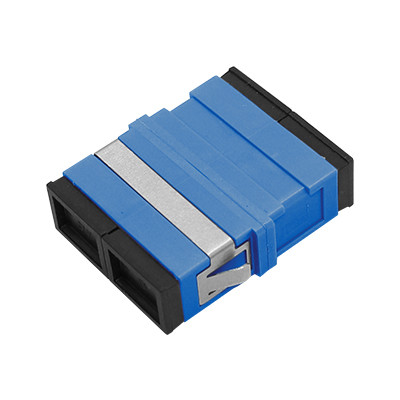

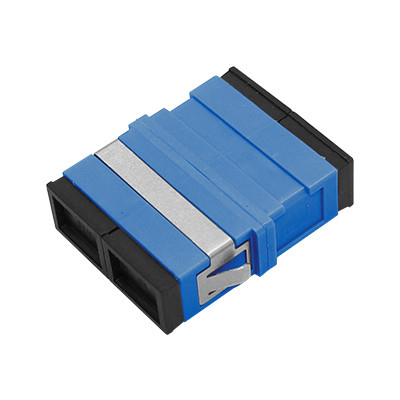

4 Core SC UPC DX Fiber Optic Adapter Without Flange for Low Insertion Loss Connectivity

4 Core SC UPC DX Fiber Optic Adapter Without Flange for Low Insertion Loss Connectivity
4 Core SC UPC DX Fiber Optic Adapter Without Flange for Low Insertion Loss Connectivity
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Minimum Order Quantity: 50pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Alternating Loss (dB): ≤ 0.2 Durability: The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels: Single Core, Dual Core, 4 Core Frame Material: Metal Or Plastic
Sleeve Material: Ceramic Or Metal Operating Temperature (℃）: -40 ~ +85
Storage Temperature (℃）: -40 ~ +85
Highlight:

DX Adapter Without Flange

,

UPC Adapter With Flange

,

4 Core DX Adapter

Product Description

SC UPC DX Adapter Without Flange Fiber Optic
Precision fiber optic adapter designed to connect SC UPC DX connectors without flange, ensuring optimal light transmission with minimal signal loss.
4 Core SC UPC DX Fiber Optic Adapter Without Flange for Low Insertion Loss Connectivity 0
Product Identification
Zion Code Zion Description
7235098 SC UPC DX Adapter Without Flange Fiber Optic Adapter/Coupler
Applications
Fiber optic adapters precisely link two connectors to maximize light transmission while minimizing signal loss. These components feature low insertion loss, excellent interchangeability, and reliable reproducibility. Every adapter undergoes functional testing prior to shipment.
Product Description
This fiber optic adapter enables connection between identical or different fiber optic active connectors within fiber lines. It ensures uninterrupted optical pathways with minimal signal degradation by precisely aligning fiber end faces to maximize light energy output coupling into receiving fibers.
Key features include:
  • High flame retardancy for enhanced safety
  • Low insertion loss for optimal performance
  • High durability for long-term reliability
  • Wide operating temperature range for versatile applications
Also known as fiber optic couplers, these devices terminate or link fiber optic cables and connectors between two fiber optic lines.
4 Core SC UPC DX Fiber Optic Adapter Without Flange for Low Insertion Loss Connectivity 1
Technical Specifications
Parameter FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC SM (OS2) MM (OM1,2,3,4)
Operating Wavelength (nm) 1310-1550 850-1300
Insertion Loss (dB) ≤ 0.2
Return Loss (dB) PC ≥45 | UPC ≥50 | APC ≥60 | PC ≥30
Repeatability (dB) ≤ 0.2
Alternating Loss (dB) ≤ 0.2
Durability Change of 500 interpolation times is less than 0.20dB
Number of Channels Single core, Dual core, 4 core
Frame Material Metal or Plastic
Sleeve Material Ceramic or Metal
Operating Temperature (°C) -40 to +85
Storage Temperature (°C) -40 to +85
Related Fiber Optic Adapters
Zion Code Zion Description
7235001LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018FC With Rectangle Flange Fiber Optic Adapter/Coupler
Connector Types
4 Core SC UPC DX Fiber Optic Adapter Without Flange for Low Insertion Loss Connectivity 2
LC Connector
Used in LC optical fiber interfaces to connect SFP modules. Features modular jack (RJ) latch mechanism for easy operation. Commonly used in routers.
4 Core SC UPC DX Fiber Optic Adapter Without Flange for Low Insertion Loss Connectivity 3
SC Connector
Used in SC fiber optic interfaces. Similar to RJ-45 but flatter with copper column contacts instead of thin copper pins.
4 Core SC UPC DX Fiber Optic Adapter Without Flange for Low Insertion Loss Connectivity 4
FC Connector
Used in FC optical fiber interfaces. Features metal sleeve reinforcement with turnbuckle fastening. Typically used on ODF distribution frames.
4 Core SC UPC DX Fiber Optic Adapter Without Flange for Low Insertion Loss Connectivity 5
ST Connector
Used in ST optical fiber interfaces. Round shell design with turnbuckle fastening. Commonly used in fiber distribution frames for 10Base-F connections.
OEM/ODM Services
ZION Communication offers comprehensive OEM/ODM services supported by our professional R&D team:
  • Customized Logo
  • Label/PE bag/Carton design
