SC SX Fiber Optic Adapter Coupler with ≤ 0.2dB Alternating Loss and Metal or Plastic Frame Ceramic or Metal Sleeve

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Alternating Loss (dB):	≤ 0.2	Durability:	The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels:	Single Core, Dual Core, 4 Core	Frame Material:	Metal Or Plastic
Sleeve Material:	Ceramic Or Metal	Operating Temperature (℃）:	-40 ~ +85
Storage Temperature (℃）:	-40 ~ +85
Highlight:	SC SX Metal Adapter , SC SX Plastic Adapter , Dual Core SX Adapter

Product Description

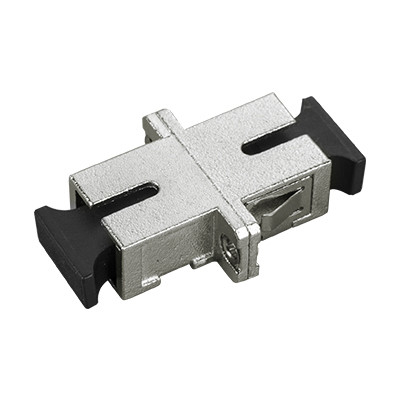

SC SX Metal or Plastic Fiber Optic Adapter / Coupler

Precision fiber optic adapter designed to connect SC, LC, FC, ST, APC, UPC connectors with various configurations including SX/DX/QUAD and 0.9/2.0/3.0mm welding symmetry options.

Product Identification

Zion Code	Zion Description
7235096	SC SX Metal Adapter Fiber Optic Adapter/Coupler

Applications

Fiber optic adapters precisely link two connectors to maximize light transmission while minimizing signal loss. These components feature low insertion loss, excellent interchangeability, and proven reproducibility. Each adapter undergoes functional testing before shipment.

Product Description

Fiber optic adapters (also called couplers) enable connection between same or different fiber optic active connectors in optical lines. They ensure uninterrupted optical pathways with minimal loss by precisely aligning fiber end faces to maximize light energy coupling between transmitting and receiving fibers.

Hangzhou Zion Communication adapters offer high flame retardancy, low insertion loss, exceptional durability, and wide operating temperature range, making them ideal for telecommunications networks, cable television networks, user loop systems, and local area networks.

Technical Characteristics

Parameter	FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC	SM (OS2)	MM (OM1,2,3,4)
Operating Wavelength (nm)		1310-1550	850-1300
Insertion Loss (dB)	≤ 0.2
Return Loss (dB)	PC ≥45 \| UPC ≥50 \| APC ≥60 \| PC ≥30
Repeatability (dB)	≤ 0.2
Alternating Loss (dB)	≤ 0.2
Durability	Change of 500 interpolation times is less than 0.20dB
Number of Channels	Single core, Dual core, 4 core
Frame Material	Metal or Plastic
Sleeve Material	Ceramic or Metal
Operating Temperature (°C)	-40 to +85
Storage Temperature (°C)	-40 to +85

Related Fiber Optic Adapter Products

Zion Code	Zion Description
7235001	LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002	LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003	LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004	SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005	SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006	SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007	SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008	SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009	SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010	FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011	FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012	SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013	SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014	SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015	SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016	FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017	FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018	FC With Rectangle Flange Fiber Optic Adapter/Coupler

Connector Types

LC Connector: Used in LC optical fiber interfaces to connect SFP modules. Features easy-to-operate modular jack (RJ) latch mechanism. Commonly used in routers.

SC Connector: Used in SC fiber optic interfaces, resembling RJ-45 but with copper column contacts instead of thin copper pins.

FC Connector: Features metal sleeve external strengthening and turnbuckle fastening. Typically used on ODF distribution frames.

ST Connector: Round shell design with turnbuckle fastening. Commonly used in fiber optic distribution frames and for 10Base-F connections.

OEM/ODM Services

Zion Communication offers comprehensive OEM/ODM services with our professional R&D team, including:

Customized Logo
Label/PE bag/Carton design
