SC OM4 Fiber Optic Adapter with Legs and Ceramic Sleeve for High-Performance Optical Connections

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Alternating Loss (dB):	≤ 0.2	Durability:	The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels:	Single Core, Dual Core, 4 Core	Frame Material:	Metal Or Plastic
Sleeve Material:	Ceramic Or Metal	Operating Temperature (℃）:	-40 ~ +85
Storage Temperature (℃）:	-40 ~ +85
Highlight:	SC OM4 With Legs , Fiber Optic Adapter With Legs , SC OM4 Adapter

Product Description

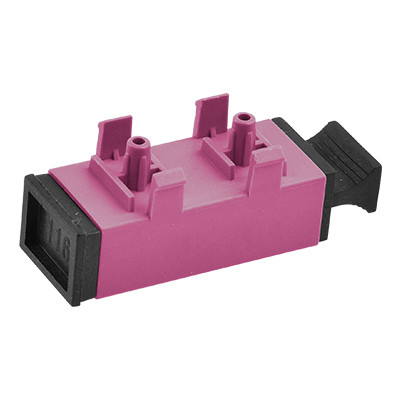

SC OM4 Fiber Optic Adapter / Coupler With Legs

Product Overview

SC OM4 With Legs Fiber Optic Adapter/Coupler provides reliable connectivity solutions for various fiber optic connector types including LC, FC, ST, and more.

Zion Product Information

Zion Code	Zion Description
7235095	SC OM4 With Legs Fiber Optic Adapter/Coupler

Applications

By linking two connectors precisely, fiber optic adapters allow light sources to be transmitted efficiently while minimizing loss. These adapters feature low insertion loss, excellent interchangeability, and reproducibility. Each adapter undergoes functional testing before shipping.

Product Description

Fiber optic adapters implement connections between the same or different fiber optic active connectors in fiber lines, ensuring optical path continuity with minimal loss. They precisely connect fiber end faces to maximize light energy transmission and coupling efficiency while minimizing system impact.

Fiber optic adapters, also called couplers, are small devices designed to terminate or link fiber optic cables or connectors between two fiber optic lines.

Technical Specifications

Parameter	FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC	SM (OS2)	MM (OM1,2,3,4)
Operating Wavelength (nm)		1310-1550	850-1300
Insertion Loss (dB)	≤ 0.2
Return Loss (dB)	PC ≥45 \| UPC ≥50 \| APC ≥60 \| PC ≥30
Repeatability (dB)	≤ 0.2
Alternating Loss (dB)	≤ 0.2
Durability	The change of 500 interpolation times is less than 0.20dB
Number of Channels	Single core, Dual core, 4 core
Frame Material	Metal or Plastic
Sleeve Material	Ceramic or Metal
Operating Temperature (°C)	-40 ~ +85
Storage Temperature (°C)	-40 ~ +85

Related Fiber Optic Adapters

Zion Code	Zion Description
7235001	LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002	LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003	LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004	SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005	SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006	SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007	SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008	SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009	SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010	FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011	FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012	SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013	SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014	SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015	SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016	FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017	FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018	FC With Rectangle Flange Fiber Optic Adapter/Coupler

Connector Types

LC Interface: Used in LC fiber optic interfaces to connect SFP modules. Features easy-to-operate modular jack latch mechanism.

SC Interface: Used in SC fiber optic interfaces. Features a flat design with copper contact pins.

FC Interface: Used in FC fiber optic interfaces. Features metal sleeve reinforcement and turnbuckle fastening.

ST Interface: Used in ST fiber optic interfaces. Features round shell design with turnbuckle fastening.

OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM services with our professional R&D team:

Customized Logo
Label/PE bag/Carton design
