SC OM4 SX Welding Fiber Optic Adapter Without Flange with Ceramic Sleeve for Precise Optical Coupling

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Alternating Loss (dB):	≤ 0.2	Durability:	The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels:	Single Core, Dual Core, 4 Core	Frame Material:	Metal Or Plastic
Sleeve Material:	Ceramic Or Metal	Operating Temperature (℃）:	-40 ~ +85
Storage Temperature (℃）:	-40 ~ +85
Highlight:	SC OM4 Welding Adapter , Welding Adapter Without Flange , Fiber Optic Welding Adapter

Product Description

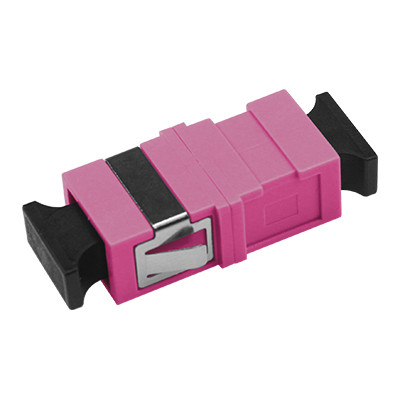

SC OM4 SX Welding Fiber Optic Adapter Without Flange

Product Overview

SC LC FC ST/APC UPC SX/DX/QUAD 0.9/2.0/3.0mm Welding Symmetry Plastic/Hybrid Fiber Optic Adapter/Coupler

Product Details

Zion Code	Zion Description
7235094	SC OM4 SX Welding Adapter Without Flange Fiber Optic Adapter/Coupler

Applications

By linking two connectors precisely, fiber optic adapters allow light sources to be transmitted efficiently while minimizing signal loss. These adapters feature low insertion loss, excellent interchangeability, and reliable reproducibility. Each unit undergoes functional testing before shipping.

Product Description

Fiber optic adapters enable connection between the same or different fiber optic active connectors within fiber lines. They ensure uninterrupted optical pathways with minimal loss by precisely aligning fiber end faces to maximize light energy transmission from output fibers to receiving fibers.

Our adapters from Hangzhou Zion Communication Co., Ltd. offer high flame retardancy, low insertion loss, superior durability, and wide operating temperature range, making them the optimal choice for your applications.

Also known as couplers, fiber optic adapters are compact devices designed to terminate or link fiber optic cables and connectors between two fiber optic lines.

Technical Specifications

Parameter	FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC
Operating Wavelength (nm)	1310-1550 (SM/OS2) 850-1300 (MM/OM1,2,3,4)
Insertion Loss (dB)	≤ 0.2
Return Loss (dB)	PC ≥45 \| UPC ≥50 \| APC ≥60 \| PC ≥30
Repeatability (dB)	≤ 0.2
Alternating Loss (dB)	≤ 0.2
Durability	Change of 500 interpolation times is less than 0.20dB
Number of Channels	Single core, Dual core, 4 core
Frame Material	Metal or Plastic
Sleeve Material	Ceramic or Metal
Operating Temperature	-40°C to +85°C
Storage Temperature	-40°C to +85°C

Related Fiber Optic Adapters

Zion Code	Zion Description
7235001	LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002	LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003	LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004	SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005	SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006	SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007	SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008	SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009	SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010	FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011	FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012	SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013	SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014	SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015	SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016	FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017	FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018	FC With Rectangle Flange Fiber Optic Adapter/Coupler

Connector Types

LC Connector
Used in LC optical fiber interfaces to connect SFP modules. Features an easy-to-operate modular jack (RJ) latch mechanism. Commonly used in routers.

SC Connector
Used in SC fiber optic interfaces, similar to RJ-45 but flatter with copper contacts. Identified by copper column interior.

FC Connector
Used in FC optical fiber interfaces with metal sleeve external reinforcement and turnbuckle fastening. Typically used on ODF distribution frames.

ST Connector
Used in ST optical fiber interfaces with round shell and turnbuckle fastening. Common in fiber distribution frames for 10Base-F connections.

OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM services with our professional R&D team:

Customized Logo
Label/PE bag/Carton design
