SC OM4 SX Welding Adapter with Flange Fiber Optic Adapter Featuring ≤ 0.2dB Alternating Loss Ceramic or Metal Sleeve and -40 to +85℃ Operating Temperature

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Alternating Loss (dB):	≤ 0.2	Durability:	The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels:	Single Core, Dual Core, 4 Core	Frame Material:	Metal Or Plastic
Sleeve Material:	Ceramic Or Metal	Operating Temperature (℃）:	-40 ~ +85
Storage Temperature (℃）:	-40 ~ +85
Highlight:	OM4 Welding Adapter , SX Welding Adapter , Single Core SX Adapter

Product Description

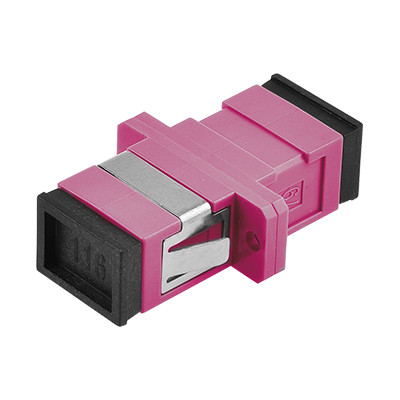

SC OM4 SX Welding Adapter With Flange Fiber Optic Adapter/Coupler

SC LC FC ST/APC UPC SX/DX/QUAD 0.9/2.0/3.0mm Welding Symmetry Plastic/Hybrid OPTIC ADAPTER/COUPLER

Zion Code and Description

Zion Code	Zion Description
7235093	SC OM4 SX Welding Adapter With Flange Fiber Optic Adapter/Coupler

Applications

By linking two connectors precisely, fiber optic adapters allow light sources to be transmitted at maximum efficiency while minimizing loss. These adapters feature low insertion loss, excellent interchangeability, and reliable reproducibility. Each fiber optic adapter undergoes functional testing before shipping.

Product Description

Fiber optic adapters implement connections between the same or different fiber optic active connectors in fiber lines. They ensure optical path continuity with minimal loss by precisely connecting fiber end faces to maximize light energy transmission from output fiber to receiving fiber.

Also called couplers, fiber optic adapters are small devices designed to terminate or link fiber optic cables or connectors between two fiber optic lines.

Supplied by Hangzhou Zion Communication Co., Ltd., these adapters feature high flame retardancy, low insertion loss, exceptional durability, and wide operating temperature range - making them the optimal choice for your applications.

Technical Characteristics

Parameter	FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC	SM (OS2)	MM (OM1,2,3,4)
Operating Wavelength (nm)		1310-1550	850-1300
Insertion Loss (dB)	≤ 0.2
Return Loss (dB)	PC ≥45 \| UPC ≥50 \| APC ≥60 \| PC ≥30
Repeatability (dB)	≤ 0.2
Alternating Loss (dB)	≤ 0.2
Durability	Change of 500 interpolation times is less than 0.20dB
Number of Channels	Single core, Dual core, 4 core
Frame Material	Metal or Plastic
Sleeve Material	Ceramic or Metal
Operating Temperature (°C)	-40 ~ +85
Storage Temperature (°C)	-40 ~ +85

Zion Communication's Hot LC-LC Fiber Optical Adapters

Zion Code	Zion Description
7235001	LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002	LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003	LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004	SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005	SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006	SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007	SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008	SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009	SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010	FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011	FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012	SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013	SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014	SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015	SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016	FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017	FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018	FC With Rectangle Flange Fiber Optic Adapter/Coupler

Connector Types

LC Connector

Used in LC optical fiber interface to connect SFP module connectors. Features easy-to-operate modular jack (RJ) latch mechanism. Commonly used in routers.

SC Connector

Used in SC fiber optic interface, similar to RJ-45 but flatter. Identified by copper column contacts instead of thin copper contacts.

FC Connector

Used in FC optical fiber interface with metal sleeve external strengthening and turnbuckle fastening. Typically used on ODF side (distribution frames).

ST Connector

Used in ST optical fiber interface, commonly found in fiber distribution frames. Features round shell and turnbuckle fastening. Often used for 10Base-F connections.

OEM/ODM Services

ZION Communication has extensive experience in producing OEM/ODM cases with our professional R&D team.

Customized Logo
Label/PE bag/Carton design
