Ceramic or Plastic SC OM4 SX Fiber Optic Adapter with Flange for ≤ 0.2dB Loss and Single/Dual/4 Core Channels

Ceramic or Plastic SC OM4 SX Fiber Optic Adapter with Flange for ≤ 0.2dB Loss and Single/Dual/4 Core Channels
Ceramic or Plastic SC OM4 SX Fiber Optic Adapter with Flange for ≤ 0.2dB Loss and Single/Dual/4 Core Channels
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Minimum Order Quantity: 50pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Alternating Loss (dB): ≤ 0.2 Durability: The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels: Single Core, Dual Core, 4 Core Frame Material: Metal Or Plastic
Sleeve Material: Ceramic Or Metal Operating Temperature (℃）: -40 ~ +85
Storage Temperature (℃）: -40 ~ +85
Highlight:

SC OM4 SX Adapter

,

SX Adapter With Flange

,

Plastic SX Adapter

Product Description

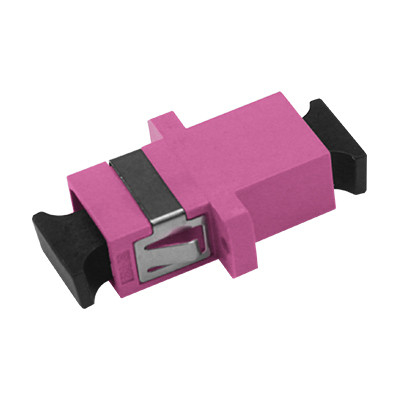

SC OM4 SX Adapter With Flange Fiber Optic Adapter/Coupler
Precision fiber optic adapter designed to connect SC OM4 connectors with flange mounting. Available in ceramic or plastic construction for optimal performance in telecommunications and networking applications.
Ceramic or Plastic SC OM4 SX Fiber Optic Adapter with Flange for ≤ 0.2dB Loss and Single/Dual/4 Core Channels 0
Product Identification
Zion Code Description
7235092 SC OM4 SX Adapter With Flange Fiber Optic Adapter/Coupler
Applications
Precisely links two fiber optic connectors to maximize light transmission while minimizing signal loss. Features low insertion loss, excellent interchangeability, and reliable reproducibility. Each adapter undergoes functional testing prior to shipment.
Product Description
Enables connection between same or different fiber optic connector types in optical pathways. Maintains optical continuity with minimal signal degradation by precisely aligning fiber end faces to optimize light energy coupling between transmitting and receiving fibers.
Constructed with high flame retardancy materials, these adapters deliver low insertion loss, exceptional durability, and wide operating temperature range, making them ideal for telecommunications networks, cable television systems, user loop networks, and local area networks.
Ceramic or Plastic SC OM4 SX Fiber Optic Adapter with Flange for ≤ 0.2dB Loss and Single/Dual/4 Core Channels 1
Technical Specifications
Parameter Single Mode (OS2) Multimode (OM1,2,3,4)
Operating Wavelength 1310-1550 nm 850-1300 nm
Insertion Loss ≤ 0.2 dB
Return Loss PC ≥45 dB, UPC ≥50 dB, APC ≥60 dB PC ≥30 dB
Repeatability ≤ 0.2 dB
Alternating Loss ≤ 0.2 dB
Durability Change of 500 interpolations < 0.20 dB
Channels Single core, Dual core, 4 core
Frame Material Metal or Plastic
Sleeve Material Ceramic or Metal
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +85°C
Related Fiber Optic Adapters
7235001
LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002
LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003
LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004
SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005
SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006
SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007
SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008
SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009
SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010
FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011
FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012
SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013
SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014
SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015
SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016
FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017
FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018
FC With Rectangle Flange Fiber Optic Adapter/Coupler
Connector Types
Ceramic or Plastic SC OM4 SX Fiber Optic Adapter with Flange for ≤ 0.2dB Loss and Single/Dual/4 Core Channels 2
LC Connector: Used in LC fiber optic interfaces to connect SFP modules. Features modular RJ latch mechanism for easy operation.
Ceramic or Plastic SC OM4 SX Fiber Optic Adapter with Flange for ≤ 0.2dB Loss and Single/Dual/4 Core Channels 3
SC Connector: Rectangular interface similar to RJ-45 but with internal copper contact pins. Commonly used in various networking applications.
Ceramic or Plastic SC OM4 SX Fiber Optic Adapter with Flange for ≤ 0.2dB Loss and Single/Dual/4 Core Channels 4
FC Connector: Features metal sleeve construction with screw-type fastening mechanism. Typically used on optical distribution frames.
Ceramic or Plastic SC OM4 SX Fiber Optic Adapter with Flange for ≤ 0.2dB Loss and Single/Dual/4 Core Channels 5
ST Connector: Round shell design with bayonet-style fastening. Commonly employed in fiber distribution frames and 10Base-F connections.
OEM/ODM Services
Zion Communication offers comprehensive OEM/ODM services with professional R&D team support. Customization options include:
  • Customized logo implementation
  • Label, PE bag, and carton design
