Home > Products> Optical Fiber System> SC OM4 DX Fiber Optic Adapter with Flange - ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, Wide Operating Temperature (-40 ~ +85℃)

SC OM4 DX Fiber Optic Adapter with Flange - ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, Wide Operating Temperature (-40 ~ +85℃)

SC OM4 DX Fiber Optic Adapter with Flange - ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, Wide Operating Temperature (-40 ~ +85℃)
SC OM4 DX Fiber Optic Adapter with Flange - ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, Wide Operating Temperature (-40 ~ +85℃)
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Minimum Order Quantity: 50pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Alternating Loss (dB): ≤ 0.2 Durability: The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels: Single Core, Dual Core, 4 Core Frame Material: Metal Or Plastic
Sleeve Material: Ceramic Or Metal Operating Temperature (℃）: -40 ~ +85
Storage Temperature (℃）: -40 ~ +85
Highlight:

≤ 0.2dB Alternating Loss Fiber Optic Adapter

,

Ceramic or Metal Sleeve Optical Coupler

,

Wide Operating Temperature SC Adapter

Product Description

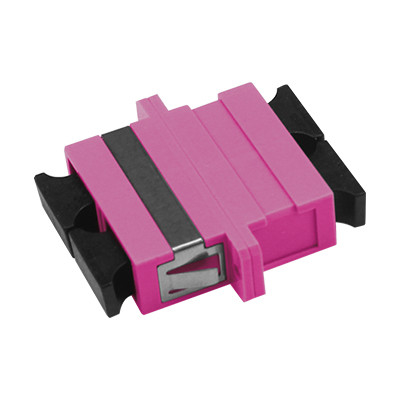

SC OM4 DX Adapter With Flange Fiber Optic Adapter/Coupler
Precision fiber optic adapter designed to connect SC OM4 connectors with flange mounting for secure installation.
SC OM4 DX Fiber Optic Adapter with Flange - ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, Wide Operating Temperature (-40 ~ +85℃) 0
Product Identification
Zion Code Zion Description
7235090 SC OM4 DX Adapter With Flange Fiber Optic Adapter/Coupler
Applications
Fiber optic adapters precisely link two connectors to maximize light transmission while minimizing signal loss. These components feature low insertion loss, excellent interchangeability, and reliable reproducibility. Every adapter undergoes functional testing before shipment.
Product Description
Fiber optic adapters enable connection between same or different fiber optic active connectors within fiber lines, ensuring uninterrupted optical pathways with minimal signal degradation. By precisely aligning fiber end faces, they optimize light energy transmission from output fibers to receiving fibers while minimizing system impact. These passive optical components serve telecommunications networks, cable television systems, user loop networks, and local area networks.
Hangzhou Zion Communication adapters provide high flame retardancy, low insertion loss, exceptional durability, and wide operating temperature range for reliable performance.
Also known as couplers, fiber optic adapters are compact devices designed to terminate or interconnect fiber optic cables and connectors between optical lines.
Technical Specifications
SC OM4 DX Fiber Optic Adapter with Flange - ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, Wide Operating Temperature (-40 ~ +85℃) 1
Parameter FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC
Operating Wavelength (nm) SM (OS2): 1310-1550
MM (OM1,2,3,4): 850-1300
Insertion Loss (dB) ≤ 0.2
Return Loss (dB) PC ≥45 | UPC ≥50 | APC ≥60 | PC ≥30
Repeatability (dB) ≤ 0.2
Alternating Loss (dB) ≤ 0.2
Durability Change of 500 interpolation times is less than 0.20dB
Number of Channels Single core, Dual core, 4 core
Frame Material Metal or Plastic
Sleeve Material Ceramic or Metal
Operating Temperature (°C) -40 ~ +85
Storage Temperature (°C) -40 ~ +85
Related Fiber Optic Adapter Products
Zion Code Zion Description
7235001LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018FC With Rectangle Flange Fiber Optic Adapter/Coupler
Connector Types
SC OM4 DX Fiber Optic Adapter with Flange - ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, Wide Operating Temperature (-40 ~ +85℃) 2
LC Connector
Used in LC fiber optic interfaces to connect SFP modules. Features easy-to-operate modular jack (RJ) latch mechanism. Commonly used in routers.
SC OM4 DX Fiber Optic Adapter with Flange - ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, Wide Operating Temperature (-40 ~ +85℃) 3
SC Connector
SC fiber optic interface resembles RJ-45 but is flatter with copper column contacts instead of thin copper pins.
SC OM4 DX Fiber Optic Adapter with Flange - ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, Wide Operating Temperature (-40 ~ +85℃) 4
FC Connector
FC fiber optic interface uses metal sleeve reinforcement with turnbuckle fastening. Typically deployed on ODF distribution frames.
SC OM4 DX Fiber Optic Adapter with Flange - ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, Wide Operating Temperature (-40 ~ +85℃) 5
ST Connector
ST fiber optic interface features round shell with turnbuckle fastening. Commonly used in fiber distribution frames for 10Base-F connections.
OEM/ODM Services
ZION Communication offers comprehensive OEM/ODM services supported by our professional R&D team with extensive experience in custom solutions.
  • Customized Logo Implementation
  • Label/PE Bag/Carton Design Services
