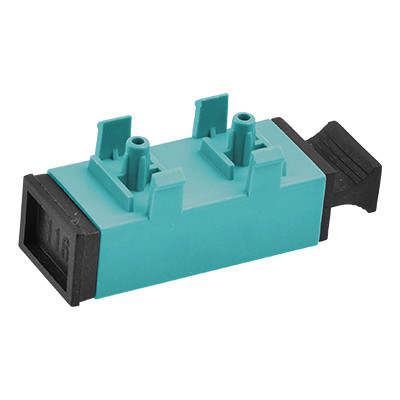

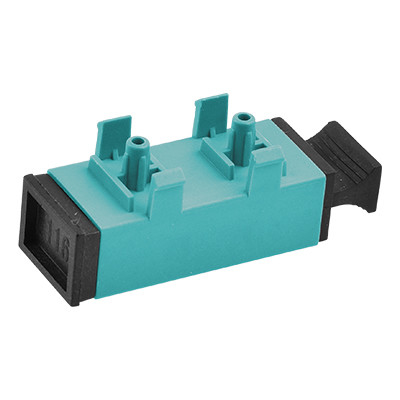

SC OM3 With Legs Fiber Optic Adapter/Coupler

Fiber Optic Adapter - SC LC FC ST/APC UPC SX/DX/QUAD 0.9/2.0/3.0mm Welding Symmetry Plastic/Hybrid

Product Identification

Zion Code	Zion Description
7235089	SC OM3 With Legs Fiber Optic Adapter/Coupler

Applications

By linking two connectors precisely, fiber optic adapters allow light sources to be transmitted at maximum efficiency while minimizing loss. These adapters feature low insertion loss, excellent interchangeability, and reproducibility. Each unit undergoes functional testing before shipping.

Product Description

Fiber optic adapters implement connections between the same or different fiber optic active connectors in fiber lines, ensuring optical path continuity with minimal loss. They precisely align fiber end faces to maximize light energy transmission from output fibers to receiving fibers while minimizing system impact from their intervention in the optical link.

As optical passive components, they are used in telecommunications networks, cable television networks, user loop systems, and local area networks. Hangzhou Zion Communication adapters offer high flame retardancy, low insertion loss, high durability, and wide operating temperature range.

Also called couplers, fiber optic adapters are compact devices designed to terminate or link fiber optic cables or connectors between two fiber optic lines.

Technical Specifications

Parameter	FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC	SM (OS2)	MM (OM1,2,3,4)
Operating Wavelength (nm)		1310-1550	850-1300
Insertion Loss (dB)	≤ 0.2
Return Loss (dB)	PC ≥45 \| UPC ≥50 \| APC ≥60 \| PC ≥30
Repeatability (dB)	≤ 0.2
Alternating Loss (dB)	≤ 0.2
Durability	Change of 500 interpolations < 0.20dB
Number of Channels	Single core, Dual core, 4 core
Frame Material	Metal or Plastic
Sleeve Material	Ceramic or Metal
Operating Temperature (°C)	-40 to +85
Storage Temperature (°C)	-40 to +85

Related Fiber Optic Adapter Products

Zion Code	Zion Description
7235001	LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002	LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003	LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004	SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005	SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006	SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007	SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008	SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009	SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010	FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011	FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012	SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013	SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014	SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015	SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016	FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017	FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018	FC With Rectangle Flange Fiber Optic Adapter/Coupler

Connector Types

LC Connector

Used in LC optical fiber interface to connect SFP module connectors. Features easy-to-operate modular jack (RJ) latch mechanism. Commonly used in routers.

SC Connector

Used in SC fiber optic interface, resembles RJ-45 interface but is flatter with copper column contacts instead of thin copper contacts.

FC Connector

Used in FC optical fiber interface with metal sleeve external strengthening and turnbuckle fastening. Typically used on ODF side (distribution frames).

ST Connector

Used in ST optical fiber interface with round shell and turnbuckle fastening. Commonly used in fiber optic distribution frames for 10Base-F connections.

OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM services with our professional R&D team:

Customized Logo
Label/PE bag/Carton design

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Alternating Loss (dB):	≤ 0.2	Durability:	The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels:	Single Core, Dual Core, 4 Core	Frame Material:	Metal Or Plastic
Sleeve Material:	Ceramic Or Metal	Operating Temperature (℃）:	-40 ~ +85
Storage Temperature (℃）:	-40 ~ +85
Highlight:	≤ 0.2dB Alternating Loss Fiber Optic Adapter , Ceramic or Metal Sleeve Fiber Optic Coupler , Wide Operating Temperature SC Adapter
