Home > Products> Optical Fiber System> SC OM3 SX Welding Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range

SC OM3 SX Welding Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Alternating Loss (dB):	≤ 0.2	Durability:	The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels:	Single Core, Dual Core, 4 Core	Frame Material:	Metal Or Plastic
Sleeve Material:	Ceramic Or Metal	Operating Temperature (℃）:	-40 ~ +85
Storage Temperature (℃）:	-40 ~ +85
Highlight:	SC OM3 SX Welding Adapter , SC OM3 SX Fiber Optic Adapter

Product Description

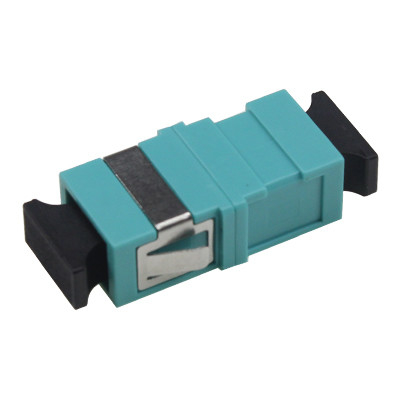

SC OM3 SX Welding Adapter Without Flange

This fiber optic adapter/coupler is designed for precise connection of SC OM3 SX connectors without flange, ensuring optimal light transmission with minimal loss.

Product Identification

Zion Code	Zion Description
7235088	SC OM3 SX Welding Adapter Without Flange Fiber Optic Adapter/Coupler

Applications

Fiber optic adapters precisely link two connectors to maximize light transmission and minimize signal loss. They feature low insertion loss, excellent interchangeability, and reproducibility. Each adapter undergoes functional testing before shipment.

Product Description

Fiber optic adapters enable connection between the same or different fiber optic connectors in transmission lines, ensuring uninterrupted optical pathways with minimal loss. They precisely align fiber end faces to maximize light energy output coupling into receiving fibers while minimizing system impact.

Also known as couplers, these devices terminate or link fiber optic cables and connectors between two fiber optic lines.

Technical Specifications

Parameter	FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC
Operating Wavelength (nm)	SM (OS2): 1310-1550 \| MM (OM1,2,3,4): 850-1300
Insertion Loss (dB)	≤ 0.2
Return Loss (dB)	PC ≥45 \| UPC ≥50 \| APC ≥60 \| PC ≥30
Repeatability (dB)	≤ 0.2
Alternating Loss (dB)	≤ 0.2
Durability	Change of 500 interpolations < 0.20dB
Number of Channels	Single core, Dual core, 4 core
Frame Material	Metal or Plastic
Sleeve Material	Ceramic or Metal
Operating Temperature (°C)	-40 to +85
Storage Temperature (°C)	-40 to +85

Related Products

Zion Code	Zion Description
7235071	SC APC DX Adapter With Flange Fiber Optic Adapter/Coupler
7235072	SC APC SX Adapter With Flange Fiber Optic Adapter/Coupler
7235073	SC APC SX Adapter Without Flange Fiber Optic Adapter/Coupler
7235074	SC APC SX Welding Adapter With Flange Fiber Optic Adapter/Coupler
7235075	SC APC SX Welding Adapter Without Flange Fiber Optic Adapter/Coupler
7235076	SC APC With Legs Fiber Optic Adapter/Coupler
7235077	SC MM DX Adapter With Flange Fiber Optic Adapter/Coupler
7235078	SC MM SX Adapter With Flange Fiber Optic Adapter/Coupler
7235079	SC MM SX Adapter Without Flange Fiber Optic Adapter/Coupler
7235080	SC MM SX Welding Adapter With Flange Fiber Optic Adapter/Coupler
7235081	SC MM SX Welding Adapter Without Flange Fiber Optic Adapter/Coupler
7235082	SC MM With Legs Fiber Optic Adapter/Coupler
7235083	SC OM3 DX Adapter With Flange Fiber Optic Adapter/Coupler
7235084	SC OM3 DX Adapter Without Flange Fiber Optic Adapter/Coupler
7235085	SC OM3 SX Adapter With Flange Fiber Optic Adapter/Coupler
7235086	SC OM3 SX Adapter Without Flange Fiber Optic Adapter/Coupler
7235087	SC OM3 SX Welding Adapter With Flange Fiber Optic Adapter/Coupler
7235088	SC OM3 SX Welding Adapter Without Flange Fiber Optic Adapter/Coupler
7235089	SC OM3 With Legs Fiber Optic Adapter/Coupler
7235090	SC OM4 DX Adapter With Flange Fiber Optic Adapter/Coupler
7235091	SC OM4 DX Adapter Without Flange Fiber Optic Adapter/Coupler
7235092	SC OM4 SX Adapter With Flange Fiber Optic Adapter/Coupler
7235093	SC OM4 SX Welding Adapter With Flange Fiber Optic Adapter/Coupler
7235094	SC OM4 SX Welding Adapter Without Flange Fiber Optic Adapter/Coupler
7235095	SC OM4 With Legs Fiber Optic Adapter/Coupler
7235096	SC SX Metal Adapter Fiber Optic Adapter/Coupler
7235097	SC UPC DX Adapter With Flange Fiber Optic Adapter/Coupler
7235098	SC UPC DX Adapter Without Flange Fiber Optic Adapter/Coupler
7235099	SC UPC SX Adapter With Flange Fiber Optic Adapter/Coupler
7235100	SC UPC SX Adapter Without Flange Fiber Optic Adapter/Coupler
7235101	SC UPC SX Welding Adapter With Flange Fiber Optic Adapter/Coupler
7235102	SC UPC SX Welding Adapter Without Flange Fiber Optic Adapter/Coupler
7235103	SC UPC With Legs Fiber Optic Adapter/Coupler

Connector Types

LC Connector

Used in LC optical fiber interface to connect SFP modules. Features easy-to-operate modular jack (RJ) latch mechanism. Commonly used in routers.

SC Connector

Used in SC fiber optic interface. Similar to RJ-45 but flatter with copper column contacts instead of thin copper pins.

FC Connector

Used in FC optical fiber interface with metal sleeve reinforcement and turnbuckle fastening. Typically used on ODF side (distribution frames).

ST Connector

Used in ST optical fiber interface with round shell and turnbuckle fastening. Commonly used in fiber distribution frames for 10Base-F connections.

OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM services with professional R&D team support. Services include customized logos, label design, PE bag customization, and carton design.
