SC OM3 SX Fiber Optic Adapter Without Flange Ceramic Sleeve Low Insertion Loss Optical Coupler

SC OM3 SX Fiber Optic Adapter Without Flange Ceramic Sleeve Low Insertion Loss Optical Coupler
SC OM3 SX Fiber Optic Adapter Without Flange Ceramic Sleeve Low Insertion Loss Optical Coupler
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Minimum Order Quantity: 50pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Alternating Loss (dB): ≤ 0.2 Durability: The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels: Single Core, Dual Core, 4 Core Frame Material: Metal Or Plastic
Sleeve Material: Ceramic Or Metal Operating Temperature (℃）: -40 ~ +85
Storage Temperature (℃）: -40 ~ +85
Highlight:

Ceramic Sleeve Fiber Optic Adapter

,

Without Flange Optical Coupler

,

Low Insertion Loss SC Adapter

Product Description

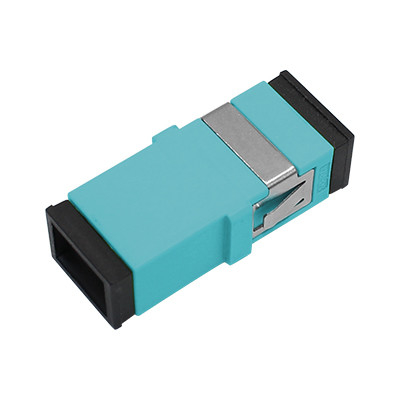

SC OM3 SX Adapter Without Flange Fiber Optic Adapter/Coupler
Precision fiber optic adapter designed to connect SC OM3 SX connectors without flange, ensuring optimal light transmission with minimal signal loss.
SC OM3 SX Fiber Optic Adapter Without Flange Ceramic Sleeve Low Insertion Loss Optical Coupler 0
Product Identification
Zion Code Zion Description
7235086 SC OM3 SX Adapter Without Flange Fiber Optic Adapter/Coupler
Applications
By linking two connectors precisely, fiber optic adapters allow light sources to be transmitted with maximum efficiency and minimal loss. These adapters feature low insertion loss, excellent interchangeability, and reproducibility. Each adapter undergoes functional testing before shipping.
Product Description
Fiber optic adapters implement connections between the same or different fiber optic active connectors in fiber lines, ensuring optical path continuity with minimal loss. They precisely align fiber end faces to maximize light energy transmission from output fibers to receiving fibers.
Also known as couplers, these small devices terminate or link fiber optic cables and connectors between two fiber optic lines.
SC OM3 SX Fiber Optic Adapter Without Flange Ceramic Sleeve Low Insertion Loss Optical Coupler 1
Technical Specifications
Parameter FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC
Operating Wavelength (nm) SM (OS2): 1310-1550
MM (OM1,2,3,4): 850-1300
Insertion Loss (dB) ≤ 0.2
Return Loss (dB) PC ≥45 | UPC ≥50 | APC ≥60 | PC ≥30
Repeatability (dB) ≤ 0.2
Alternating Loss (dB) ≤ 0.2
Durability Change of 500 interpolations < 0.20dB
Number of Channels Single core, Dual core, 4 core
Frame Material Metal or Plastic
Sleeve Material Ceramic or Metal
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +85°C
Related Fiber Optic Adapters
Zion Code Zion Description
7235001LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018FC With Rectangle Flange Fiber Optic Adapter/Coupler
Connector Types
SC OM3 SX Fiber Optic Adapter Without Flange Ceramic Sleeve Low Insertion Loss Optical Coupler 2
LC Connector
Used in LC optical fiber interfaces to connect SFP modules. Features easy-to-operate modular jack (RJ) latch mechanism. Commonly used in routers.
SC OM3 SX Fiber Optic Adapter Without Flange Ceramic Sleeve Low Insertion Loss Optical Coupler 3
SC Connector
SC fiber optic interface resembles RJ-45 but is flatter with copper column contacts instead of thin copper pins.
SC OM3 SX Fiber Optic Adapter Without Flange Ceramic Sleeve Low Insertion Loss Optical Coupler 4
FC Connector
FC optical fiber interface uses metal sleeve external strengthening with turnbuckle fastening. Typically used on ODF distribution frames.
SC OM3 SX Fiber Optic Adapter Without Flange Ceramic Sleeve Low Insertion Loss Optical Coupler 5
ST Connector
ST optical fiber interface features round shell with turnbuckle fastening. Commonly used in fiber distribution frames for 10Base-F connections.
OEM/ODM Services
ZION Communication offers comprehensive OEM/ODM services with professional R&D team support:
  • Customized Logo
  • Label/PE bag/Carton design
