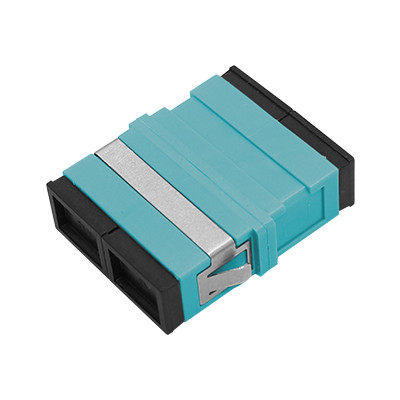

SC OM3 DX Fiber Optic Adapter Without Flange Ceramic Sleeve Low Insertion Loss Coupler

SC OM3 DX Fiber Optic Adapter Without Flange Ceramic Sleeve Low Insertion Loss Coupler
SC OM3 DX Fiber Optic Adapter Without Flange Ceramic Sleeve Low Insertion Loss Coupler
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Minimum Order Quantity: 50pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Alternating Loss (dB): ≤ 0.2 Durability: The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels: Single Core, Dual Core, 4 Core Frame Material: Metal Or Plastic
Sleeve Material: Ceramic Or Metal Operating Temperature (℃）: -40 ~ +85
Storage Temperature (℃）: -40 ~ +85
Highlight:

Without Flange Fiber Optic Adapter

,

Ceramic Sleeve Fiber Optic Coupler

,

Low Insertion Loss SC OM3 DX Adapter

Product Description

SC OM3 DX Adapter Without Flange Fiber Optic Adapter/Coupler
Precision fiber optic adapter designed to connect two fiber optic connectors with minimal signal loss and optimal light transmission.
SC OM3 DX Fiber Optic Adapter Without Flange Ceramic Sleeve Low Insertion Loss Coupler 0 SC OM3 DX Fiber Optic Adapter Without Flange Ceramic Sleeve Low Insertion Loss Coupler 1
Product Identification
Zion Code Zion Description
7235084 SC OM3 DX Adapter Without Flange Fiber Optic Adapter/Coupler
Applications
Fiber optic adapters precisely link two connectors to maximize light transmission while minimizing signal loss. These components feature low insertion loss, excellent interchangeability, and reliable reproducibility. Each adapter undergoes functional testing prior to shipment.
Product Description
Fiber optic adapters (also known as couplers) enable connection between same or different fiber optic connectors in optical pathways. They ensure uninterrupted optical transmission with minimal signal degradation by precisely aligning fiber end faces to optimize light energy coupling between transmitting and receiving fibers.
Hangzhou Zion Communication fiber optic adapters offer:
  • High flame retardancy
  • Low insertion loss
  • High durability
  • Wide operating temperature range
Ideal for telecommunications networks, cable television systems, user loop networks, and local area networks.
SC OM3 DX Adapter Without Flange
SC OM3 DX Fiber Optic Adapter Without Flange Ceramic Sleeve Low Insertion Loss Coupler 2
Technical Specifications
Parameter FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC
Operating Wavelength (nm) SM (OS2): 1310-1550 | MM (OM1,2,3,4): 850-1300
Insertion Loss (dB) ≤ 0.2
Return Loss (dB) PC ≥45 | UPC ≥50 | APC ≥60 | PC ≥30
Repeatability (dB) ≤ 0.2
Alternating Loss (dB) ≤ 0.2
Durability Change of 500 interpolation times is less than 0.20dB
Number of Channels Single core, Dual core, 4 core
Frame Material Metal or Plastic
Sleeve Material Ceramic or Metal
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +85°C
Related Fiber Optic Adapter Products
Zion Code Zion Description
7235001LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018FC With Rectangle Flange Fiber Optic Adapter/Coupler
Connector Types
SC OM3 DX Fiber Optic Adapter Without Flange Ceramic Sleeve Low Insertion Loss Coupler 3
LC Connector
Used in LC fiber optic interfaces to connect SFP modules. Features an easy-to-operate modular jack (RJ) latch mechanism. Commonly used in routers.
SC OM3 DX Fiber Optic Adapter Without Flange Ceramic Sleeve Low Insertion Loss Coupler 4
SC Connector
SC fiber optic interface resembles RJ-45 but is flatter with copper column contacts instead of thin copper pins. Widely used in network applications.
SC OM3 DX Fiber Optic Adapter Without Flange Ceramic Sleeve Low Insertion Loss Coupler 5
FC Connector
FC fiber optic interface features metal sleeve reinforcement with turnbuckle fastening. Typically used on ODF distribution frames.
SC OM3 DX Fiber Optic Adapter Without Flange Ceramic Sleeve Low Insertion Loss Coupler 6
ST Connector
ST fiber optic interface has a round shell with turnbuckle fastening. Commonly used in fiber distribution frames and 10Base-F connections.
OEM/ODM Services
ZION Communication offers comprehensive OEM/ODM services with our professional R&D team:
  • Customized Logo
  • Label/PE bag/Carton design
