SC OM3 DX Fiber Optic Adapter with Ceramic Sleeve Low Insertion Loss and Wide Operating Temperature

SC OM3 DX Fiber Optic Adapter with Ceramic Sleeve Low Insertion Loss and Wide Operating Temperature
SC OM3 DX Fiber Optic Adapter with Ceramic Sleeve Low Insertion Loss and Wide Operating Temperature
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Minimum Order Quantity: 50pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Alternating Loss (dB): ≤ 0.2 Durability: The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels: Single Core, Dual Core, 4 Core Frame Material: Metal Or Plastic
Sleeve Material: Ceramic Or Metal Operating Temperature (℃）: -40 ~ +85
Storage Temperature (℃）: -40 ~ +85
Highlight:

Ceramic Sleeve Fiber Optic Adapter

,

Low Insertion Loss Fiber Optic Coupler

,

Wide Operating Temperature SC OM3 DX Adapter

Product Description

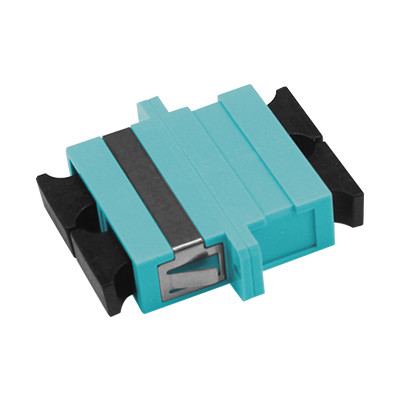

SC OM3 DX Adapter With Flange Fiber Optic Adapter/Coupler
Precision fiber optic adapter designed to connect SC OM3 connectors with flange mounting capability, ensuring optimal light transmission with minimal signal loss.
SC OM3 DX Fiber Optic Adapter with Ceramic Sleeve Low Insertion Loss and Wide Operating Temperature 0
Product Identification
Zion Code Zion Description
7235083 SC OM3 DX Adapter With Flange Fiber Optic Adapter/Coupler
Applications
By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. Each fiber optic adapter is functionally tested before shipping.
Product Description
The fiber optic adapter implements the same or different fiber optic active connectors in the fiber line, making the optical path unblocked with minimal loss. It precisely connects the two end faces of the fiber to emit the light energy output by the fiber and can be coupled to the receiving fiber to the greatest extent.
Fiber optic adapters, also called couplers, are small devices designed to terminate or link fiber optic cables or connectors between two fiber optic lines.
SC OM3 DX Fiber Optic Adapter with Ceramic Sleeve Low Insertion Loss and Wide Operating Temperature 1
Technical Specifications
Parameter FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC
Operating Wavelength (nm) SM (OS2): 1310-1550 | MM (OM1,2,3,4): 850-1300
Insertion Loss (dB) ≤ 0.2
Return Loss (dB) PC ≥45 | UPC ≥50 | APC ≥60 | PC ≥30
Repeatability (dB) ≤ 0.2
Alternating Loss (dB) ≤ 0.2
Durability The change of 500 interpolation times is less than 0.20dB
Number of Channels Single core, Dual core, 4 core
Frame Material Metal or Plastic
Sleeve Material Ceramic or Metal
Operating Temperature (°C) -40 ~ +85
Storage Temperature (°C) -40 ~ +85
Related Fiber Optic Adapter Products
Zion Code Zion Description
7235001 LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002 LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003 LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004 SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005 SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006 SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007 SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008 SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009 SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010 FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011 FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012 SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013 SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014 SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015 SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016 FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017 FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018 FC With Rectangle Flange Fiber Optic Adapter/Coupler
Connector Types
SC OM3 DX Fiber Optic Adapter with Ceramic Sleeve Low Insertion Loss and Wide Operating Temperature 2
LC Connector
Used in LC optical fiber interface to connect the connector of SFP module. Made with easy-to-operate modular jack (RJ) latch mechanism. Commonly used in routers.
SC OM3 DX Fiber Optic Adapter with Ceramic Sleeve Low Insertion Loss and Wide Operating Temperature 3
SC Connector
Used in SC fiber optic interface, similar to RJ-45 interface but flatter. Features a copper column contact instead of thin copper contacts.
SC OM3 DX Fiber Optic Adapter with Ceramic Sleeve Low Insertion Loss and Wide Operating Temperature 4
FC Connector
Used in FC optical fiber interface with metal sleeve external strengthening and turnbuckle fastening method. Typically used on ODF side and distribution frames.
SC OM3 DX Fiber Optic Adapter with Ceramic Sleeve Low Insertion Loss and Wide Operating Temperature 5
ST Connector
Used in ST optical fiber interface, commonly found in fiber distribution frames. Features round shell and turnbuckle fastening method.
OEM/ODM Services
ZION Communication offers comprehensive OEM/ODM services with professional R&D team support:
  • Customized Logo
  • Label/PE bag/Carton design
