SC MM With Legs Fiber Optic Adapter/Coupler with ≤ 0.2dB Alternating Loss Ceramic or Metal Sleeve and Wide Operating Temperature (-40 to +85℃)

SC MM With Legs Fiber Optic Adapter/Coupler with ≤ 0.2dB Alternating Loss Ceramic or Metal Sleeve and Wide Operating Temperature (-40 to +85℃)
SC MM With Legs Fiber Optic Adapter/Coupler with ≤ 0.2dB Alternating Loss Ceramic or Metal Sleeve and Wide Operating Temperature (-40 to +85℃)
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Minimum Order Quantity: 50pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Alternating Loss (dB): ≤ 0.2 Durability: The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels: Single Core, Dual Core, 4 Core Frame Material: Metal Or Plastic
Sleeve Material: Ceramic Or Metal Operating Temperature (℃）: -40 ~ +85
Storage Temperature (℃）: -40 ~ +85
Highlight:

≤ 0.2dB Alternating Loss Fiber Optic Adapter

,

Ceramic or Metal Sleeve Fiber Optic Coupler

,

Wide Operating Temperature SC Adapter

Product Description

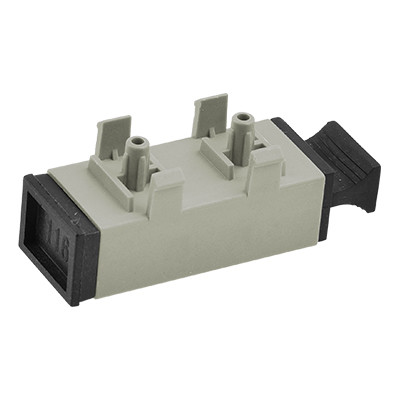

SC MM With Legs Fiber Optic Adapter/Coupler
Precision fiber optic adapter designed to connect SC multimode connectors with legs, ensuring optimal light transmission with minimal signal loss.
SC MM With Legs Fiber Optic Adapter/Coupler with ≤ 0.2dB Alternating Loss Ceramic or Metal Sleeve and Wide Operating Temperature (-40 to +85℃) 0
Product Identification
Zion Code Zion Description
7235082 SC MM With Legs Fiber Optic Adapter/Coupler
Applications
Fiber optic adapters precisely link two connectors to maximize light source transmission and minimize signal loss. These adapters feature low insertion loss, excellent interchangeability, and reproducibility. Each adapter undergoes functional testing before shipping.
Product Description
Fiber optic adapters enable connection between the same or different fiber optic active connectors within fiber lines, ensuring uninterrupted optical pathways with minimal loss. They precisely align fiber end faces to maximize light energy output coupling into receiving fibers while minimizing system impact. These passive components are ideal for telecommunications networks, cable television networks, user loop systems, and local area networks.
Hangzhou Zion Communication adapters offer high flame retardancy, low insertion loss, exceptional durability, and wide operating temperature range.
Fiber optic adapters (also called couplers) are compact devices designed to terminate or link fiber optic cables and connectors between two fiber optic lines.
SC MM With Legs Fiber Optic Adapter/Coupler with ≤ 0.2dB Alternating Loss Ceramic or Metal Sleeve and Wide Operating Temperature (-40 to +85℃) 1
Technical Specifications
Parameter FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC SM (OS2) MM (OM1,2,3,4)
Operating Wavelength (nm) 1310-1550 850-1300
Insertion Loss (dB) ≤ 0.2
Return Loss (dB) PC ≥45 | UPC ≥50 | APC ≥60 | PC ≥30
Repeatability (dB) ≤ 0.2
Alternating Loss (dB) ≤ 0.2
Durability Change of 500 interpolation times is less than 0.20dB
Number of Channels Single core, Dual core, 4 core
Frame Material Metal or Plastic
Sleeve Material Ceramic or Metal
Operating Temperature (°C) -40 ~ +85
Storage Temperature (°C) -40 ~ +85
Related Fiber Optic Adapter Products
Zion Code Zion Description
7235001LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018FC With Rectangle Flange Fiber Optic Adapter/Coupler
Fiber Optic Connector Types
SC MM With Legs Fiber Optic Adapter/Coupler with ≤ 0.2dB Alternating Loss Ceramic or Metal Sleeve and Wide Operating Temperature (-40 to +85℃) 2
LC Connector
Used in LC optical fiber interfaces to connect SFP modules. Features an easy-to-operate modular jack (RJ) latch mechanism. Commonly used in routers.
SC MM With Legs Fiber Optic Adapter/Coupler with ≤ 0.2dB Alternating Loss Ceramic or Metal Sleeve and Wide Operating Temperature (-40 to +85℃) 3
SC Connector
SC fiber optic interface resembles RJ-45 but is flatter with copper column contacts instead of thin copper pins.
SC MM With Legs Fiber Optic Adapter/Coupler with ≤ 0.2dB Alternating Loss Ceramic or Metal Sleeve and Wide Operating Temperature (-40 to +85℃) 4
FC Connector
Features metal sleeve reinforcement with turnbuckle fastening. Typically used on ODF distribution frames.
SC MM With Legs Fiber Optic Adapter/Coupler with ≤ 0.2dB Alternating Loss Ceramic or Metal Sleeve and Wide Operating Temperature (-40 to +85℃) 5
ST Connector
Round shell design with turnbuckle fastening. Commonly used in fiber distribution frames for 10Base-F connections.
OEM/ODM Services
ZION Communication offers comprehensive OEM/ODM services with professional R&D team support. Services include customized logos, labels, PE bags, and carton design.
