SC MM SX Fiber Optic Adapter with Flange and Ceramic or Metal Sleeve for ≤ 0.2dB Alternating Loss and Wide Operating Temperature

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Alternating Loss (dB):	≤ 0.2	Durability:	The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels:	Single Core, Dual Core, 4 Core	Frame Material:	Metal Or Plastic
Sleeve Material:	Ceramic Or Metal	Operating Temperature (℃）:	-40 ~ +85
Storage Temperature (℃）:	-40 ~ +85
Highlight:	SC MM SX Adapter With Flange , SC MM SX Fiber Optic Coupler

Product Description

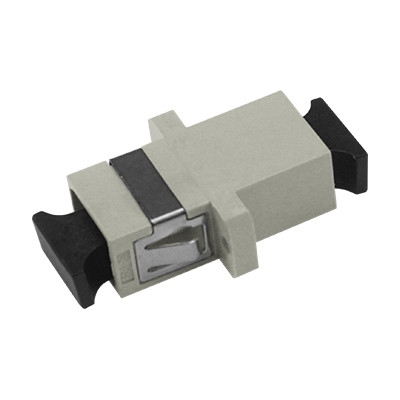

SC MM SX Adapter With Flange Fiber Optic Adapter/Coupler

Precision fiber optic adapter designed to connect SC multimode SX connectors with flange mounting. This high-performance coupler ensures optimal light transmission with minimal signal loss.

Product Identification

Zion Code	Zion Description
7235078	SC MM SX Adapter With Flange Fiber Optic Adapter/Coupler

Applications

Fiber optic adapters precisely link two connectors to maximize light source transmission and minimize signal loss. These components feature low insertion loss, excellent interchangeability, and reliable reproducibility. Each adapter undergoes functional testing before shipment.

Product Description

Fiber optic adapters (also called couplers) connect fiber optic cables or connectors between two fiber optic lines. They ensure uninterrupted optical pathways with minimal loss by precisely aligning fiber end faces to maximize light energy coupling between transmitting and receiving fibers.

Hangzhou Zion Communication's adapters offer high flame retardancy, low insertion loss, exceptional durability, and wide operating temperature range, making them ideal for telecommunications networks, cable television systems, user loop networks, and local area networks.

Technical Specifications

Parameter	FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC
Operating Wavelength (nm)	SM (OS2): 1310-1550 \| MM (OM1,2,3,4): 850-1300
Insertion Loss (dB)	≤ 0.2
Return Loss (dB)	PC ≥45 \| UPC ≥50 \| APC ≥60 \| PC ≥30
Repeatability (dB)	≤ 0.2
Alternating Loss (dB)	≤ 0.2
Durability	Change of 500 interpolation times is less than 0.20dB
Number of Channels	Single core, Dual core, 4 core
Frame Material	Metal or Plastic
Sleeve Material	Ceramic or Metal
Operating Temperature (°C)	-40 to +85
Storage Temperature (°C)	-40 to +85

Related Products

Zion Code	Zion Description
7235071	SC APC DX Adapter With Flange Fiber Optic Adapter/Coupler
7235072	SC APC SX Adapter With Flange Fiber Optic Adapter/Coupler
7235073	SC APC SX Adapter Without Flange Fiber Optic Adapter/Coupler
7235074	SC APC SX Welding Adapter With Flange Fiber Optic Adapter/Coupler
7235075	SC APC SX Welding Adapter Without Flange Fiber Optic Adapter/Coupler
7235076	SC APC With Legs Fiber Optic Adapter/Coupler
7235077	SC MM DX Adapter With Flange Fiber Optic Adapter/Coupler
7235078	SC MM SX Adapter With Flange Fiber Optic Adapter/Coupler
7235079	SC MM SX Adapter Without Flange Fiber Optic Adapter/Coupler

Connector Types

LC Connector: Used in LC optical fiber interface to connect SFP modules. Features easy-to-operate modular jack (RJ) latch mechanism. Commonly used in routers.

SC Connector: Used in SC fiber optic interface, similar to RJ-45 interface but flatter with copper column contacts instead of thin copper contacts.

FC Connector: Used in FC optical fiber interface with metal sleeve external strengthening and turnbuckle fastening. Typically used on ODF side (distribution frames).

ST Connector: Used in ST optical fiber interface with round shell and turnbuckle fastening. Commonly used in fiber distribution frames for 10Base-F connections.

OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM services with professional R&D team support. Customization options include:

Customized Logo
Label/PE bag/Carton design
