SC MM DX Fiber Optic Adapter with Flange Ceramic Sleeve Low Insertion Loss Wide Operating Temperature Coupler

SC MM DX Fiber Optic Adapter with Flange Ceramic Sleeve Low Insertion Loss Wide Operating Temperature Coupler
SC MM DX Fiber Optic Adapter with Flange Ceramic Sleeve Low Insertion Loss Wide Operating Temperature Coupler
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Minimum Order Quantity: 50pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Alternating Loss (dB): ≤ 0.2 Durability: The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels: Single Core, Dual Core, 4 Core Frame Material: Metal Or Plastic
Sleeve Material: Ceramic Or Metal Operating Temperature (℃）: -40 ~ +85
Storage Temperature (℃）: -40 ~ +85
Highlight:

Ceramic Sleeve Fiber Optic Adapter

,

Low Insertion Loss Fiber Optic Coupler

,

Wide Operating Temperature SC MM DX Adapter

Product Description

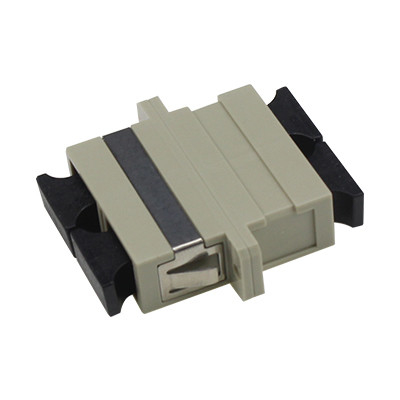

SC MM DX Adapter With Flange Fiber Optic Adapter/Coupler
Precision fiber optic adapter designed to connect SC multimode duplex connectors with flange mounting. Ensures optimal light transmission with minimal signal loss.
SC MM DX Fiber Optic Adapter with Flange Ceramic Sleeve Low Insertion Loss Wide Operating Temperature Coupler 0
Zion Product Information
Zion Code Zion Description
7235077 SC MM DX Adapter With Flange Fiber Optic Adapter/Coupler
Applications
Fiber optic adapters precisely link two connectors to maximize light transmission and minimize signal loss. These components feature low insertion loss, excellent interchangeability, and high reproducibility. Each adapter undergoes functional testing before shipment.
Product Description
Fiber optic adapters enable connection between same or different fiber optic connectors in transmission lines, ensuring uninterrupted optical pathways with minimal loss. They precisely align fiber end faces to efficiently couple light energy from transmitting to receiving fibers.
Also known as couplers, these devices terminate or link fiber optic cables and connectors between two fiber lines. Hangzhou Zion Communication adapters offer high flame retardancy, low insertion loss, exceptional durability, and wide operating temperature range.
SC MM DX Fiber Optic Adapter with Flange Ceramic Sleeve Low Insertion Loss Wide Operating Temperature Coupler 1
Technical Specifications
Parameter FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC
SM (OS2) MM (OM1,2,3,4)
Operating Wavelength (nm) 1310-1550 | 850-1300
Insertion Loss (dB) ≤ 0.2
Return Loss (dB) PC ≥45 | UPC ≥50 | APC ≥60 | PC ≥30
Repeatability (dB) ≤ 0.2
Alternating Loss (dB) ≤ 0.2
Durability The change of 500 interpolation times is less than 0.20dB
Number of Channels Single core, Dual core, 4 core
Frame Material Metal or Plastic
Sleeve Material Ceramic or Metal
Operating Temperature (°C) -40 ~ +85
Storage Temperature (°C) -40 ~ +85
Related Fiber Optic Adapters
7235001
LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002
LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003
LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004
SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005
SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006
SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007
SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
Fiber Connector Types
SC MM DX Fiber Optic Adapter with Flange Ceramic Sleeve Low Insertion Loss Wide Operating Temperature Coupler 2
LC Connector
Used in LC optical fiber interfaces to connect SFP modules. Features an easy-to-operate modular jack (RJ) latch mechanism. Commonly used in routers.
SC MM DX Fiber Optic Adapter with Flange Ceramic Sleeve Low Insertion Loss Wide Operating Temperature Coupler 3
SC Connector
SC fiber optic interface resembles RJ-45 but is flatter with distinct internal contacts. Copper columns indicate SC fiber interface.
SC MM DX Fiber Optic Adapter with Flange Ceramic Sleeve Low Insertion Loss Wide Operating Temperature Coupler 4
FC Connector
FC fiber optic interface uses metal sleeve reinforcement with turnbuckle fastening. Typically used on ODF side and distribution frames.
SC MM DX Fiber Optic Adapter with Flange Ceramic Sleeve Low Insertion Loss Wide Operating Temperature Coupler 5
ST Connector
ST fiber optic interface features round shell with turnbuckle fastening. Commonly used in fiber distribution frames and 10Base-F connections.
OEM/ODM Services
Zion Communication offers comprehensive OEM/ODM services with professional R&D team support. Customization options include:
  • Customized Logo
  • Label/PE bag/Carton design
