SC APC SX Welding Fiber Optic Adapter with Flange and Ceramic Sleeve for Precise Optical Coupling

SC APC SX Welding Fiber Optic Adapter with Flange and Ceramic Sleeve for Precise Optical Coupling
SC APC SX Welding Fiber Optic Adapter with Flange and Ceramic Sleeve for Precise Optical Coupling
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Minimum Order Quantity: 50pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Alternating Loss (dB): ≤ 0.2 Durability: The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels: Single Core, Dual Core, 4 Core Frame Material: Metal Or Plastic
Sleeve Material: Ceramic Or Metal Operating Temperature (℃）: -40 ~ +85
Storage Temperature (℃）: -40 ~ +85
Highlight:

SC APC SX Fiber Optic Coupler

Product Description

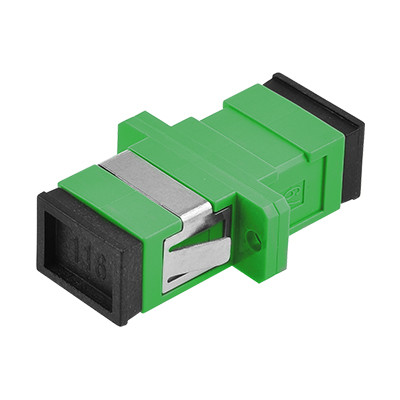

SC APC SX Welding Fiber Optic Adapter / Coupler With Flange
Precision fiber optic adapter designed to connect SC APC SX connectors with flange mounting for secure installation.
SC APC SX Welding Fiber Optic Adapter with Flange and Ceramic Sleeve for Precise Optical Coupling 0
Product Identification
Zion Code Zion Description
7235074 SC APC SX Welding Adapter With Flange Fiber Optic Adapter/Coupler
Applications
Fiber optic adapters precisely link two connectors to maximize light transmission while minimizing signal loss. These components feature low insertion loss, excellent interchangeability, and reliable reproducibility. Every adapter undergoes functional testing prior to shipment.
Product Description
This fiber optic adapter enables connection between identical or different fiber optic connectors within fiber optic lines. It ensures uninterrupted optical pathways with minimal signal degradation by precisely aligning fiber end faces to optimize light energy transmission from transmitting fibers to receiving fibers.
Also known as a fiber optic coupler, this compact device terminates or links fiber optic cables and connectors between two fiber optic lines.
SC APC SX Welding Fiber Optic Adapter with Flange and Ceramic Sleeve for Precise Optical Coupling 1
Technical Specifications
Parameter FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC
SM (OS2) MM (OM1,2,3,4)
Operating Wavelength (nm) 1310-1550 | 850-1300
Insertion Loss (dB) ≤ 0.2
Return Loss (dB) PC ≥45 | UPC ≥50 | APC ≥60 | PC ≥30
Repeatability (dB) ≤ 0.2
Alternating Loss (dB) ≤ 0.2
Durability The change of 500 interpolation times is less than 0.20dB
Number of Channels Single core, Dual core, 4 core
Frame Material Metal or Plastic
Sleeve Material Ceramic or Metal
Operating Temperature (°C) -40 ~ +85
Storage Temperature (°C) -40 ~ +85
Related Fiber Optic Adapter Products
Zion Code Zion Description
7235001 LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002 LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003 LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004 SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005 SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006 SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007 SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008 SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009 SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010 FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011 FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012 SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013 SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014 SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015 SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016 FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017 FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018 FC With Rectangle Flange Fiber Optic Adapter/Coupler
Connector Types
LC Connector: Used in LC optical fiber interface to connect SFP modules. Features easy-to-operate modular jack (RJ) latch mechanism, commonly used in routers.
SC APC SX Welding Fiber Optic Adapter with Flange and Ceramic Sleeve for Precise Optical Coupling 2
SC Connector: Used in SC fiber optic interface, similar in appearance to RJ-45 but with distinct internal contact design.
SC APC SX Welding Fiber Optic Adapter with Flange and Ceramic Sleeve for Precise Optical Coupling 3
FC Connector: Used in FC optical fiber interface with metal sleeve external reinforcement and turnbuckle fastening mechanism, typically used on ODF distribution frames.
SC APC SX Welding Fiber Optic Adapter with Flange and Ceramic Sleeve for Precise Optical Coupling 4
ST Connector: Used in ST optical fiber interface with round shell and turnbuckle fastening, commonly used in fiber distribution frames.
SC APC SX Welding Fiber Optic Adapter with Flange and Ceramic Sleeve for Precise Optical Coupling 5
OEM/ODM Services
ZION Communication offers comprehensive OEM/ODM services supported by our professional R&D team with extensive experience in custom solutions.
  • Customized Logo
  • Label/PE bag/Carton design
