SC APC SX Fiber Optic Adapter with Ceramic Sleeve and Low Insertion Loss for Wide Operating Temperature Range

SC APC SX Fiber Optic Adapter with Ceramic Sleeve and Low Insertion Loss for Wide Operating Temperature Range
SC APC SX Fiber Optic Adapter with Ceramic Sleeve and Low Insertion Loss for Wide Operating Temperature Range
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Minimum Order Quantity: 50pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Alternating Loss (dB): ≤ 0.2 Durability: The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels: Single Core, Dual Core, 4 Core Frame Material: Metal Or Plastic
Sleeve Material: Ceramic Or Metal Operating Temperature (℃）: -40 ~ +85
Storage Temperature (℃）: -40 ~ +85
Highlight:

Ceramic Sleeve Fiber Optic Adapter

,

Low Insertion Loss Fiber Optic Coupler

,

Wide Operating Temperature SC APC SX Adapter

Product Description

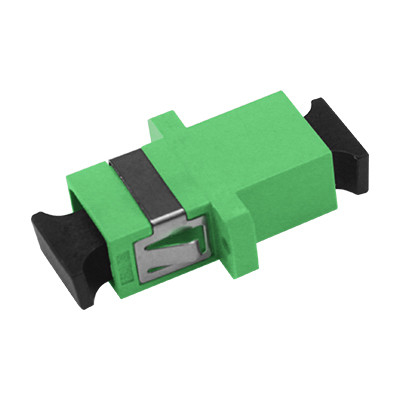

SC APC SX Adapter With Flange Fiber Optic Adapter/Coupler

Precision fiber optic adapter designed to connect SC APC connectors with flange mounting for secure installation.

SC APC SX Fiber Optic Adapter with Ceramic Sleeve and Low Insertion Loss for Wide Operating Temperature Range 0
Product Identification
Zion Code Zion Description
7235072 SC APC SX Adapter With Flange Fiber Optic Adapter/Coupler
Applications

Fiber optic adapters precisely link two connectors to maximize light transmission while minimizing signal loss. These components feature low insertion loss, excellent interchangeability, and reliable reproducibility. Each adapter undergoes functional testing prior to shipment.

Product Description

This fiber optic adapter enables connection between identical or different fiber optic connectors within fiber lines. It ensures uninterrupted optical pathways with minimal signal degradation by precisely aligning fiber end faces to optimize light energy transmission from output fibers to receiving fibers.

Key advantages include:

  • High flame retardancy for safety compliance
  • Low insertion loss for optimal performance
  • Exceptional durability for long-term reliability
  • Wide operating temperature range for diverse environments

Ideal for telecommunications networks, cable television systems, user loop configurations, and local area networks.

SC APC SX Fiber Optic Adapter with Ceramic Sleeve and Low Insertion Loss for Wide Operating Temperature Range 1
Technical Specifications
Parameter FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC
Operating Wavelength (nm) SM (OS2): 1310-1550 | MM (OM1,2,3,4): 850-1300
Insertion Loss (dB) ≤ 0.2
Return Loss (dB) PC ≥45 | UPC ≥50 | APC ≥60 | PC ≥30
Repeatability (dB) ≤ 0.2
Alternating Loss (dB) ≤ 0.2
Durability Change of 500 interpolations < 0.20dB
Number of Channels Single core, Dual core, 4 core
Frame Material Metal or Plastic
Sleeve Material Ceramic or Metal
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +85°C
Related Fiber Optic Adapters
Zion Code Zion Description
7235001 LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002 LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003 LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004 SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005 SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006 SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007 SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008 SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009 SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010 FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011 FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012 SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013 SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014 SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015 SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016 FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017 FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018 FC With Rectangle Flange Fiber Optic Adapter/Coupler
Connector Types
SC APC SX Fiber Optic Adapter with Ceramic Sleeve and Low Insertion Loss for Wide Operating Temperature Range 2
LC Connector
Used in LC fiber optic interfaces to connect SFP modules. Features easy-to-operate modular jack (RJ) latch mechanism. Commonly used in routers.
SC APC SX Fiber Optic Adapter with Ceramic Sleeve and Low Insertion Loss for Wide Operating Temperature Range 3
SC Connector
SC fiber optic interface resembles RJ-45 but is flatter with copper column contacts instead of thin copper pins.
SC APC SX Fiber Optic Adapter with Ceramic Sleeve and Low Insertion Loss for Wide Operating Temperature Range 4
FC Connector
FC fiber optic interface features metal sleeve reinforcement with turnbuckle fastening. Typically used on ODF distribution frames.
SC APC SX Fiber Optic Adapter with Ceramic Sleeve and Low Insertion Loss for Wide Operating Temperature Range 5
ST Connector
ST fiber optic interface features round shell with turnbuckle fastening. Commonly used in fiber distribution frames for 10Base-F connections.
OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM services with our professional R&D team, including:

  • Customized logo implementation
  • Label/PE bag/carton design customization
