LC UPC QUAD Welding Symmetry-type Fiber Optic Adapter Without Flange for Precise Optical Coupling

LC UPC QUAD Welding Symmetry-type Fiber Optic Adapter Without Flange for Precise Optical Coupling
LC UPC QUAD Welding Symmetry-type Fiber Optic Adapter Without Flange for Precise Optical Coupling
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Minimum Order Quantity: 50pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Alternating Loss (dB): ≤ 0.2 Durability: The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels: Single Core, Dual Core, 4 Core Frame Material: Metal Or Plastic
Sleeve Material: Ceramic Or Metal Operating Temperature (℃）: -40 ~ +85
Storage Temperature (℃）: -40 ~ +85
Highlight:

Welding Symmetry-type Fiber Optic Adapter

,

Without Flange Optical Coupler

,

QUAD Channel LC UPC Adapter

Product Description

LC UPC QUAD Welding Symmetry-type Adapter Without Flange
This fiber optic adapter provides precise connection between LC UPC QUAD connectors, ensuring optimal light transmission with minimal signal loss. Designed for welding symmetry applications without flange, it offers reliable performance in various networking environments.

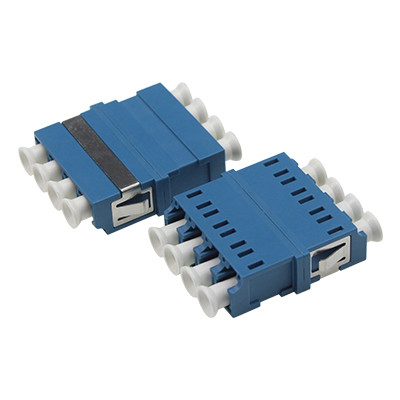

LC UPC QUAD Welding Symmetry-type Fiber Optic Adapter Without Flange for Precise Optical Coupling 0
Product Identification
Zion Code Zion Description
7235069 LC UPC QUAD Welding Symmetry-type Adapter Without Flange
Applications
Fiber optic adapters precisely link two connectors to maximize light source transmission while minimizing signal loss. These components feature low insertion loss, excellent interchangeability, and reliable reproducibility. Each adapter undergoes functional testing before shipment to ensure quality performance.
Product Description
This fiber optic adapter enables connection between the same or different fiber optic active connectors within fiber lines. It ensures uninterrupted optical pathways with minimal signal degradation by precisely aligning fiber end faces to optimize light energy transmission from transmitting fibers to receiving fibers.
Hangzhou Zion Communication fiber optic adapters provide:
  • High flame retardancy for enhanced safety
  • Low insertion loss for optimal signal quality
  • High durability for long-term reliability
  • Wide operating temperature range for versatile applications
Also known as fiber optic couplers, these small devices terminate or link fiber optic cables and connectors between two fiber optic lines.

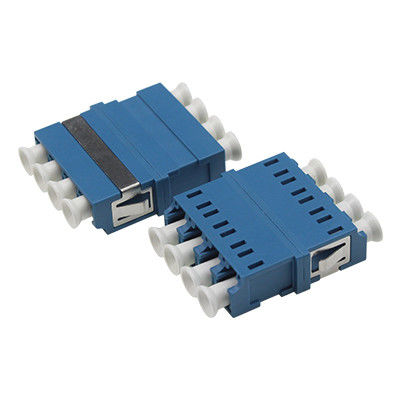

LC UPC QUAD Welding Symmetry-type Fiber Optic Adapter Without Flange for Precise Optical Coupling 1
Technical Specifications
Parameter FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC
Operating Wavelength (nm) SM (OS2): 1310-1550 | MM (OM1,2,3,4): 850-1300
Insertion Loss (dB) ≤ 0.2
Return Loss (dB) PC ≥45 | UPC ≥50 | APC ≥60 | PC ≥30
Repeatability (dB) ≤ 0.2
Alternating Loss (dB) ≤ 0.2
Durability The change of 500 interpolation times is less than 0.20dB
Number of Channels Single core, Dual core, 4 core
Frame Material Metal or Plastic
Sleeve Material Ceramic or Metal
Operating Temperature (°C) -40 ~ +85
Storage Temperature (°C) -40 ~ +85
Related LC-LC Fiber Optic Adapters
Zion Code Zion Description
7235001 LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002 LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003 LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004 SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005 SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006 SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007 SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008 SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009 SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010 FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011 FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012 SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013 SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014 SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015 SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016 FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017 FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018 FC With Rectangle Flange Fiber Optic Adapter/Coupler
Connector Types
This adapter is compatible with various connector types including LC, SC, FC, and ST interfaces.
OEM/ODM Services Available
ZION Communication offers comprehensive OEM/ODM services with our professional R&D team:
  • Customized Logo
  • Label/PE bag/Carton design

Tag:

fiber optic adapter,

lc adapter,

Fiber Fast Connector
