LC UPC Quad Welding Symmetry-type Fiber Optic Adapter With Flange for Precise Optical Coupling

LC UPC Quad Welding Symmetry-type Fiber Optic Adapter With Flange for Precise Optical Coupling
LC UPC Quad Welding Symmetry-type Fiber Optic Adapter With Flange for Precise Optical Coupling
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Minimum Order Quantity: 50pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Alternating Loss (dB): ≤ 0.2 Durability: The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels: Single Core, Dual Core, 4 Core Frame Material: Metal Or Plastic
Sleeve Material: Ceramic Or Metal Operating Temperature (℃）: -40 ~ +85
Storage Temperature (℃）: -40 ~ +85
Highlight:

Welding Symmetry-type Fiber Optic Adapter

,

With Flange Optical Coupler

,

Quad Channel LC UPC Adapter

Product Description

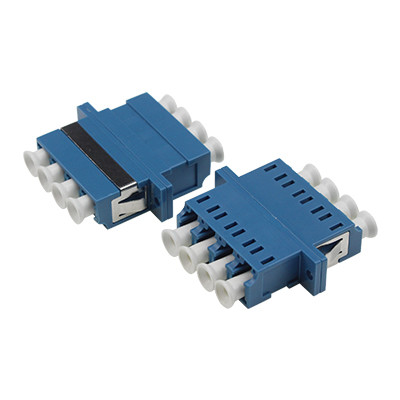

LC UPC QUAD Welding Symmetry-type Adapter With Flange
Precision fiber optic adapter designed to connect LC UPC QUAD connectors with welding symmetry and flange mounting for optimal performance in telecommunications and networking applications.
LC UPC Quad Welding Symmetry-type Fiber Optic Adapter With Flange for Precise Optical Coupling 0
Product Specifications
Zion Code: 7235068
Zion Description: LC UPC QUAD Welding Symmetry-type Adapter With Flange
Applications
By linking two connectors precisely, fiber optic adapters allow light sources to be transmitted with maximum efficiency while minimizing signal loss. These adapters feature low insertion loss, excellent interchangeability, and reliable reproducibility. Each adapter undergoes functional testing before shipping to ensure quality performance.
Product Description
Fiber optic adapters implement connections between the same or different fiber optic active connectors in fiber lines. They ensure optical path continuity with minimal loss by precisely aligning fiber end faces to maximize light energy transmission from output fibers to receiving fibers.
Also known as couplers, these small devices are designed to terminate or link fiber optic cables or connectors between two fiber optic lines.
LC UPC Quad Welding Symmetry-type Fiber Optic Adapter With Flange for Precise Optical Coupling 1
Technical Characteristics
Parameter FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC
SM (OS2) MM (OM1,2,3,4)
Operating Wavelength (nm) 1310-1550 | 850-1300
Insertion Loss (dB) ≤ 0.2
Return Loss (dB) PC ≥45 | UPC ≥50 | APC ≥60 | PC ≥30
Repeatability (dB) ≤ 0.2
Alternating Loss (dB) ≤ 0.2
Durability The change of 500 interpolation times is less than 0.20dB
Number of Channels Single core, Dual core, 4 core
Frame Material Metal or Plastic
Sleeve Material Ceramic or Metal
Operating Temperature (°C) -40 ~ +85
Storage Temperature (°C) -40 ~ +85
LC UPC Quad Welding Symmetry-type Fiber Optic Adapter With Flange for Precise Optical Coupling 2
Related LC-LC Fiber Optic Adapters
Zion Code Zion Description
7235001 LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002 LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003 LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004 SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005 SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006 SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007 SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008 SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009 SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010 FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011 FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012 SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013 SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014 SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015 SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016 FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017 FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018 FC With Rectangle Flange Fiber Optic Adapter/Coupler
Connector Types
LC UPC Quad Welding Symmetry-type Fiber Optic Adapter With Flange for Precise Optical Coupling 3
LC Connector: Used in LC optical fiber interface to connect SFP modules. Features an easy-to-operate modular jack (RJ) latch mechanism. Commonly used in routers.
LC UPC Quad Welding Symmetry-type Fiber Optic Adapter With Flange for Precise Optical Coupling 4
SC Connector: Used in SC fiber optic interface, similar in appearance to RJ-45 but flatter with copper column contacts instead of thin copper pins.
LC UPC Quad Welding Symmetry-type Fiber Optic Adapter With Flange for Precise Optical Coupling 5
FC Connector: Used in FC optical fiber interface with metal sleeve reinforcement and turnbuckle fastening. Typically used on ODF distribution frames.
LC UPC Quad Welding Symmetry-type Fiber Optic Adapter With Flange for Precise Optical Coupling 6
ST Connector: Used in ST optical fiber interface with round shell and turnbuckle fastening. Commonly used in fiber distribution frames for 10Base-F connections.
OEM/ODM Services
ZION Communication offers comprehensive OEM/ODM services with our professional R&D team, including:
  • Customized Logo
  • Label/PE bag/Carton design
