LC UPC QUAD One-piece Fiber Optic Adapter Without Flange with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range

LC UPC QUAD One-piece Fiber Optic Adapter Without Flange with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range
LC UPC QUAD One-piece Fiber Optic Adapter Without Flange with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Minimum Order Quantity: 50pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Alternating Loss (dB): ≤ 0.2 Durability: The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels: Single Core, Dual Core, 4 Core Frame Material: Metal Or Plastic
Sleeve Material: Ceramic Or Metal Operating Temperature (℃）: -40 ~ +85
Storage Temperature (℃）: -40 ~ +85
Highlight:

≤ 0.2dB Alternating Loss Fiber Optic Adapter

,

Ceramic or Metal Sleeve Optical Coupler

,

Wide Operating Temperature LC UPC Adapter

Product Description

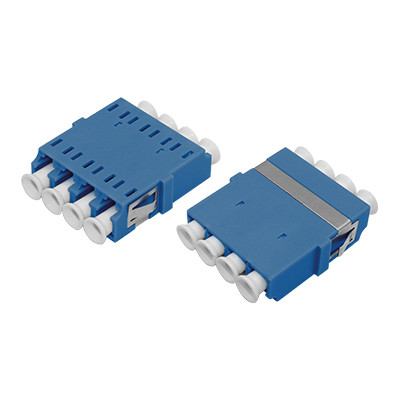

LC UPC QUAD One-piece Adapter Without Flange
Precision fiber optic adapter designed to connect LC UPC QUAD connectors with maximum light transmission efficiency and minimal signal loss.
LC UPC QUAD One-piece Fiber Optic Adapter Without Flange with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range 0
Product Identification
Zion Code Zion Description
7235067 LC UPC QUAD One-piece Adapter Without Flange
Applications
Fiber optic adapters precisely link two connectors to maximize light transmission while minimizing loss. These adapters feature low insertion loss, excellent interchangeability, and reliable reproducibility. Each adapter undergoes functional testing before shipment to ensure optimal performance.
Product Description
This fiber optic adapter enables connection between same or different fiber optic active connectors within fiber lines. It ensures uninterrupted optical pathways with minimal signal degradation by precisely aligning fiber end faces to maximize light energy output and coupling efficiency.
Fiber optic adapters (also called couplers) are compact devices designed to terminate or link fiber optic cables and connectors between two fiber optic lines.
LC UPC QUAD One-piece Fiber Optic Adapter Without Flange with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range 1
Technical Specifications
Parameter FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC SM (OS2) MM (OM1,2,3,4)
Operating Wavelength (nm) 1310-1550 850-1300
Insertion Loss (dB) ≤ 0.2
Return Loss (dB) PC ≥45 | UPC ≥50 | APC ≥60 PC ≥30
Repeatability (dB) ≤ 0.2
Alternating Loss (dB) ≤ 0.2
Durability The change of 500 interpolation times is less than 0.20dB
Number of Channels Single core, Dual core, 4 core
Frame Material Metal or Plastic
Sleeve Material Ceramic or Metal
Operating Temperature (°C) -40 to +85
Storage Temperature (°C) -40 to +85
Related LC-LC Fiber Optic Adapters
Zion Code Zion Description
7235001LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018FC With Rectangle Flange Fiber Optic Adapter/Coupler
Connector Types
LC UPC QUAD One-piece Fiber Optic Adapter Without Flange with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range 2
LC Connector
Used in LC optical fiber interface to connect SFP modules. Features easy-to-operate modular jack (RJ) latch mechanism. Commonly used in routers.
LC UPC QUAD One-piece Fiber Optic Adapter Without Flange with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range 3
SC Connector
Used in SC fiber optic interface, similar to RJ-45 but flatter with copper column contacts instead of thin copper pins.
LC UPC QUAD One-piece Fiber Optic Adapter Without Flange with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range 4
FC Connector
Used in FC optical fiber interface with metal sleeve external strengthening and turnbuckle fastening. Typically used on ODF distribution frames.
LC UPC QUAD One-piece Fiber Optic Adapter Without Flange with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range 5
ST Connector
Used in ST optical fiber interface with round shell and turnbuckle fastening. Commonly used in fiber distribution frames for 10Base-F connections.
OEM/ODM Services
ZION Communication offers comprehensive OEM/ODM services with our professional R&D team, including:
  • Customized Logo
  • Label/PE bag/Carton design
Inquire Now
