| Place of Origin: | CHINA |
|---|---|
| Brand Name: | HELLOSIGNAL® OR OEM |
| Minimum Order Quantity: | 50pcs |
| Packaging Details: | 10 PC / Plastic Bag |
| Delivery Time: | Normally 25 days after received the deposit. |
| Payment Terms: | T/T |
| Supply Ability: | no limit |
| Alternating Loss (dB): | ≤ 0.2 | Durability: | The Change Of 500 Interpolation Times Is Less Than 0.20dB |
|---|---|---|---|
| Number Of Channels: | Single Core, Dual Core, 4 Core | Frame Material: | Metal Or Plastic |
| Sleeve Material: | Ceramic Or Metal | Operating Temperature (℃）: | -40 ~ +85 |
| Storage Temperature (℃）: | -40 ~ +85 | ||
| High Light: | LC UPC QUAD Fiber Optic Adapter,LC UPC QUAD Adapter With Flange |
||
SC LC FC ST/APC UPC SX/DX/QUAD 0.9/2.0/3.0mm Welding Symmetry Plastic/Hybrid OPTIC ADAPTER/COUPLER
| Zion Code | Zion Description | |||||||
| 7235066 | LC UPC QUAD One-piece Adapter With Flange | |||||||
Applications
| ● By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. And each fiber optic Adapter is functionally tested before shipping. | ||||||||
Description
| ● The fiber optic adapter is to implement the same or different fiber optic active connectors in the fiber line. It makes the optical path unblocked with little loss. It precisely connects the two end faces of the fiber to emit the light energy output by the fiber. It can be coupled to the receiving fiber to the greatest extent and minimize the impact on the system due to its intervention in the optical link.It belongs to the field of optical passive components and can be used in telecommunications networks, cable television networks, user loop systems, and local area networks.The adapters supplied by Hangzhou Zion Communication Co., Ltd. have high flame retardancy, low insertion loss, high durability, and wide operating temperature. It is your best choice. | ||||||||
| ● Fiber optic adapter, also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines. |

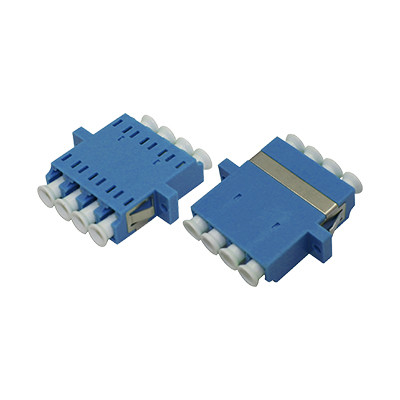

LC UPC QUAD One-piece Adapter With Flange
Characteristics:
| Parameter | FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC | |||||||
| SM (OS2) |
MM (OM1,2,3,4) |
|||||||
| Operating Wavelength(nm) | 1310-1550 | 850-1300 | ||||||
| Insertion Loss (dB) | ≤ 0.2 | |||||||
| Return Loss (dB) | PC ≥45 | UPC ≥50 | APC ≥60 | PC ≥30 | ||||
| Repeatability (dB) | ≤ 0.2 | |||||||
| Alternating loss (dB) | ≤ 0.2 | |||||||
| Durability | The change of 500 interpolation times is less than 0.20dB | |||||||
| Number of channels | Single core, Dual core, 4 core | |||||||
| Frame material | Metal or Plastic | |||||||
| Sleeve material | Ceramic or Metal | |||||||
| Operating Temperature (℃) | -40 ~ +85 | |||||||
| Storage Temperature (℃) | -40 ~ +85 | |||||||
Zion Communication's Hot LC-LC Fiber Optical Adapter
| Zion Code | Zion Description | |||||||
| 7235001 | LC APC DX Asymmetric Welding Adapter With Flange | |||||||
| 7235002 | LC APC DX Asymmetric Welding Adapter Without Flange | |||||||
| 7235003 | LC APC DX High-Low Adapter | |||||||
| 7235004 | LC APC DX One-piece Adapetr With Flange | |||||||
| 7235005 | LC APC DX One-piece Adapetr Without Flange | |||||||
| 7235006 | LC APC DX Welding Symmetry-type Adapter With Flange | |||||||
| 7235007 | LC APC DX Welding Symmetry-type Adapter Without Flange | |||||||
| 7235008 | LC APC QUAD Asymmetric Welding Adapter With Flange | |||||||
| 7235009 | LC APC QUAD Asymmetric Welding Adapter Without Flange | |||||||
| 7235010 | LC APC QUAD One-piece Adapter With Flange | |||||||
| 7235011 | LC APC QUAD One-piece Adapter Without Flange | |||||||
| 7235012 | LC APC QUAD Welding Symmetry-type Adapter With Flange | |||||||
| 7235013 | LC APC QUAD Welding Symmetry-type Adapter Without Flange | |||||||
| 7235014 | LC APC SX Adapter Without Flange | |||||||
| 7235015 | LC DX Metal Adapter | |||||||
| 7235016 | LC MM DX Asymmetric Welding Adapter With Flange | |||||||
| 7235017 | LC MM DX Asymmetric Welding Adapter Without Flange | |||||||
| 7235018 | LC MM DX One-piece Adapetr With Flange | |||||||
| 7235019 | LC MM DX One-piece Adapetr Without Flange | |||||||
| 7235020 | LC MM DX Welding Symmetry-type Adapter With Flange | |||||||
| 7235021 | LC MM DX Welding Symmetry-type Adapter Without Flange | |||||||
| 7235022 | LC MM QUAD Asymmetric Welding Adapter With Flange | |||||||
| 7235023 | LC MM QUAD Asymmetric Welding Adapter Without Flange | |||||||
| 7235024 | LC MM QUAD One-piece Adapter With Flange | |||||||
| 7235025 | LC MM QUAD One-piece Adapter Without Flange | |||||||
| 7235026 | LC MM QUAD Welding Symmetry-type Adapter With Flange | |||||||
| 7235027 | LC MM QUAD Welding Symmetry-type Adapter Without Flange | |||||||
| 7235028 | LC MM SX Adapter Without Flange | |||||||
| 7235029 | LC OM3 DX Asymmetric Welding Adapter With Flange | |||||||
| 7235030 | LC OM3 DX Asymmetric Welding Adapter Without Flange | |||||||
| 7235031 | LC OM3 DX High-Low Adapter | |||||||
| 7235032 | LC OM3 DX One-piece Adapetr With Flange | |||||||
| 7235033 | LC OM3 DX One-piece Adapetr Without Flange | |||||||
| 7235034 | LC OM3 DX Welding Symmetry-type Adapter With Flange | |||||||
| 7235035 | LC OM3 DX Welding Symmetry-type Adapter Without Flange | |||||||
| 7235036 | LC OM3 QUAD Asymmetric Welding Adapter With Flange | |||||||
| 7235037 | LC OM3 QUAD Asymmetric Welding Adapter Without Flange | |||||||
| 7235038 | LC OM3 QUAD One-piece Adapter With Flange | |||||||
| 7235039 | LC OM3 QUAD One-piece Adapter With Flange-p | |||||||
| 7235040 | LC OM3 QUAD Welding Symmetry-type Adapter With Flange | |||||||
| 7235041 | LC OM3 QUAD Welding Symmetry-type Adapter Without Flange | |||||||
| 7235042 | LC OM3 SX Adapter Without Flange | |||||||
| 7235043 | LC OM4 DX Asymmetric Welding Adapter With Flange | |||||||
| 7235044 | LC OM4 DX Asymmetric Welding Adapter Without Flange | |||||||
| 7235045 | LC OM4 DX High-Low Adapter | |||||||
| 7235046 | LC OM4 DX One-piece Adapetr With Flange | |||||||
| 7235047 | LC OM4 DX One-piece Adapetr Without Flange | |||||||
| 7235048 | LC OM4 DX Welding Symmetry-type Adapter With Flange | |||||||
| 7235049 | LC OM4 DX Welding Symmetry-type Adapter Without Flange | |||||||
| 7235050 | LC OM4 QUAD Asymmetric Welding Adapter With Flange | |||||||
| 7235051 | LC OM4 QUAD Asymmetric Welding Adapter Without Flange | |||||||
| 7235052 | LC OM4 QUAD One-piece Adapter With Flange | |||||||
| 7235053 | LC OM4 QUAD One-piece Adapter Without Flange | |||||||
| 7235054 | LC OM4 QUAD Welding Symmetry-type Adapter With Flange | |||||||
| 7235055 | LC OM4 QUAD Welding Symmetry-type Adapter Without Flange | |||||||
| 7235056 | LC OM4 SX Adapter Without Flange | |||||||
| 7235057 | LC UPC DX Asymmetric Welding Adapter With Flange | |||||||
| 7235058 | LC UPC DX Asymmetric Welding Adapter Without Flange | |||||||
| 7235059 | LC UPC DX High-Low Adapter | |||||||
| 7235060 | LC UPC DX One-piece Adapetr With Flange | |||||||
| 7235061 | LC UPC DX One-piece Adapetr Without Flange | |||||||
| 7235062 | LC UPC DX Welding Symmetry-type Adapter With Flange | |||||||
| 7235063 | LC UPC DX Welding Symmetry-type Adapter Without Flange | |||||||
| 7235064 | LC UPC QUAD Asymmetric Welding Adapter With Flange | |||||||
| 7235065 | LC UPC QUAD Asymmetric Welding Adapter Without Flange | |||||||
| 7235066 | LC UPC QUAD One-piece Adapter With Flange | |||||||
| 7235067 | LC UPC QUAD One-piece Adapter Without Flange | |||||||
| 7235068 | LC UPC QUAD Welding Symmetry-type Adapter With Flange | |||||||
| 7235069 | LC UPC QUAD Welding Symmetry-type Adapter Without Flange | |||||||
| 7235070 | LC UPC SX Adapter Without Flange | |||||||
| Connector Type | LC, SC, FC, ST | |||||||
|
Used in LC optical fiber interface to connect the connector of SFP module. It is made by the easy-to-operate modular jack (RJ) latch mechanism. (Routers are commonly used) | |||||||
|
Used in SC fiber optic interface, it looks very similar to the RJ-45 interface, but the SC interface is flatter, and the obvious difference is the inner contact. If it is 8 thin copper contacts, then It is an RJ-45 interface, if it is a copper column, it is an SC fiber interface. | |||||||
|
Used in FC optical fiber interface, the external strengthening method is a metal sleeve, and the fastening method is a turnbuckle. Generally used on the ODF side (most used on the distribution frame) | |||||||
|
Used in ST optical fiber interface, commonly used in optical fiber distribution frame, the shell is round, and the fastening method is turnbuckle. (For 10Base-F connection, the connector is usually ST type. Commonly used in optical fiber distribution frame) | |||||||
OEM/ODM service for you
| ZION Communication has rich expiriences in producing OEM/ODM cases becaused of Profession R & D team. | |||||||
| • Customized Logo | |||||||
| • Label/PE bag/Carton design |
