Home > Products> Optical Fiber System> LC UPC QUAD Asymmetric Welding Fiber Optic Adapter with Flange - ≤0.2dB Loss, Ceramic/Metal Sleeve, -40 to +85℃

LC UPC QUAD Asymmetric Welding Fiber Optic Adapter with Flange - ≤0.2dB Loss, Ceramic/Metal Sleeve, -40 to +85℃

LC UPC QUAD Asymmetric Welding Fiber Optic Adapter with Flange - ≤0.2dB Loss, Ceramic/Metal Sleeve, -40 to +85℃
LC UPC QUAD Asymmetric Welding Fiber Optic Adapter with Flange - ≤0.2dB Loss, Ceramic/Metal Sleeve, -40 to +85℃
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Minimum Order Quantity: 50pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Alternating Loss (dB): ≤ 0.2 Durability: The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels: Single Core, Dual Core, 4 Core Frame Material: Metal Or Plastic
Sleeve Material: Ceramic Or Metal Operating Temperature (℃）: -40 ~ +85
Storage Temperature (℃）: -40 ~ +85
Highlight:

≤0.2dB Alternating Loss Fiber Optic Adapter

,

Ceramic or Metal Sleeve Optical Coupler

,

Wide Operating Temperature LC UPC Adapter

Product Description

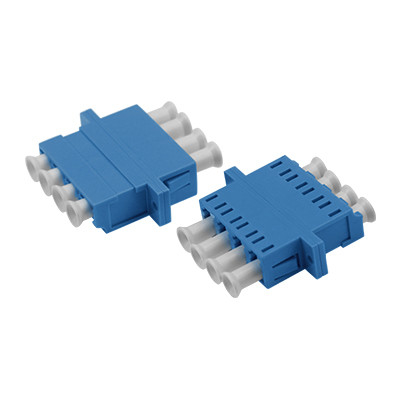

LC UPC QUAD Asymmetric Welding Adapter With Flange
Precision fiber optic adapter designed to connect LC UPC QUAD connectors with asymmetric welding configuration and integrated flange for secure mounting.

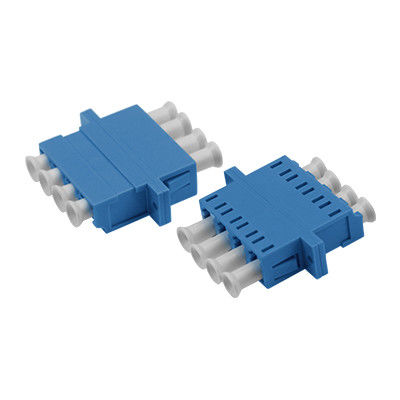

LC UPC QUAD Asymmetric Welding Fiber Optic Adapter with Flange - ≤0.2dB Loss, Ceramic/Metal Sleeve, -40 to +85℃ 0
Product Identification
Zion Code Zion Description
7235064 LC UPC QUAD Asymmetric Welding Adapter With Flange
Applications
Fiber optic adapters precisely link two connectors to maximize light transmission while minimizing signal loss. These components feature low insertion loss, excellent interchangeability, and reliable reproducibility. Each adapter undergoes functional testing before shipment to ensure optimal performance.
Product Description
This fiber optic adapter enables connection between same or different fiber optic active connectors within fiber lines, ensuring uninterrupted optical pathways with minimal loss. By precisely aligning fiber end faces, it maximizes light energy output coupling to receiving fibers while minimizing system impact from optical link intervention.
As part of optical passive components, these adapters serve telecommunications networks, cable television networks, user loop systems, and local area networks. Hangzhou Zion Communication adapters offer high flame retardancy, low insertion loss, exceptional durability, and wide operating temperature range.
Also known as fiber optic couplers, these compact devices terminate or link fiber optic cables and connectors between two fiber optic lines.
LC UPC QUAD Asymmetric Welding Fiber Optic Adapter with Flange - ≤0.2dB Loss, Ceramic/Metal Sleeve, -40 to +85℃ 1
Technical Specifications
Parameter FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC
SM (OS2) MM (OM1,2,3,4)
Operating Wavelength (nm) 1310-1550 | 850-1300
Insertion Loss (dB) ≤ 0.2
Return Loss (dB) PC ≥45 | UPC ≥50 | APC ≥60 | PC ≥30
Repeatability (dB) ≤ 0.2
Alternating Loss (dB) ≤ 0.2
Durability Change of 500 interpolation times is less than 0.20dB
Number of Channels Single core, Dual core, 4 core
Frame Material Metal or Plastic
Sleeve Material Ceramic or Metal
Operating Temperature (°C) -40 ~ +85
Storage Temperature (°C) -40 ~ +85
Related LC-LC Fiber Optic Adapters
Zion Code Zion Description
7235001 LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002 LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003 LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004 SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005 SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006 SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007 SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008 SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009 SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010 FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011 FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012 SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013 SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014 SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015 SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016 FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017 FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018 FC With Rectangle Flange Fiber Optic Adapter/Coupler
Connector Types
LC UPC QUAD Asymmetric Welding Fiber Optic Adapter with Flange - ≤0.2dB Loss, Ceramic/Metal Sleeve, -40 to +85℃ 2
LC Connector: Used in LC optical fiber interfaces to connect SFP module connectors. Features easy-to-operate modular jack (RJ) latch mechanism. Commonly used in routers.
LC UPC QUAD Asymmetric Welding Fiber Optic Adapter with Flange - ≤0.2dB Loss, Ceramic/Metal Sleeve, -40 to +85℃ 3
SC Connector: Used in SC fiber optic interfaces. Similar appearance to RJ-45 but with copper contact pins instead of thin copper contacts. Flatter interface design.
LC UPC QUAD Asymmetric Welding Fiber Optic Adapter with Flange - ≤0.2dB Loss, Ceramic/Metal Sleeve, -40 to +85℃ 4
FC Connector: Used in FC optical fiber interfaces. Features metal sleeve external reinforcement and turnbuckle fastening mechanism. Typically used on ODF side (distribution frames).
LC UPC QUAD Asymmetric Welding Fiber Optic Adapter with Flange - ≤0.2dB Loss, Ceramic/Metal Sleeve, -40 to +85℃ 5
ST Connector: Used in ST optical fiber interfaces. Commonly found in fiber distribution frames. Features round shell design with turnbuckle fastening. Often used for 10Base-F connections.
OEM/ODM Services
ZION Communication offers comprehensive OEM/ODM services supported by our professional R&D team with extensive experience in custom manufacturing solutions.
  • Customized Logo Implementation
  • Label/PE Bag/Carton Design Customization
