Home > Products> Optical Fiber System> LC UPC DX High-Low Fiber Optic Adapter with ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, and Wide Operating Temperature (-40 to +85℃)

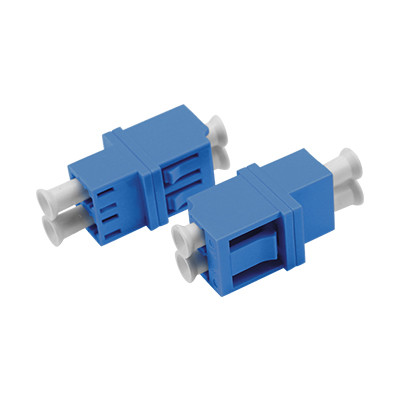

LC UPC DX High-Low Fiber Optic Adapter with ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, and Wide Operating Temperature (-40 to +85℃)

LC UPC DX High-Low Fiber Optic Adapter with ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, and Wide Operating Temperature (-40 to +85℃)
LC UPC DX High-Low Fiber Optic Adapter with ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, and Wide Operating Temperature (-40 to +85℃)
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Minimum Order Quantity: 50pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Alternating Loss (dB): ≤ 0.2 Durability: The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels: Single Core, Dual Core, 4 Core Frame Material: Metal Or Plastic
Sleeve Material: Ceramic Or Metal Operating Temperature (℃）: -40 ~ +85
Storage Temperature (℃）: -40 ~ +85
Highlight:

≤ 0.2dB Alternating Loss Fiber Optic Adapter

,

Ceramic or Metal Sleeve Optical Coupler

,

Wide Operating Temperature LC UPC Adapter

Product Description

LC UPC DX High-Low Adapter
Precision fiber optic adapter designed to connect LC UPC connectors with minimal signal loss and maximum transmission efficiency.
LC UPC DX High-Low Fiber Optic Adapter with ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, and Wide Operating Temperature (-40 to +85℃) 0 LC UPC DX High-Low Fiber Optic Adapter with ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, and Wide Operating Temperature (-40 to +85℃) 1
Product Identification
Zion Code Zion Description
7235059 LC UPC DX High-Low Adapter
Applications
Fiber optic adapters precisely link two connectors to maximize light transmission while minimizing signal loss. These components feature low insertion loss, excellent interchangeability, and reliable reproducibility. Every adapter undergoes functional testing prior to shipment.
Product Description
Fiber optic adapters enable connection between same or different fiber optic connectors within optical lines, ensuring uninterrupted optical pathways with minimal signal degradation. By precisely aligning fiber end faces, they optimize light energy transmission from output fibers to receiving fibers. Hangzhou Zion Communication adapters offer high flame retardancy, low insertion loss, extended durability, and wide operating temperature range.
Technical Specifications
LC UPC DX High-Low Fiber Optic Adapter with ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, and Wide Operating Temperature (-40 to +85℃) 2
Parameter FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC SM (OS2) MM (OM1,2,3,4)
Operating Wavelength (nm) 1310-1550 850-1300
Insertion Loss (dB) ≤ 0.2
Return Loss (dB) PC ≥45 | UPC ≥50 | APC ≥60 PC ≥30
Repeatability (dB) ≤ 0.2
Alternating Loss (dB) ≤ 0.2
Durability Change of 500 interpolations < 0.20dB
Number of Channels Single core, Dual core, 4 core
Frame Material Metal or Plastic
Sleeve Material Ceramic or Metal
Operating Temperature (°C) -40 to +85
Storage Temperature (°C) -40 to +85
Related Fiber Optic Adapters
Zion Code Zion Description
7235001LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018FC With Rectangle Flange Fiber Optic Adapter/Coupler
Connector Types
LC UPC DX High-Low Fiber Optic Adapter with ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, and Wide Operating Temperature (-40 to +85℃) 3
LC Connector - Used in LC optical fiber interfaces to connect SFP modules. Features easy-to-operate modular jack latch mechanism, commonly used in routers.
LC UPC DX High-Low Fiber Optic Adapter with ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, and Wide Operating Temperature (-40 to +85℃) 4
SC Connector - Used in SC fiber optic interfaces, resembling RJ-45 but with copper contact pins instead of thin copper contacts.
LC UPC DX High-Low Fiber Optic Adapter with ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, and Wide Operating Temperature (-40 to +85℃) 5
FC Connector - Features metal sleeve external reinforcement with turnbuckle fastening, typically used on ODF distribution frames.
LC UPC DX High-Low Fiber Optic Adapter with ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, and Wide Operating Temperature (-40 to +85℃) 6
ST Connector - Round shell design with turnbuckle fastening, commonly used in fiber distribution frames for 10Base-F connections.
OEM/ODM Services
ZION Communication offers comprehensive OEM/ODM services with professional R&D team support. Customization options include logo application, label design, PE bag specifications, and carton packaging design.
