Product Overview

Precision fiber optic adapter designed for connecting LC UPC connectors in asymmetric welding configurations without flange mounting.

Product Identification

Zion Code	Zion Description

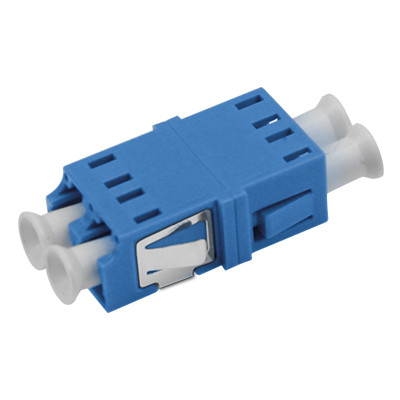

7235058	LC UPC DX Asymmetric Welding Adapter Without Flange

Applications

Precisely links two fiber optic connectors to maximize light transmission and minimize signal loss
Features low insertion loss, excellent interchangeability, and superior reproducibility
Each adapter undergoes functional testing before shipment to ensure optimal performance

Product Description

This fiber optic adapter enables connection between same or different fiber optic active connectors in optical lines, ensuring uninterrupted optical pathways with minimal signal degradation.

The adapter precisely aligns fiber end faces to maximize light energy output transmission and optimize coupling efficiency to receiving fibers, while minimizing system impact during optical link intervention.

As part of optical passive components, it serves telecommunications networks, cable television networks, user loop systems, and local area networks.

Hangzhou Zion Communication adapters offer high flame retardancy, low insertion loss, exceptional durability, and wide operating temperature range.

Also known as fiber optic couplers, these compact devices terminate or link fiber optic cables and connectors between optical lines.

Technical Specifications

Parameter	FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC	SM (OS2)	MM (OM1,2,3,4)
Operating Wavelength (nm)		1310-1550	850-1300
Insertion Loss (dB)	≤ 0.2
Return Loss (dB)	PC ≥45 \| UPC ≥50 \| APC ≥60	PC ≥30
Repeatability (dB)	≤ 0.2
Alternating Loss (dB)	≤ 0.2
Durability	Change of 500 interpolation times < 0.20dB
Number of Channels	Single core, Dual core, 4 core
Frame Material	Metal or Plastic
Sleeve Material	Ceramic or Metal
Operating Temperature (°C)	-40 to +85
Storage Temperature (°C)	-40 to +85
