Product Overview

Fiber optic adapter designed for LC OM4 QUAD connections with welding symmetry-type configuration and no flange.

Product Identification

Zion Code	Zion Description

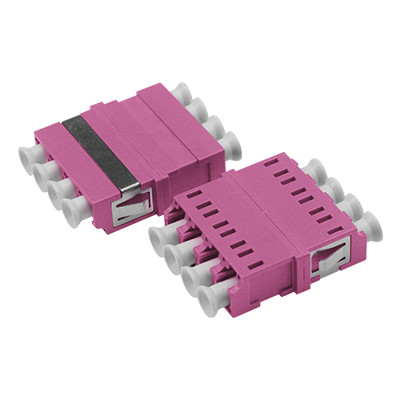

7235055	LC OM4 QUAD Welding Symmetry-type Adapter Without Flange

Applications

Fiber optic adapters precisely link two connectors to maximize light transmission while minimizing signal loss. These components feature low insertion loss, excellent interchangeability, and reliable reproducibility. Each adapter undergoes functional testing prior to shipment.

Product Description

Fiber optic adapters enable connection between same or different fiber optic active connectors within fiber lines, ensuring uninterrupted optical pathways with minimal signal degradation. By precisely aligning fiber end faces, they maximize light energy transmission from output fibers to receiving fibers while minimizing system impact. These passive optical components serve telecommunications networks, cable television networks, user loop systems, and local area networks.

Hangzhou Zion Communication adapters offer high flame retardancy, low insertion loss, exceptional durability, and wide operating temperature range.

Also known as couplers, fiber optic adapters are compact devices designed to terminate or link fiber optic cables and connectors between fiber optic lines.

Technical Specifications

Parameter	FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC	SM (OS2)	MM (OM1,2,3,4)
Operating Wavelength (nm)		1310-1550	850-1300
Insertion Loss (dB)	≤ 0.2
Return Loss (dB)	PC ≥45 \| UPC ≥50 \| APC ≥60 \| PC ≥30
Repeatability (dB)	≤ 0.2
Alternating Loss (dB)	≤ 0.2
Durability	Change of 500 interpolations < 0.20dB
Number of Channels	Single core, Dual core, 4 core
Frame Material	Metal or Plastic
Sleeve Material	Ceramic or Metal
Operating Temperature (°C)	-40 to +85
Storage Temperature (°C)	-40 to +85

Related LC-LC Fiber Optic Adapters

Zion Code	Zion Description
7235001	LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002	LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003	LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004	SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005	SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006	SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007	SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008	SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009	SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010	FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011	FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012	SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013	SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014	SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015	SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016	FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017	FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018	FC With Rectangle Flange Fiber Optic Adapter/Coupler

Connector Types

LC Connector

Used in LC optical fiber interfaces to connect SFP modules. Features easy-to-operate modular jack (RJ) latch mechanism. Commonly used in routers.

SC Connector

SC fiber optic interface resembles RJ-45 but is flatter with copper column contacts instead of thin copper contacts. Commonly used in various networking applications.

FC Connector

FC fiber optic interface features metal sleeve reinforcement with turnbuckle fastening. Typically used on ODF side and distribution frames.

ST Connector

ST fiber optic interface features round shell with turnbuckle fastening. Commonly used in fiber distribution frames and 10Base-F connections.

OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM services with professional R&D team support. Customization options include:

Customized Logo
Label/PE bag/Carton design

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Alternating Loss (dB):	≤ 0.2	Durability:	The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels:	Single Core, Dual Core, 4 Core	Frame Material:	Metal Or Plastic
Sleeve Material:	Ceramic Or Metal	Operating Temperature (℃）:	-40 ~ +85
Storage Temperature (℃）:	-40 ~ +85
Highlight:	≤ 0.2dB Alternating Loss Fiber Optic Adapter , Ceramic or Metal Sleeve Optical Coupler , Wide Operating Temperature LC Adapter

LC OM4 QUAD Welding Symmetry-type Fiber Optic Adapter Without Flange with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range

≤ 0.2dB Alternating Loss Fiber Optic Adapter

Ceramic or Metal Sleeve Optical Coupler

Wide Operating Temperature LC Adapter

fiber optic adapter,

lc adapter,

Fiber Fast Connector

SC-FC SX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss Ceramic or Metal Sleeve for Wide Temperature Range (-40 to +85℃)

SC-FC DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Wide Operating Temperature (-40 to +85℃)

FC SX Big D-Type Fiber Optic Adapter with 1310-1550 nm Wavelength, ≤ 0.2 dB Insertion Loss, and -40 to +85 ℃ Temperature Range

FC Rectangle Flange Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Wide Operating Temperature Optical Coupler

SC-ST SX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss Ceramic or Metal Sleeve and Wide Operating Temperature

FC SX Rectangle Flange Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Wide Operating Temperature

SC-LC SX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Temperature Range

FC-ST DX Hybrid Fiber Optic Adapter with ≤ 0.2dB Insertion Loss and Ceramic or Metal Sleeve for Wide Operating Temperature (-40 to +85℃)
