LC OM4 QUAD One-piece Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Operating Temperature

LC OM4 QUAD One-piece Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Operating Temperature
LC OM4 QUAD One-piece Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Operating Temperature
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Minimum Order Quantity: 50pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Alternating Loss (dB): ≤ 0.2 Durability: The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels: Single Core, Dual Core, 4 Core Frame Material: Metal Or Plastic
Sleeve Material: Ceramic Or Metal Operating Temperature (℃）: -40 ~ +85
Storage Temperature (℃）: -40 ~ +85
Highlight:

≤ 0.2dB Alternating Loss Fiber Optic Adapter

,

Ceramic or Metal Sleeve Optical Coupler

,

Wide Operating Temperature LC Adapter

Product Description

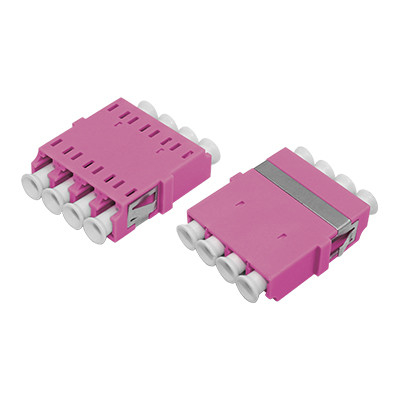

LC OM4 QUAD One-piece Adapter Without Flange
Product Overview
Precision fiber optic adapter designed for connecting LC OM4 QUAD connectors without flange, ensuring optimal light transmission with minimal loss.
LC OM4 QUAD One-piece Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Operating Temperature 0
Product Identification
Zion Code Zion Description
7235053 LC OM4 QUAD One-piece Adapter Without Flange
Applications
By linking two connectors precisely, fiber optic adapters allow light sources to be transmitted efficiently while minimizing loss. These adapters feature low insertion loss, excellent interchangeability, and reproducibility. Each adapter undergoes functional testing before shipping.
Product Description
Fiber optic adapters implement connections between the same or different fiber optic active connectors in fiber lines, ensuring optical path continuity with minimal loss. They precisely connect fiber end faces to maximize light energy transmission and coupling efficiency while minimizing system impact. These passive components are suitable for telecommunications networks, cable television networks, user loop systems, and local area networks.
Hangzhou Zion Communication adapters feature high flame retardancy, low insertion loss, high durability, and wide operating temperature range.
Also known as couplers, fiber optic adapters are compact devices designed to terminate or link fiber optic cables and connectors between two fiber optic lines.
LC OM4 QUAD One-piece Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Operating Temperature 1
Technical Specifications
Parameter FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC SM (OS2) MM (OM1,2,3,4)
Operating Wavelength (nm) 1310-1550 850-1300
Insertion Loss (dB) ≤ 0.2
Return Loss (dB) PC ≥45 | UPC ≥50 | APC ≥60 | PC ≥30
Repeatability (dB) ≤ 0.2
Alternating Loss (dB) ≤ 0.2
Durability Change of 500 interpolation times is less than 0.20dB
Number of Channels Single core, Dual core, 4 core
Frame Material Metal or Plastic
Sleeve Material Ceramic or Metal
Operating Temperature (°C) -40 ~ +85
Storage Temperature (°C) -40 ~ +85
Related LC-LC Fiber Optic Adapters
Zion Code Zion Description
7235001LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018FC With Rectangle Flange Fiber Optic Adapter/Coupler
Connector Types
LC OM4 QUAD One-piece Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Operating Temperature 2
LC Connector: Used in LC optical fiber interface to connect SFP modules. Features easy-to-operate modular jack latch mechanism. Commonly used in routers.
LC OM4 QUAD One-piece Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Operating Temperature 3
SC Connector: Used in SC fiber optic interface, similar to RJ-45 but flatter with copper column contacts instead of thin copper pins.
LC OM4 QUAD One-piece Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Operating Temperature 4
FC Connector: Features metal sleeve external strengthening with turnbuckle fastening. Typically used on ODF side (distribution frames).
LC OM4 QUAD One-piece Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Operating Temperature 5
ST Connector: Round shell design with turnbuckle fastening. Commonly used in fiber distribution frames and 10Base-F connections.
OEM/ODM Services
ZION Communication offers comprehensive OEM/ODM services with professional R&D team support:
  • Customized Logo
  • Label/PE bag/Carton design
