LC OM4 QUAD Asymmetric Welding Fiber Optic Adapter with Flange - ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, Wide Operating Temperature

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Alternating Loss (dB):	≤ 0.2	Durability:	The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels:	Single Core, Dual Core, 4 Core	Frame Material:	Metal Or Plastic
Sleeve Material:	Ceramic Or Metal	Operating Temperature (℃）:	-40 ~ +85
Storage Temperature (℃）:	-40 ~ +85
Highlight:	LC OM4 QUAD Adapter With Flange

Product Description

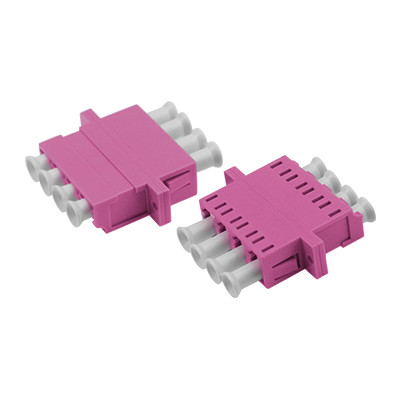

LC OM4 QUAD Asymmetric Welding Adapter With Flange

Fiber Optic Adapter Overview

SC LC FC ST/APC UPC SX/DX/QUAD 0.9/2.0/3.0mm Welding Symmetry Plastic/Hybrid OPTIC ADAPTER/COUPLER

Product Details

Zion Code: 7235050
Zion Description: LC OM4 QUAD Asymmetric Welding Adapter With Flange

Applications

Precisely links two connectors to maximize light transmission and minimize signal loss
Features low insertion loss, excellent interchangeability, and high reproducibility
Each adapter undergoes functional testing before shipping

Product Description

Enables connection of same or different fiber optic active connectors in fiber lines
Ensures uninterrupted optical path with minimal signal loss
Precisely aligns fiber end faces to maximize light energy transmission
Minimizes impact on optical link system performance
Ideal for telecommunications networks, cable television networks, user loop systems, and local area networks
Features high flame retardancy, low insertion loss, high durability, and wide operating temperature range

Fiber optic adapters (also called couplers) are compact devices designed to terminate or link fiber optic cables and connectors between two fiber optic lines.

Technical Specifications

Parameter	FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC	SM (OS2)	MM (OM1,2,3,4)
Operating Wavelength(nm)		1310-1550	850-1300
Insertion Loss (dB)	≤ 0.2
Return Loss (dB)	PC ≥45 \| UPC ≥50 \| APC ≥60	PC ≥30
Repeatability (dB)	≤ 0.2
Alternating loss (dB)	≤ 0.2
Durability	The change of 500 interpolation times is less than 0.20dB
Number of channels	Single core, Dual core, 4 core
Frame material	Metal or Plastic
Sleeve material	Ceramic or Metal
Operating Temperature (℃)	-40 ~ +85
Storage Temperature (℃)	-40 ~ +85

Related LC-LC Fiber Optical Adapters

Zion Code	Zion Description
7235001	LC APC DX Asymmetric Welding Adapter With Flange
7235002	LC APC DX Asymmetric Welding Adapter Without Flange
7235003	LC APC DX High-Low Adapter
7235004	LC APC DX One-piece Adapetr With Flange
7235005	LC APC DX One-piece Adapetr Without Flange
7235006	LC APC DX Welding Symmetry-type Adapter With Flange
7235007	LC APC DX Welding Symmetry-type Adapter Without Flange
7235008	LC APC QUAD Asymmetric Welding Adapter With Flange
7235009	LC APC QUAD Asymmetric Welding Adapter Without Flange
7235010	LC APC QUAD One-piece Adapter With Flange
7235011	LC APC QUAD One-piece Adapter Without Flange
7235012	LC APC QUAD Welding Symmetry-type Adapter With Flange
7235013	LC APC QUAD Welding Symmetry-type Adapter Without Flange
7235014	LC APC SX Adapter Without Flange
7235015	LC DX Metal Adapter
7235016	LC MM DX Asymmetric Welding Adapter With Flange
7235017	LC MM DX Asymmetric Welding Adapter Without Flange
7235018	LC MM DX One-piece Adapetr With Flange
7235019	LC MM DX One-piece Adapetr Without Flange
7235020	LC MM DX Welding Symmetry-type Adapter With Flange
7235021	LC MM DX Welding Symmetry-type Adapter Without Flange
7235022	LC MM QUAD Asymmetric Welding Adapter With Flange
7235023	LC MM QUAD Asymmetric Welding Adapter Without Flange
7235024	LC MM QUAD One-piece Adapter With Flange
7235025	LC MM QUAD One-piece Adapter Without Flange
7235026	LC MM QUAD Welding Symmetry-type Adapter With Flange
7235027	LC MM QUAD Welding Symmetry-type Adapter Without Flange
7235028	LC MM SX Adapter Without Flange
7235029	LC OM3 DX Asymmetric Welding Adapter With Flange
7235030	LC OM3 DX Asymmetric Welding Adapter Without Flange
7235031	LC OM3 DX High-Low Adapter
7235032	LC OM3 DX One-piece Adapetr With Flange
7235033	LC OM3 DX One-piece Adapetr Without Flange
7235034	LC OM3 DX Welding Symmetry-type Adapter With Flange
7235035	LC OM3 DX Welding Symmetry-type Adapter Without Flange
7235036	LC OM3 QUAD Asymmetric Welding Adapter With Flange
7235037	LC OM3 QUAD Asymmetric Welding Adapter Without Flange
7235038	LC OM3 QUAD One-piece Adapter With Flange
7235039	LC OM3 QUAD One-piece Adapter With Flange-p
7235040	LC OM3 QUAD Welding Symmetry-type Adapter With Flange
7235041	LC OM3 QUAD Welding Symmetry-type Adapter Without Flange
7235042	LC OM3 SX Adapter Without Flange
7235043	LC OM4 DX Asymmetric Welding Adapter With Flange
7235044	LC OM4 DX Asymmetric Welding Adapter Without Flange
7235045	LC OM4 DX High-Low Adapter
7235046	LC OM4 DX One-piece Adapetr With Flange
7235047	LC OM4 DX One-piece Adapetr Without Flange
7235048	LC OM4 DX Welding Symmetry-type Adapter With Flange
7235049	LC OM4 DX Welding Symmetry-type Adapter Without Flange
7235050	LC OM4 QUAD Asymmetric Welding Adapter With Flange
7235051	LC OM4 QUAD Asymmetric Welding Adapter Without Flange
7235052	LC OM4 QUAD One-piece Adapter With Flange
7235053	LC OM4 QUAD One-piece Adapter Without Flange
7235054	LC OM4 QUAD Welding Symmetry-type Adapter With Flange
7235055	LC OM4 QUAD Welding Symmetry-type Adapter Without Flange
7235056	LC OM4 SX Adapter Without Flange
7235057	LC UPC DX Asymmetric Welding Adapter With Flange
7235058	LC UPC DX Asymmetric Welding Adapter Without Flange
7235059	LC UPC DX High-Low Adapter
7235060	LC UPC DX One-piece Adapetr With Flange
7235061	LC UPC DX One-piece Adapetr Without Flange
7235062	LC UPC DX Welding Symmetry-type Adapter With Flange
7235063	LC UPC DX Welding Symmetry-type Adapter Without Flange
7235064	LC UPC QUAD Asymmetric Welding Adapter With Flange
7235065	LC UPC QUAD Asymmetric Welding Adapter Without Flange
7235066	LC UPC QUAD One-piece Adapter With Flange
7235067	LC UPC QUAD One-piece Adapter Without Flange
7235068	LC UPC QUAD Welding Symmetry-type Adapter With Flange
7235069	LC UPC QUAD Welding Symmetry-type Adapter Without Flange
7235070	LC UPC SX Adapter Without Flange

Connector Types

LC Connector

Used in LC optical fiber interface to connect SFP modules. Features easy-to-operate modular jack latch mechanism. Commonly used in routers.

SC Connector

Used in SC fiber optic interface, similar to RJ-45 but flatter. Identified by copper column contacts. Commonly used in networking.

FC Connector

Used in FC optical fiber interface with metal sleeve and turnbuckle fastening. Typically used on ODF distribution frames.

ST Connector

Used in ST optical fiber interface with round shell and turnbuckle fastening. Commonly used in fiber distribution frames and 10Base-F connections.

OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM services with professional R&D team support.

Customized Logo
Label/PE bag/Carton design
