Home > Products> Optical Fiber System> LC OM4 DX One-piece Fiber Optic Adapter with ≤ 0.2dB Alternating Loss Ceramic or Metal Sleeve and Wide Operating Temperature

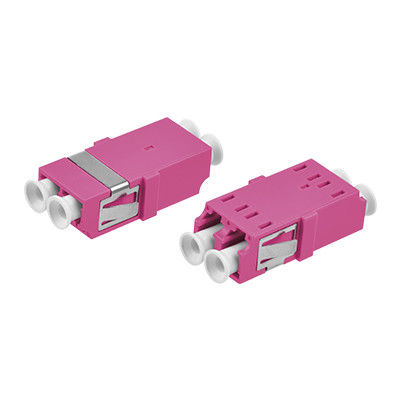

LC OM4 DX One-piece Fiber Optic Adapter with ≤ 0.2dB Alternating Loss Ceramic or Metal Sleeve and Wide Operating Temperature

LC OM4 DX One-piece Fiber Optic Adapter with ≤ 0.2dB Alternating Loss Ceramic or Metal Sleeve and Wide Operating Temperature
LC OM4 DX One-piece Fiber Optic Adapter with ≤ 0.2dB Alternating Loss Ceramic or Metal Sleeve and Wide Operating Temperature
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Minimum Order Quantity: 50pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Alternating Loss (dB): ≤ 0.2 Durability: The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels: Single Core, Dual Core, 4 Core Frame Material: Metal Or Plastic
Sleeve Material: Ceramic Or Metal Operating Temperature (℃）: -40 ~ +85
Storage Temperature (℃）: -40 ~ +85
Highlight:

≤ 0.2dB Alternating Loss Fiber Optic Adapter

,

Ceramic or Metal Sleeve Optical Coupler

,

Wide Operating Temperature LC Adapter

Product Description

LC OM4 DX One-piece Adapter Without Flange
Precision fiber optic adapter designed for optimal light transmission with minimal loss. Features low insertion loss, excellent interchangeability, and high reproducibility.
LC OM4 DX One-piece Fiber Optic Adapter with ≤ 0.2dB Alternating Loss Ceramic or Metal Sleeve and Wide Operating Temperature 0
Product Identification
Zion Code Zion Description
7235047 LC OM4 DX One-piece Adapter Without Flange
Applications
Fiber optic adapters precisely link two connectors to maximize light transmission while minimizing loss. These components feature low insertion loss, excellent interchangeability, and high reproducibility. Each adapter undergoes functional testing before shipping.
Product Description
Fiber optic adapters enable connection between same or different fiber optic active connectors in fiber lines, ensuring uninterrupted optical pathways with minimal loss. By precisely aligning fiber end faces, they maximize light energy output coupling to receiving fibers while minimizing system impact. These passive components serve telecommunications networks, cable television networks, user loop systems, and local area networks.
Hangzhou Zion Communication adapters feature high flame retardancy, low insertion loss, exceptional durability, and wide operating temperature range.
Also known as couplers, fiber optic adapters are compact devices designed to terminate or link fiber optic cables and connectors between fiber optic lines.
LC OM4 DX One-piece Fiber Optic Adapter with ≤ 0.2dB Alternating Loss Ceramic or Metal Sleeve and Wide Operating Temperature 1
Technical Specifications
Parameter FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC
Operating Wavelength (nm) SM (OS2): 1310-1550
MM (OM1,2,3,4): 850-1300
Insertion Loss (dB) ≤ 0.2
Return Loss (dB) PC ≥45 | UPC ≥50 | APC ≥60 | PC ≥30
Repeatability (dB) ≤ 0.2
Alternating Loss (dB) ≤ 0.2
Durability Change of 500 interpolation times < 0.20dB
Number of Channels Single core, Dual core, 4 core
Frame Material Metal or Plastic
Sleeve Material Ceramic or Metal
Operating Temperature (°C) -40 ~ +85
Storage Temperature (°C) -40 ~ +85
Related LC-LC Fiber Optic Adapters
Zion Code Zion Description
7235001LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018FC With Rectangle Flange Fiber Optic Adapter/Coupler
Connector Types
LC OM4 DX One-piece Fiber Optic Adapter with ≤ 0.2dB Alternating Loss Ceramic or Metal Sleeve and Wide Operating Temperature 2
LC Connector
Used in LC optical fiber interface to connect SFP module connectors. Features easy-to-operate modular jack (RJ) latch mechanism. Commonly used in routers.
LC OM4 DX One-piece Fiber Optic Adapter with ≤ 0.2dB Alternating Loss Ceramic or Metal Sleeve and Wide Operating Temperature 3
SC Connector
Used in SC fiber optic interface, resembles RJ-45 interface but is flatter. Identified by copper column instead of copper contacts.
LC OM4 DX One-piece Fiber Optic Adapter with ≤ 0.2dB Alternating Loss Ceramic or Metal Sleeve and Wide Operating Temperature 4
FC Connector
Used in FC optical fiber interface with metal sleeve external strengthening and turnbuckle fastening method. Typically used on ODF side (distribution frames).
LC OM4 DX One-piece Fiber Optic Adapter with ≤ 0.2dB Alternating Loss Ceramic or Metal Sleeve and Wide Operating Temperature 5
ST Connector
Used in ST optical fiber interface with round shell and turnbuckle fastening. Commonly used in fiber distribution frames for 10Base-F connections.
OEM/ODM Services
Zion Communication offers comprehensive OEM/ODM services with professional R&D team support. Services include customized logos and label/PE bag/carton design.
Inquire Now

Tag:

fiber optic adapter,

lc adapter,

Fiber Fast Connector
