Home > Products> Optical Fiber System> LC OM4 DX Asymmetric Welding Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range

LC OM4 DX Asymmetric Welding Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range

LC OM4 DX Asymmetric Welding Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range
LC OM4 DX Asymmetric Welding Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Minimum Order Quantity: 50pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Alternating Loss (dB): ≤ 0.2 Durability: The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels: Single Core, Dual Core, 4 Core Frame Material: Metal Or Plastic
Sleeve Material: Ceramic Or Metal Operating Temperature (℃）: -40 ~ +85
Storage Temperature (℃）: -40 ~ +85
Highlight:

≤ 0.2dB Alternating Loss Fiber Optic Adapter

,

Ceramic or Metal Sleeve Optical Coupler

,

Wide Operating Temperature LC Adapter

Product Description

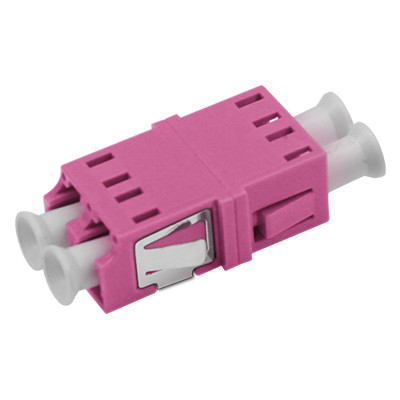

LC OM4 DX Asymmetric Welding Adapter Without Flange
Fiber Optic Adapter Overview

SC LC FC ST/APC UPC SX/DX/QUAD 0.9/2.0/3.0mm Welding Symmetry Plastic/Hybrid OPTIC ADAPTER/COUPLER

LC OM4 DX Asymmetric Welding Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range 0
Product Identification
Zion Code Zion Description
7235044 LC OM4 DX Asymmetric Welding Adapter Without Flange
LC OM4 DX Asymmetric Welding Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range 1
Applications
  • Links two connectors precisely to maximize light transmission and minimize loss
  • Features low insertion loss, excellent interchangeability and reproducibility
  • Each adapter undergoes functional testing before shipping
Product Description

The fiber optic adapter enables connection of same or different fiber optic active connectors in fiber lines, ensuring uninterrupted optical pathways with minimal loss. It precisely aligns fiber end faces to maximize light energy output coupling into receiving fibers while minimizing system impact.

Used in telecommunications networks, cable television networks, user loop systems, and local area networks. Hangzhou Zion Communication adapters feature high flame retardancy, low insertion loss, high durability, and wide operating temperature range.

Also called a coupler, this device terminates or links fiber optic cables or connectors between two fiber optic lines.

LC OM4 DX Asymmetric Welding Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range 2
Technical Specifications
Parameter FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC SM (OS2) MM (OM1,2,3,4)
Operating Wavelength (nm) 1310-1550 850-1300
Insertion Loss (dB) ≤ 0.2
Return Loss (dB) PC ≥45 | UPC ≥50 | APC ≥60 | PC ≥30
Repeatability (dB) ≤ 0.2
Alternating Loss (dB) ≤ 0.2
Durability Change of 500 interpolation times is less than 0.20dB
Number of Channels Single core, Dual core, 4 core
Frame Material Metal or Plastic
Sleeve Material Ceramic or Metal
Operating Temperature (°C) -40 ~ +85
Storage Temperature (°C) -40 ~ +85
Related LC-LC Fiber Optical Adapters
Zion Code Zion Description
7235001 LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002 LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003 LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004 SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005 SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006 SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007 SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008 SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009 SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010 FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011 FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012 SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013 SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014 SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015 SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016 FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017 FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018 FC With Rectangle Flange Fiber Optic Adapter/Coupler
Connector Types
LC OM4 DX Asymmetric Welding Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range 3
LC Connector

Used in LC optical fiber interface to connect SFP module connectors. Features easy-to-operate modular jack (RJ) latch mechanism. Commonly used in routers.

LC OM4 DX Asymmetric Welding Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range 4
SC Connector

Used in SC fiber optic interface, similar to RJ-45 but flatter. Identified by copper column contacts rather than thin copper contacts.

LC OM4 DX Asymmetric Welding Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range 5
FC Connector

Used in FC optical fiber interface with metal sleeve external strengthening and turnbuckle fastening. Typically used on ODF side and distribution frames.

LC OM4 DX Asymmetric Welding Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range 6
ST Connector

Used in ST optical fiber interface with round shell and turnbuckle fastening. Commonly used in fiber distribution frames and for 10Base-F connections.

OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM services with professional R&D team support:

  • Customized Logo
  • Label/PE bag/Carton design
