LC OM3 QUAD Welding Symmetry-type Fiber Optic Adapter Without Flange with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve

LC OM3 QUAD Welding Symmetry-type Fiber Optic Adapter Without Flange with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve
LC OM3 QUAD Welding Symmetry-type Fiber Optic Adapter Without Flange with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Minimum Order Quantity: 50pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Alternating Loss (dB): ≤ 0.2 Durability: The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels: Single Core, Dual Core, 4 Core Frame Material: Metal Or Plastic
Sleeve Material: Ceramic Or Metal Operating Temperature (℃）: -40 ~ +85
Storage Temperature (℃）: -40 ~ +85
Highlight:

≤ 0.2dB Alternating Loss Fiber Optic Adapter

,

Ceramic or Metal Sleeve Optical Coupler

,

Wide Operating Temperature LC Adapter

Product Description

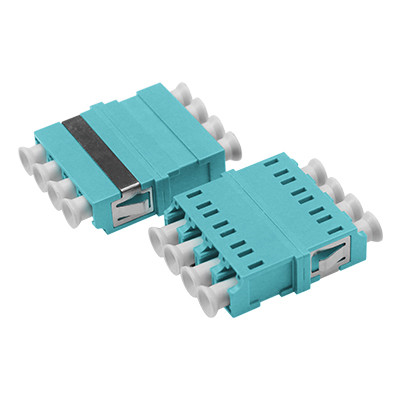

LC OM3 QUAD Welding Symmetry-type Adapter Without Flange
Precision fiber optic adapter designed for connecting LC OM3 QUAD connectors with welding symmetry configuration and no flange.
LC OM3 QUAD Welding Symmetry-type Fiber Optic Adapter Without Flange with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve 0
Product Identification
Zion Code Zion Description
7235041 LC OM3 QUAD Welding Symmetry-type Adapter Without Flange
Applications
Fiber optic adapters precisely link two connectors to maximize light transmission while minimizing loss. These components feature low insertion loss, excellent interchangeability, and reliable reproducibility. Every adapter undergoes functional testing before shipment.
Product Description
Fiber optic adapters enable connection between same or different fiber optic active connectors in optical lines, ensuring uninterrupted optical pathways with minimal signal loss. By precisely aligning fiber end faces, they maximize light energy transmission from output fibers to receiving fibers while minimizing system impact. As passive optical components, they serve telecommunications networks, cable television networks, user loop systems, and local area networks.
Hangzhou Zion Communication adapters offer high flame retardancy, low insertion loss, exceptional durability, and wide operating temperature range.
Also known as couplers, fiber optic adapters are compact devices designed to terminate or link fiber optic cables and connectors between optical lines.
LC OM3 QUAD Welding Symmetry-type Fiber Optic Adapter Without Flange with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve 1
Technical Specifications
Parameter FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC
Operating Wavelength (nm) SM (OS2): 1310-1550 | MM (OM1,2,3,4): 850-1300
Insertion Loss (dB) ≤ 0.2
Return Loss (dB) PC ≥45 | UPC ≥50 | APC ≥60 | PC ≥30
Repeatability (dB) ≤ 0.2
Alternating Loss (dB) ≤ 0.2
Durability Change of 500 interpolations < 0.20dB
Number of Channels Single core, Dual core, 4 core
Frame Material Metal or Plastic
Sleeve Material Ceramic or Metal
Operating Temperature (°C) -40 to +85
Storage Temperature (°C) -40 to +85
Related LC-LC Fiber Optic Adapters
7235001
LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002
LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003
LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004
SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005
SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006
SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007
SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008
SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009
SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010
FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011
FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012
SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013
SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014
SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015
SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016
FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017
FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018
FC With Rectangle Flange Fiber Optic Adapter/Coupler
Connector Types
LC OM3 QUAD Welding Symmetry-type Fiber Optic Adapter Without Flange with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve 2
LC Connector: Used in LC optical fiber interfaces to connect SFP modules. Features modular RJ latch mechanism for easy operation. Commonly used in routers.
LC OM3 QUAD Welding Symmetry-type Fiber Optic Adapter Without Flange with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve 3
SC Connector: Used in SC fiber optic interfaces, similar to RJ-45 but flatter with copper column contacts instead of thin copper pins.
LC OM3 QUAD Welding Symmetry-type Fiber Optic Adapter Without Flange with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve 4
FC Connector: Used in FC optical fiber interfaces with metal sleeve reinforcement and turnbuckle fastening. Typically used on ODF distribution frames.
LC OM3 QUAD Welding Symmetry-type Fiber Optic Adapter Without Flange with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve 5
ST Connector: Used in ST optical fiber interfaces with round shell and turnbuckle fastening. Common in fiber distribution frames and 10Base-F connections.
OEM/ODM Services
Zion Communication offers comprehensive OEM/ODM services with our professional R&D team, including:
  • Customized Logo
  • Label/PE bag/Carton design
