LC OM3 QUAD Asymmetric Welding Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range

LC OM3 QUAD Asymmetric Welding Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range
LC OM3 QUAD Asymmetric Welding Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Minimum Order Quantity: 50pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Alternating Loss (dB): ≤ 0.2 Durability: The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels: Single Core, Dual Core, 4 Core Frame Material: Metal Or Plastic
Sleeve Material: Ceramic Or Metal Operating Temperature (℃）: -40 ~ +85
Storage Temperature (℃）: -40 ~ +85
Highlight:

≤ 0.2dB Alternating Loss Fiber Optic Adapter

,

Ceramic or Metal Sleeve Optical Coupler

,

Wide Operating Temperature LC Adapter

Product Description

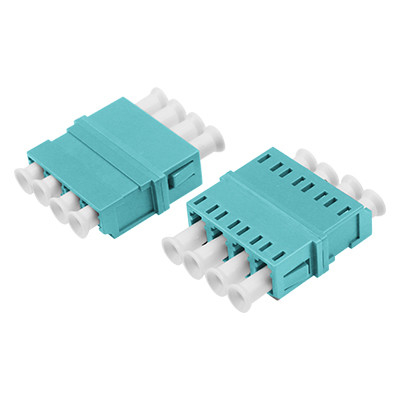

LC OM3 QUAD Asymmetric Welding Adapter Without Flange
LC OM3 QUAD Asymmetric Welding Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range 0
This fiber optic adapter is designed to link two connectors precisely, enabling maximum light transmission while minimizing signal loss. It features low insertion loss, excellent interchangeability, and high reproducibility, with each unit undergoing functional testing before shipment.
Zion Product Information
Zion Code Zion Description
7235037 LC OM3 QUAD Asymmetric Welding Adapter Without Flange
Applications
Fiber optic adapters are essential components that precisely link two connectors to maximize light transmission and minimize signal loss. They offer low insertion loss, excellent interchangeability, and high reproducibility, with each adapter functionally tested before shipping.
Product Description
Fiber optic adapters enable connection between the same or different fiber optic active connectors within fiber lines. They ensure uninterrupted optical pathways with minimal loss by precisely aligning fiber end faces to optimize light energy transmission from output fibers to receiving fibers. These passive optical components are suitable for telecommunications networks, cable television networks, user loop systems, and local area networks.
The adapters from Hangzhou Zion Communication Co., Ltd. feature high flame retardancy, low insertion loss, exceptional durability, and wide operating temperature range, making them the optimal choice for your fiber optic connectivity needs.
Also known as fiber optic couplers, these devices are designed to terminate or link fiber optic cables and connectors between two fiber optic lines.
LC OM3 QUAD Asymmetric Welding Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range 1
Technical Specifications
Parameter FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC SM (OS2) MM (OM1,2,3,4)
Operating Wavelength (nm) 1310-1550 850-1300
Insertion Loss (dB) ≤ 0.2
Return Loss (dB) PC ≥45 | UPC ≥50 | APC ≥60 | PC ≥30
Repeatability (dB) ≤ 0.2
Alternating Loss (dB) ≤ 0.2
Durability The change of 500 interpolation times is less than 0.20dB
Number of Channels Single core, Dual core, 4 core
Frame Material Metal or Plastic
Sleeve Material Ceramic or Metal
Operating Temperature (°C) -40 ~ +85
Storage Temperature (°C) -40 ~ +85
Related LC-LC Fiber Optical Adapters
Zion Code Zion Description
7235001LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018FC With Rectangle Flange Fiber Optic Adapter/Coupler
Connector Types
LC OM3 QUAD Asymmetric Welding Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range 2
LC Connector: Used in LC optical fiber interfaces to connect SFP modules. Features an easy-to-operate modular jack (RJ) latch mechanism. Commonly used in routers.
LC OM3 QUAD Asymmetric Welding Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range 3
SC Connector: Used in SC fiber optic interfaces. Resembles RJ-45 but is flatter with copper column contacts instead of thin copper pins.
LC OM3 QUAD Asymmetric Welding Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range 4
FC Connector: Used in FC optical fiber interfaces. Features metal sleeve reinforcement and turnbuckle fastening. Typically used on ODF distribution frames.
LC OM3 QUAD Asymmetric Welding Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range 5
ST Connector: Used in ST optical fiber interfaces. Features a round shell with turnbuckle fastening. Commonly used in fiber distribution frames and for 10Base-F connections.
OEM/ODM Services Available
Zion Communication offers comprehensive OEM/ODM services with our professional R&D team. Customization options include:
  • Customized Logo
  • Label/PE bag/Carton design
