LC OM3 QUAD Asymmetric Welding Fiber Optic Adapter with Flange - ≤0.2dB Loss, Ceramic/Metal Sleeve, -40 to +85℃

LC OM3 QUAD Asymmetric Welding Fiber Optic Adapter with Flange - ≤0.2dB Loss, Ceramic/Metal Sleeve, -40 to +85℃
LC OM3 QUAD Asymmetric Welding Fiber Optic Adapter with Flange - ≤0.2dB Loss, Ceramic/Metal Sleeve, -40 to +85℃
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Minimum Order Quantity: 50pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Alternating Loss (dB): ≤ 0.2 Durability: The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels: Single Core, Dual Core, 4 Core Frame Material: Metal Or Plastic
Sleeve Material: Ceramic Or Metal Operating Temperature (℃）: -40 ~ +85
Storage Temperature (℃）: -40 ~ +85
Highlight:

≤0.2dB Alternating Loss Fiber Optic Adapter

,

Ceramic or Metal Sleeve Optical Coupler

,

Wide Operating Temperature LC Adapter

Product Description

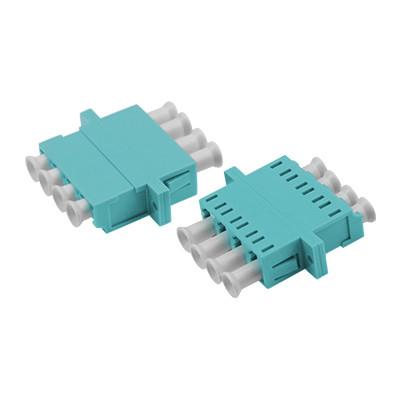

LC OM3 QUAD Asymmetric Welding Adapter With Flange
Product Overview

Precision fiber optic adapter designed for connecting LC OM3 QUAD connectors with asymmetric welding and flange mounting.

LC OM3 QUAD Asymmetric Welding Fiber Optic Adapter with Flange - ≤0.2dB Loss, Ceramic/Metal Sleeve, -40 to +85℃ 0
Product Identification
Zion Code Zion Description
7235036 LC OM3 QUAD Asymmetric Welding Adapter With Flange
Applications

Fiber optic adapters precisely link two connectors to maximize light transmission while minimizing signal loss. These components feature low insertion loss, excellent interchangeability, and reliable reproducibility. Each adapter undergoes functional testing before shipment.

Product Description

This fiber optic adapter enables connection between same or different fiber optic active connectors within fiber lines, ensuring uninterrupted optical pathways with minimal signal degradation. By precisely aligning fiber end faces, it maximizes light energy transmission from output fibers to receiving fibers while minimizing system impact.

Key features include:

  • High flame retardancy for enhanced safety
  • Low insertion loss for optimal performance
  • High durability for long-term reliability
  • Wide operating temperature range for versatile applications

Fiber optic adapters (also called couplers) are compact devices designed to terminate or link fiber optic cables and connectors between two fiber optic lines.

Technical Specifications
Parameter FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC SM (OS2) MM (OM1,2,3,4)
Operating Wavelength (nm) 1310-1550 850-1300
Insertion Loss (dB) ≤ 0.2
Return Loss (dB) PC ≥45 | UPC ≥50 | APC ≥60 | PC ≥30
Repeatability (dB) ≤ 0.2
Alternating Loss (dB) ≤ 0.2
Durability Change of 500 interpolation times is less than 0.20dB
Number of Channels Single core, Dual core, 4 core
Frame Material Metal or Plastic
Sleeve Material Ceramic or Metal
Operating Temperature (°C) -40 ~ +85
Storage Temperature (°C) -40 ~ +85
Related LC-LC Fiber Optic Adapters
Zion Code Zion Description
7235001LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018FC With Rectangle Flange Fiber Optic Adapter/Coupler
Connector Types
LC OM3 QUAD Asymmetric Welding Fiber Optic Adapter with Flange - ≤0.2dB Loss, Ceramic/Metal Sleeve, -40 to +85℃ 1
LC Connector

Used in LC optical fiber interface to connect SFP module connectors. Features easy-to-operate modular jack (RJ) latch mechanism. Commonly used in routers.

LC OM3 QUAD Asymmetric Welding Fiber Optic Adapter with Flange - ≤0.2dB Loss, Ceramic/Metal Sleeve, -40 to +85℃ 2
SC Connector

Used in SC fiber optic interface, similar to RJ-45 but flatter. Identified by copper column contacts rather than thin copper pins.

LC OM3 QUAD Asymmetric Welding Fiber Optic Adapter with Flange - ≤0.2dB Loss, Ceramic/Metal Sleeve, -40 to +85℃ 3
FC Connector

Used in FC optical fiber interface with metal sleeve reinforcement and turnbuckle fastening. Typically used on ODF distribution frames.

LC OM3 QUAD Asymmetric Welding Fiber Optic Adapter with Flange - ≤0.2dB Loss, Ceramic/Metal Sleeve, -40 to +85℃ 4
ST Connector

Used in ST optical fiber interface with round shell and turnbuckle fastening. Commonly used in fiber distribution frames for 10Base-F connections.

OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM services with professional R&D team support:

  • Customized Logo
  • Label/PE bag/Carton design
