LC OM3 DX Welding Symmetry-type Fiber Optic Adapter with Flange - ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, Wide Operating Temperature

LC OM3 DX Welding Symmetry-type Fiber Optic Adapter with Flange - ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, Wide Operating Temperature
LC OM3 DX Welding Symmetry-type Fiber Optic Adapter with Flange - ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, Wide Operating Temperature
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Minimum Order Quantity: 50pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Alternating Loss (dB): ≤ 0.2 Durability: The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels: Single Core, Dual Core, 4 Core Frame Material: Metal Or Plastic
Sleeve Material: Ceramic Or Metal Operating Temperature (℃）: -40 ~ +85
Storage Temperature (℃）: -40 ~ +85
Highlight:

≤ 0.2dB Alternating Loss Fiber Optic Adapter

,

Ceramic or Metal Sleeve Optical Coupler

,

Wide Operating Temperature LC Adapter

Product Description

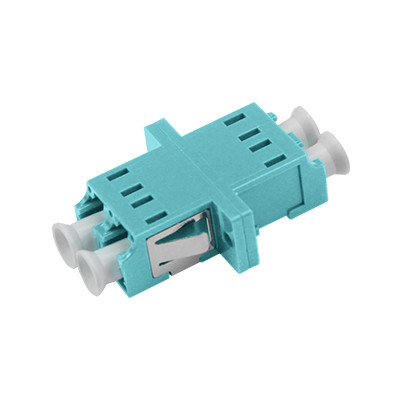

LC OM3 DX Welding Symmetry-type Adapter With Flange
Precision fiber optic adapter designed to connect LC OM3 connectors with welding symmetry configuration and integrated flange for secure mounting.
LC OM3 DX Welding Symmetry-type Fiber Optic Adapter with Flange - ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, Wide Operating Temperature 0 LC OM3 DX Welding Symmetry-type Fiber Optic Adapter with Flange - ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, Wide Operating Temperature 1
Product Identification
Zion Code Zion Description
7235034 LC OM3 DX Welding Symmetry-type Adapter With Flange
Applications
By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. Each fiber optic adapter is functionally tested before shipping.
Product Description
The fiber optic adapter implements the same or different fiber optic active connectors in the fiber line. It makes the optical path unblocked with little loss. It precisely connects the two end faces of the fiber to emit the light energy output by the fiber. It can be coupled to the receiving fiber to the greatest extent and minimize the impact on the system due to its intervention in the optical link.
Fiber optic adapter, also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.
The adapters supplied by Hangzhou Zion Communication Co., Ltd. have high flame retardancy, low insertion loss, high durability, and wide operating temperature. It is your best choice.
LC OM3 DX Welding Symmetry-type Fiber Optic Adapter with Flange - ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, Wide Operating Temperature 2
Technical Specifications
Parameter FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC
SM (OS2) MM (OM1,2,3,4)
Operating Wavelength (nm) 1310-1550 | 850-1300
Insertion Loss (dB) ≤ 0.2
Return Loss (dB) PC ≥45 | UPC ≥50 | APC ≥60 | PC ≥30
Repeatability (dB) ≤ 0.2
Alternating Loss (dB) ≤ 0.2
Durability The change of 500 interpolation times is less than 0.20dB
Number of Channels Single core, Dual core, 4 core
Frame Material Metal or Plastic
Sleeve Material Ceramic or Metal
Operating Temperature (°C) -40 ~ +85
Storage Temperature (°C) -40 ~ +85
Related Products
Zion Code Zion Description
7235001LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018FC With Rectangle Flange Fiber Optic Adapter/Coupler
Connector Types
LC OM3 DX Welding Symmetry-type Fiber Optic Adapter with Flange - ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, Wide Operating Temperature 3
LC Connector: Used in LC optical fiber interface to connect the connector of SFP module. Made by the easy-to-operate modular jack (RJ) latch mechanism. Commonly used in routers.
LC OM3 DX Welding Symmetry-type Fiber Optic Adapter with Flange - ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, Wide Operating Temperature 4
SC Connector: Used in SC fiber optic interface, similar to RJ-45 interface but flatter. Commonly used in various networking applications.
LC OM3 DX Welding Symmetry-type Fiber Optic Adapter with Flange - ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, Wide Operating Temperature 5
FC Connector: Used in FC optical fiber interface with metal sleeve external strengthening and turnbuckle fastening method. Generally used on ODF side.
LC OM3 DX Welding Symmetry-type Fiber Optic Adapter with Flange - ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, Wide Operating Temperature 6
ST Connector: Used in ST optical fiber interface with round shell and turnbuckle fastening. Commonly used in fiber distribution frames.
OEM/ODM Services
ZION Communication has rich experiences in producing OEM/ODM cases because of our professional R&D team.
  • Customized Logo
  • Label/PE bag/Carton design
