Home > Products> Optical Fiber System> LC OM3 DX High-Low Fiber Optic Adapter with ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, and Wide Operating Temperature

LC OM3 DX High-Low Fiber Optic Adapter with ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, and Wide Operating Temperature

LC OM3 DX High-Low Fiber Optic Adapter with ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, and Wide Operating Temperature
LC OM3 DX High-Low Fiber Optic Adapter with ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, and Wide Operating Temperature
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Minimum Order Quantity: 50pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Alternating Loss (dB): ≤ 0.2 Durability: The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels: Single Core, Dual Core, 4 Core Frame Material: Metal Or Plastic
Sleeve Material: Ceramic Or Metal Operating Temperature (℃）: -40 ~ +85
Storage Temperature (℃）: -40 ~ +85
Highlight:

≤ 0.2dB Alternating Loss Fiber Optic Adapter

,

Ceramic or Metal Sleeve Optical Coupler

,

Wide Operating Temperature LC Adapter

Product Description

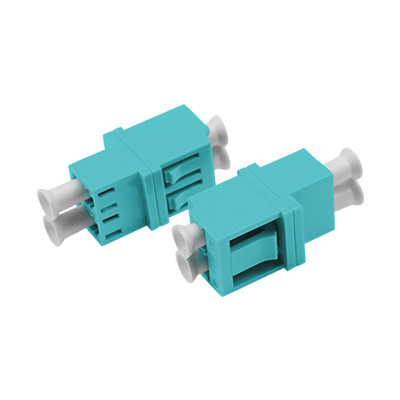

LC OM3 DX High-Low Adapter
This precision fiber optic adapter enables seamless connection between LC OM3 connectors with high-low configuration, ensuring optimal light transmission with minimal signal loss.
LC OM3 DX High-Low Fiber Optic Adapter with ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, and Wide Operating Temperature 0 LC OM3 DX High-Low Fiber Optic Adapter with ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, and Wide Operating Temperature 1
Product Identification
Zion Code Zion Description
7235031 LC OM3 DX High-Low Adapter
Applications
Fiber optic adapters precisely link two connectors to maximize light transmission and minimize signal loss. These components feature low insertion loss, excellent interchangeability, and reliable reproducibility. Each adapter undergoes functional testing prior to shipment.
Product Description
The LC OM3 DX High-Low Adapter facilitates connections between fiber optic connectors in telecommunications networks, cable television systems, user loop networks, and local area networks. Engineered for high flame retardancy, low insertion loss, superior durability, and wide operating temperature range.
Fiber optic adapters (also called couplers) are compact devices designed to terminate or link fiber optic cables and connectors between two fiber optic lines.
LC OM3 DX High-Low Fiber Optic Adapter with ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, and Wide Operating Temperature 2
Technical Specifications
Parameter FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC
Operating Wavelength (nm) SM (OS2): 1310-1550 | MM (OM1,2,3,4): 850-1300
Insertion Loss (dB) ≤ 0.2
Return Loss (dB) PC ≥45 | UPC ≥50 | APC ≥60 | PC ≥30
Repeatability (dB) ≤ 0.2
Alternating Loss (dB) ≤ 0.2
Durability Change of 500 interpolation times is less than 0.20dB
Number of Channels Single core, Dual core, 4 core
Frame Material Metal or Plastic
Sleeve Material Ceramic or Metal
Operating Temperature (°C) -40 to +85
Storage Temperature (°C) -40 to +85
Related LC-LC Fiber Optic Adapters
7235001
LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002
LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003
LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004
SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005
SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006
SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007
SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
Connector Types
LC OM3 DX High-Low Fiber Optic Adapter with ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, and Wide Operating Temperature 3
LC Connector: Used in LC optical fiber interface to connect SFP modules. Features easy-to-operate modular jack latch mechanism. Commonly used in routers.
LC OM3 DX High-Low Fiber Optic Adapter with ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, and Wide Operating Temperature 4
SC Connector: Used in SC fiber optic interface, similar to RJ-45 but flatter with copper column contacts. Used in various networking applications.
LC OM3 DX High-Low Fiber Optic Adapter with ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, and Wide Operating Temperature 5
FC Connector: Features metal sleeve reinforcement and turnbuckle fastening. Typically used on ODF distribution frames.
LC OM3 DX High-Low Fiber Optic Adapter with ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, and Wide Operating Temperature 6
ST Connector: Round shell design with turnbuckle fastening. Commonly used in fiber optic distribution frames and 10Base-F connections.
OEM/ODM Services
Zion Communication offers comprehensive OEM/ODM services with our professional R&D team. Customization options include:
  • Customized Logo
  • Label/PE bag/Carton design
Inquire Now
