LC OM3 DX Asymmetric Welding Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range

LC OM3 DX Asymmetric Welding Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range
LC OM3 DX Asymmetric Welding Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Minimum Order Quantity: 50pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Alternating Loss (dB): ≤ 0.2 Durability: The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels: Single Core, Dual Core, 4 Core Frame Material: Metal Or Plastic
Sleeve Material: Ceramic Or Metal Operating Temperature (℃）: -40 ~ +85
Storage Temperature (℃）: -40 ~ +85
Highlight:

≤ 0.2dB Alternating Loss Fiber Optic Adapter

,

Ceramic or Metal Sleeve Optical Coupler

,

Wide Operating Temperature LC Adapter

Product Description

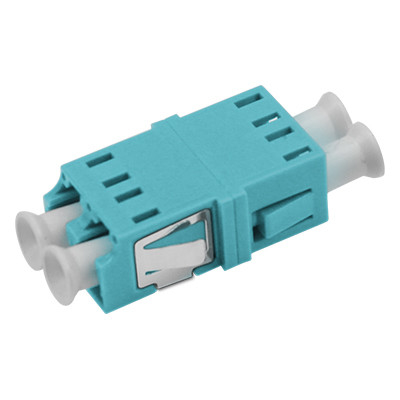

LC OM3 DX Asymmetric Welding Adapter Without Flange
Precision fiber optic adapter designed for optimal light transmission with minimal loss. This asymmetric welding adapter connects LC OM3 connectors without flange for versatile installation.
LC OM3 DX Asymmetric Welding Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range 0
Product Identification
Zion Code Zion Description
7235030 LC OM3 DX Asymmetric Welding Adapter Without Flange
Applications
Fiber optic adapters precisely link two connectors to maximize light transmission and minimize signal loss. These components feature low insertion loss, excellent interchangeability, and reliable reproducibility. Each adapter undergoes functional testing before shipment to ensure quality performance.
Product Description
This fiber optic adapter enables connection between same or different fiber optic active connectors within fiber lines. It ensures uninterrupted optical pathways with minimal loss by precisely aligning fiber end faces to optimize light energy output and coupling efficiency. The adapter minimizes system impact during optical link intervention.
As part of optical passive components, these adapters serve telecommunications networks, cable television networks, user loop systems, and local area networks. Hangzhou Zion Communication adapters offer high flame retardancy, low insertion loss, exceptional durability, and wide operating temperature range.
Also known as fiber optic couplers, these compact devices terminate or link fiber optic cables and connectors between two fiber optic lines.
LC OM3 DX Asymmetric Welding Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range 1
Technical Specifications
Parameter FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC
Operating Wavelength (nm) SM (OS2): 1310-1550 | MM (OM1,2,3,4): 850-1300
Insertion Loss (dB) ≤ 0.2
Return Loss (dB) PC ≥45 | UPC ≥50 | APC ≥60 | PC ≥30
Repeatability (dB) ≤ 0.2
Alternating Loss (dB) ≤ 0.2
Durability Change of 500 interpolation times is less than 0.20dB
Number of Channels Single core, Dual core, 4 core
Frame Material Metal or Plastic
Sleeve Material Ceramic or Metal
Operating Temperature (°C) -40 ~ +85
Storage Temperature (°C) -40 ~ +85
Related LC-LC Fiber Optic Adapters
Zion Code Zion Description
7235001LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018FC With Rectangle Flange Fiber Optic Adapter/Coupler
Connector Types
LC OM3 DX Asymmetric Welding Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range 2
LC Connector
Used in LC optical fiber interface to connect SFP modules. Features easy-to-operate modular jack (RJ) latch mechanism. Commonly used in routers.
LC OM3 DX Asymmetric Welding Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range 3
SC Connector
Used in SC fiber optic interface, similar to RJ-45 but flatter with copper column contacts instead of thin copper pins.
LC OM3 DX Asymmetric Welding Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range 4
FC Connector
Used in FC optical fiber interface with metal sleeve external strengthening and turnbuckle fastening. Typically used on ODF distribution frames.
LC OM3 DX Asymmetric Welding Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range 5
ST Connector
Used in ST optical fiber interface with round shell and turnbuckle fastening. Commonly used in fiber distribution frames for 10Base-F connections.
OEM/ODM Services
ZION Communication offers comprehensive OEM/ODM services supported by our professional R&D team. Customization options include:
  • Customized Logo
  • Label/PE bag/Carton design
Inquire Now
