LC MM QUAD Welding Symmetry-type Fiber Optic Adapter Without Flange and ≤ 0.2dB Alternating Loss

LC MM QUAD Welding Symmetry-type Fiber Optic Adapter Without Flange and ≤ 0.2dB Alternating Loss
LC MM QUAD Welding Symmetry-type Fiber Optic Adapter Without Flange and ≤ 0.2dB Alternating Loss
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Minimum Order Quantity: 50pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Alternating Loss (dB): ≤ 0.2 Durability: The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels: Single Core, Dual Core, 4 Core Frame Material: Metal Or Plastic
Sleeve Material: Ceramic Or Metal Operating Temperature (℃）: -40 ~ +85
Storage Temperature (℃）: -40 ~ +85
Highlight:

Welding Symmetry-type Fiber Optic Adapter

,

Without Flange LC Adapter

,

≤ 0.2dB Alternating Loss Optical Coupler

Product Description

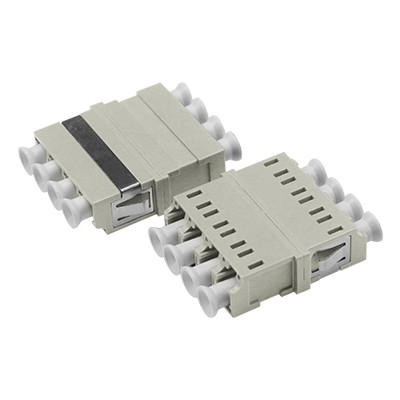

LC MM QUAD Welding Symmetry-type Adapter Without Flange
Fiber Optic Adapter - SC LC FC ST/APC UPC SX/DX/QUAD 0.9/2.0/3.0mm Welding Symmetry Plastic/Hybrid OPTIC ADAPTER/COUPLER
Inquire Now LC MM QUAD Welding Symmetry-type Fiber Optic Adapter Without Flange and ≤ 0.2dB Alternating Loss 0
Product Overview
LC MM QUAD Welding Symmetry-type Fiber Optic Adapter Without Flange and ≤ 0.2dB Alternating Loss 1
Zion Product Information
Zion Code Zion Description
7235027 LC MM QUAD Welding Symmetry-type Adapter Without Flange
Applications
  • Links two connectors precisely to maximize light transmission and minimize signal loss
  • Features low insertion loss, excellent interchangeability, and high reproducibility
  • Each adapter undergoes functional testing before shipping
Product Description
The fiber optic adapter enables connection between same or different fiber optic active connectors in fiber lines, ensuring uninterrupted optical pathways with minimal signal loss.
By precisely aligning fiber end faces, these adapters maximize light energy transmission from output fibers to receiving fibers while minimizing system impact from optical link intervention.
Also known as fiber optic couplers, these compact devices terminate or link fiber optic cables and connectors between two fiber optic lines.
Technical Specifications
LC MM QUAD Welding Symmetry-type Fiber Optic Adapter Without Flange and ≤ 0.2dB Alternating Loss 2
Performance Characteristics
Parameter FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC
SM (OS2) MM (OM1,2,3,4)
Operating Wavelength(nm) 1310-1550 | 850-1300
Insertion Loss (dB) ≤ 0.2
Return Loss (dB) PC ≥45 | UPC ≥50 | APC ≥60 | PC ≥30
Repeatability (dB) ≤ 0.2
Alternating loss (dB) ≤ 0.2
Durability The change of 500 interpolation times is less than 0.20dB
Number of channels Single core, Dual core, 4 core
Frame material Metal or Plastic
Sleeve material Ceramic or Metal
Operating Temperature (℃) -40 ~ +85
Storage Temperature (℃) -40 ~ +85
Related LC-LC Fiber Optical Adapters
Zion Code Zion Description
7235001 LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002 LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003 LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004 SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005 SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006 SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007 SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008 SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009 SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010 FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011 FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012 SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013 SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014 SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015 SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016 FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017 FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018 FC With Rectangle Flange Fiber Optic Adapter/Coupler
Connector Types
LC MM QUAD Welding Symmetry-type Fiber Optic Adapter Without Flange and ≤ 0.2dB Alternating Loss 3
LC Connector - Used in LC optical fiber interface to connect SFP modules. Features easy-to-operate modular jack (RJ) latch mechanism. Commonly used in routers.
LC MM QUAD Welding Symmetry-type Fiber Optic Adapter Without Flange and ≤ 0.2dB Alternating Loss 4
SC Connector - Used in SC fiber optic interface, similar to RJ-45 but flatter with copper column contacts instead of thin copper pins.
LC MM QUAD Welding Symmetry-type Fiber Optic Adapter Without Flange and ≤ 0.2dB Alternating Loss 5
FC Connector - Used in FC optical fiber interface with metal sleeve reinforcement and turnbuckle fastening. Typically used on ODF side (distribution frames).
LC MM QUAD Welding Symmetry-type Fiber Optic Adapter Without Flange and ≤ 0.2dB Alternating Loss 6
ST Connector - Used in ST optical fiber interface with round shell and turnbuckle fastening. Commonly used in fiber distribution frames for 10Base-F connections.
OEM/ODM Services
ZION Communication offers comprehensive OEM/ODM services supported by our professional R&D team with extensive experience in custom manufacturing.
  • Customized Logo
  • Label/PE bag/Carton design
