Home > Products> Optical Fiber System> LC MM QUAD Welding Symmetry-type Fiber Optic Adapter with Flange - ≤0.2dB Loss, Ceramic/Metal Sleeve, -40 to +85℃

LC MM QUAD Welding Symmetry-type Fiber Optic Adapter with Flange - ≤0.2dB Loss, Ceramic/Metal Sleeve, -40 to +85℃

LC MM QUAD Welding Symmetry-type Fiber Optic Adapter with Flange - ≤0.2dB Loss, Ceramic/Metal Sleeve, -40 to +85℃
LC MM QUAD Welding Symmetry-type Fiber Optic Adapter with Flange - ≤0.2dB Loss, Ceramic/Metal Sleeve, -40 to +85℃
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Minimum Order Quantity: 50pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Alternating Loss (dB): ≤ 0.2 Durability: The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels: Single Core, Dual Core, 4 Core Frame Material: Metal Or Plastic
Sleeve Material: Ceramic Or Metal Operating Temperature (℃）: -40 ~ +85
Storage Temperature (℃）: -40 ~ +85
Highlight:

≤0.2dB Alternating Loss Fiber Optic Adapter

,

Ceramic or Metal Sleeve Optical Coupler

,

Wide Operating Temperature LC Adapter

Product Description

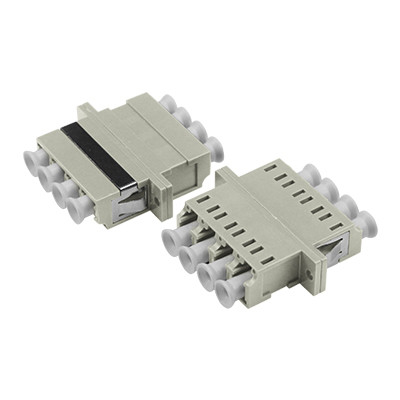

LC MM QUAD Welding Symmetry-type Adapter With Flange
Fiber Optic Adapter - SC LC FC ST/APC UPC SX/DX/QUAD 0.9/2.0/3.0mm Welding Symmetry Plastic/Hybrid OPTIC ADAPTER/COUPLER
LC MM QUAD Welding Symmetry-type Fiber Optic Adapter with Flange - ≤0.2dB Loss, Ceramic/Metal Sleeve, -40 to +85℃ 0
Product Information
Zion Code: 7235026
Description: LC MM QUAD Welding Symmetry-type Adapter With Flange
LC MM QUAD Welding Symmetry-type Fiber Optic Adapter with Flange - ≤0.2dB Loss, Ceramic/Metal Sleeve, -40 to +85℃ 1
Applications
  • Precisely links two connectors to maximize light transmission and minimize loss
  • Features low insertion loss, excellent interchangeability and reproducibility
  • Each adapter undergoes functional testing before shipping
Product Description
Fiber optic adapters implement connections between same or different fiber optic active connectors in fiber lines, ensuring uninterrupted optical pathways with minimal loss. They precisely align fiber end faces to maximize light energy output transmission and optimize coupling to receiving fibers, minimizing system impact from optical link intervention.
These passive optical components are used in telecommunications networks, cable television networks, user loop systems, and local area networks. Hangzhou Zion Communication adapters feature high flame retardancy, low insertion loss, high durability, and wide operating temperature range.
Fiber optic adapters (also called couplers) are compact devices designed to terminate or link fiber optic cables or connectors between two fiber optic lines.
LC MM QUAD Welding Symmetry-type Fiber Optic Adapter with Flange - ≤0.2dB Loss, Ceramic/Metal Sleeve, -40 to +85℃ 2
Technical Specifications
Parameter FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC
SM (OS2) MM (OM1,2,3,4)
Operating Wavelength (nm) 1310-1550 | 850-1300
Insertion Loss (dB) ≤ 0.2
Return Loss (dB) PC ≥45 | UPC ≥50 | APC ≥60 | PC ≥30
Repeatability (dB) ≤ 0.2
Alternating Loss (dB) ≤ 0.2
Durability The change of 500 interpolation times is less than 0.20dB
Number of Channels Single core, Dual core, 4 core
Frame Material Metal or Plastic
Sleeve Material Ceramic or Metal
Operating Temperature (°C) -40 ~ +85
Storage Temperature (°C) -40 ~ +85
Related Products
Zion Code Zion Description
7235001 LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002 LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003 LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004 SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005 SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006 SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007 SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008 SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009 SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010 FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011 FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012 SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013 SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014 SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015 SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016 FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017 FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018 FC With Rectangle Flange Fiber Optic Adapter/Coupler
Connector Types
LC Connector: Used in LC optical fiber interface to connect SFP modules. Features easy-to-operate modular jack (RJ) latch mechanism. Commonly used in routers.
LC MM QUAD Welding Symmetry-type Fiber Optic Adapter with Flange - ≤0.2dB Loss, Ceramic/Metal Sleeve, -40 to +85℃ 3
SC Connector: Used in SC fiber optic interface, resembles RJ-45 interface but is flatter with copper column contacts instead of thin copper pins.
LC MM QUAD Welding Symmetry-type Fiber Optic Adapter with Flange - ≤0.2dB Loss, Ceramic/Metal Sleeve, -40 to +85℃ 4
FC Connector: Used in FC optical fiber interface with metal sleeve external strengthening and turnbuckle fastening method. Typically used on ODF side (distribution frames).
LC MM QUAD Welding Symmetry-type Fiber Optic Adapter with Flange - ≤0.2dB Loss, Ceramic/Metal Sleeve, -40 to +85℃ 5
ST Connector: Used in ST optical fiber interface, commonly found in fiber distribution frames. Features round shell and turnbuckle fastening. Often used for 10Base-F connections.
LC MM QUAD Welding Symmetry-type Fiber Optic Adapter with Flange - ≤0.2dB Loss, Ceramic/Metal Sleeve, -40 to +85℃ 6
OEM/ODM Services
ZION Communication offers comprehensive OEM/ODM services with professional R&D team support. Customization options include:
  • Customized Logo
  • Label/PE bag/Carton design
