Home > Products> Optical Fiber System> LC MM QUAD One-piece Fiber Optic Adapter with Flange Featuring ≤ 0.2dB Alternating Loss Ceramic or Metal Sleeve and Wide Operating Temperature

LC MM QUAD One-piece Fiber Optic Adapter with Flange Featuring ≤ 0.2dB Alternating Loss Ceramic or Metal Sleeve and Wide Operating Temperature

LC MM QUAD One-piece Fiber Optic Adapter with Flange Featuring ≤ 0.2dB Alternating Loss Ceramic or Metal Sleeve and Wide Operating Temperature
LC MM QUAD One-piece Fiber Optic Adapter with Flange Featuring ≤ 0.2dB Alternating Loss Ceramic or Metal Sleeve and Wide Operating Temperature
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Minimum Order Quantity: 50pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Alternating Loss (dB): ≤ 0.2 Durability: The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels: Single Core, Dual Core, 4 Core Frame Material: Metal Or Plastic
Sleeve Material: Ceramic Or Metal Operating Temperature (℃）: -40 ~ +85
Storage Temperature (℃）: -40 ~ +85
Highlight:

≤ 0.2dB Alternating Loss Fiber Optic Adapter

,

Ceramic or Metal Sleeve Optical Coupler

,

Wide Operating Temperature LC Adapter

Product Description

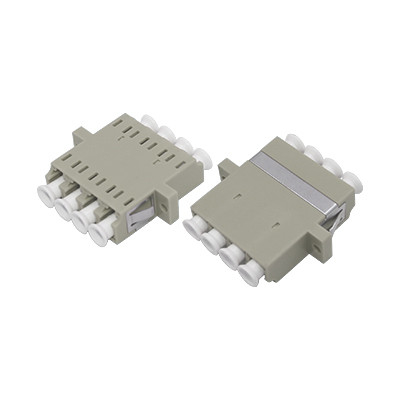

LC MM QUAD One-piece Adapter With Flange
Precision fiber optic adapter designed to connect LC multimode QUAD connectors with flange mounting for secure installation.
LC MM QUAD One-piece Fiber Optic Adapter with Flange Featuring ≤ 0.2dB Alternating Loss Ceramic or Metal Sleeve and Wide Operating Temperature 0
Product Specifications
Zion Code Zion Description
7235024 LC MM QUAD One-piece Adapter With Flange
Applications
By linking two connectors precisely, fiber optic adapters allow light sources to be transmitted efficiently while minimizing signal loss. These adapters feature low insertion loss, excellent interchangeability, and reliable reproducibility. Each unit undergoes functional testing before shipping to ensure optimal performance.
Product Description
Fiber optic adapters enable connection between same or different fiber optic active connectors in fiber lines, ensuring uninterrupted optical pathways with minimal signal degradation. They precisely align fiber end faces to maximize light energy transmission from output fibers to receiving fibers. These passive optical components are ideal for telecommunications networks, cable television networks, user loop systems, and local area networks.
Also known as couplers, fiber optic adapters are compact devices designed to terminate or link fiber optic cables and connectors between two fiber optic lines.
LC MM QUAD One-piece Fiber Optic Adapter with Flange Featuring ≤ 0.2dB Alternating Loss Ceramic or Metal Sleeve and Wide Operating Temperature 1
Technical Characteristics
Parameter FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC
SM (OS2) MM (OM1,2,3,4)
Operating Wavelength (nm) 1310-1550 | 850-1300
Insertion Loss (dB) ≤ 0.2
Return Loss (dB) PC ≥45 | UPC ≥50 | APC ≥60 | PC ≥30
Repeatability (dB) ≤ 0.2
Alternating Loss (dB) ≤ 0.2
Durability The change of 500 interpolation times is less than 0.20dB
Number of Channels Single core, Dual core, 4 core
Frame Material Metal or Plastic
Sleeve Material Ceramic or Metal
Operating Temperature (°C) -40 ~ +85
Storage Temperature (°C) -40 ~ +85
Related LC-LC Fiber Optical Adapters
Zion Code Zion Description
7235001LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018FC With Rectangle Flange Fiber Optic Adapter/Coupler
Connector Types
LC MM QUAD One-piece Fiber Optic Adapter with Flange Featuring ≤ 0.2dB Alternating Loss Ceramic or Metal Sleeve and Wide Operating Temperature 2
LC Connector
Used in LC optical fiber interface to connect SFP module connectors. Features easy-to-operate modular jack (RJ) latch mechanism. Commonly used in routers.
LC MM QUAD One-piece Fiber Optic Adapter with Flange Featuring ≤ 0.2dB Alternating Loss Ceramic or Metal Sleeve and Wide Operating Temperature 3
SC Connector
Used in SC fiber optic interface, resembles RJ-45 interface but is flatter with copper column contacts instead of thin copper pins.
LC MM QUAD One-piece Fiber Optic Adapter with Flange Featuring ≤ 0.2dB Alternating Loss Ceramic or Metal Sleeve and Wide Operating Temperature 4
FC Connector
Used in FC optical fiber interface with metal sleeve external reinforcement and turnbuckle fastening. Typically used on ODF side (distribution frames).
LC MM QUAD One-piece Fiber Optic Adapter with Flange Featuring ≤ 0.2dB Alternating Loss Ceramic or Metal Sleeve and Wide Operating Temperature 5
ST Connector
Used in ST optical fiber interface, commonly found in fiber distribution frames. Features round shell with turnbuckle fastening. Often used for 10Base-F connections.
OEM/ODM Services
ZION Communication offers comprehensive OEM/ODM services with professional R&D team support. Customization options include:
  • Customized Logo
  • Label/PE bag/Carton design
