Name: LC MM DX Welding Symmetry-type Fiber Optic Adapter with Flange and Ceramic or Metal Sleeve for ≤ 0.2dB Alternating Loss
Brand: HANGZHOU ZION COMMUNICATION CO., LTD
Availability: InStock

Zion Code and Description

Zion Code	Zion Description
7235020	LC MM DX Welding Symmetry-type Adapter With Flange

Applications

By linking two connectors precisely, fiber optic adapters allow light sources to be transmitted at maximum efficiency while minimizing loss. These adapters feature low insertion loss, excellent interchangeability, and reproducibility. Each fiber optic adapter undergoes functional testing before shipping.

Product Description

Fiber optic adapters implement connections between the same or different fiber optic active connectors in fiber lines, ensuring unblocked optical paths with minimal loss. They precisely connect fiber end faces to maximize light energy transmission from the output fiber to the receiving fiber, minimizing system impact from their intervention in the optical link.

As optical passive components, they are used in telecommunications networks, cable television networks, user loop systems, and local area networks. Hangzhou Zion Communication Co., Ltd. supplies adapters with high flame retardancy, low insertion loss, high durability, and wide operating temperature range.

Fiber optic adapters, also called couplers, are small devices designed to terminate or link fiber optic cables or connectors between two fiber optic lines.

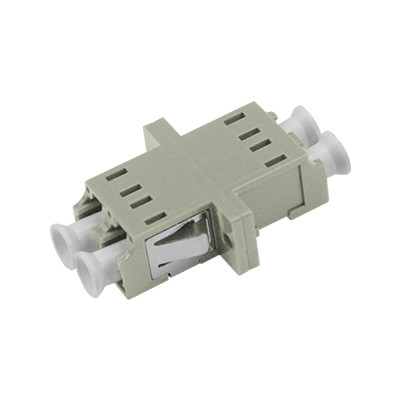

LC MM DX Welding Symmetry-type Adapter With Flange

Technical Characteristics

Parameter	FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC
Operating Wavelength (nm)	SM (OS2): 1310-1550 \| MM (OM1,2,3,4): 850-1300
Insertion Loss (dB)	≤ 0.2
Return Loss (dB)	PC ≥45 \| UPC ≥50 \| APC ≥60 \| PC ≥30
Repeatability (dB)	≤ 0.2
Alternating Loss (dB)	≤ 0.2
Durability	The change of 500 interpolation times is less than 0.20dB
Number of Channels	Single core, Dual core, 4 core
Frame Material	Metal or Plastic
Sleeve Material	Ceramic or Metal
Operating Temperature (°C)	-40 ~ +85
Storage Temperature (°C)	-40 ~ +85

Zion Communication's Hot LC-LC Fiber Optical Adapters

Zion Code	Zion Description
7235001	LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002	LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003	LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004	SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005	SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006	SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007	SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008	SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009	SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010	FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011	FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012	SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013	SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014	SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015	SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016	FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017	FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018	FC With Rectangle Flange Fiber Optic Adapter/Coupler

Connector Types

LC Connector: Used in LC optical fiber interface to connect SFP module connectors. Features easy-to-operate modular jack (RJ) latch mechanism. Commonly used in routers.

SC Connector: Used in SC fiber optic interface, similar to RJ-45 interface but flatter with copper column contacts instead of thin copper pins.

FC Connector: Used in FC optical fiber interface with metal sleeve external strengthening and turnbuckle fastening method. Generally used on ODF side (distribution frames).

ST Connector: Used in ST optical fiber interface with round shell and turnbuckle fastening. Commonly used in fiber distribution frames for 10Base-F connections.

OEM/ODM Services

ZION Communication has extensive experience in producing OEM/ODM cases with our professional R&D team. Services include:

Customized Logo
Label/PE bag/Carton design

Related Optical Components

ADSS Cable Products

All Dielectric, Stranded Loose tube ADSS Cable, G.652.D, Polyethylene (PE) | AT(anti-tracking)Sheath, Gel-filled, Self-supporting, Aramid Yarn| KEVLAR

FTTH Drop Cable

FTTH (fiber to the home) networks installed in many areas covering indoor and outdoor sections.

Fiber Optic Splice Closure

24/48/96/144 cores IP55 to IP68 PP/PC/PC+ABS Heat-shrink seal/Mechanical seal INLINE OPTIC SPLICE CLOSURE

Fiber Optic Terminal Box

Fiber Optical Terminal Box 4/8/12/16/24/48/96 cores IP55 to IP68 ABS/ABS+PC/PP+glassfiber Mini/Module PLC Splitter OPTIC TERMINAL BOX

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Alternating Loss (dB):	≤ 0.2	Durability:	The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels:	Single Core, Dual Core, 4 Core	Frame Material:	Metal Or Plastic
Sleeve Material:	Ceramic Or Metal	Operating Temperature (℃）:	-40 ~ +85
Storage Temperature (℃）:	-40 ~ +85
Highlight:	Welding Symmetry-type Fiber Optic Adapter , Ceramic or Metal Sleeve Optical Coupler , ≤ 0.2dB Alternating Loss LC Adapter
