Home > Products> Optical Fiber System> LC MM DX One-piece Fiber Optic Adapter with Flange - ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, Wide Operating Temperature

LC MM DX One-piece Fiber Optic Adapter with Flange - ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, Wide Operating Temperature

LC MM DX One-piece Fiber Optic Adapter with Flange - ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, Wide Operating Temperature
LC MM DX One-piece Fiber Optic Adapter with Flange - ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, Wide Operating Temperature
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Minimum Order Quantity: 50pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Alternating Loss (dB): ≤ 0.2 Durability: The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels: Single Core, Dual Core, 4 Core Frame Material: Metal Or Plastic
Sleeve Material: Ceramic Or Metal Operating Temperature (℃）: -40 ~ +85
Storage Temperature (℃）: -40 ~ +85
Highlight:

≤ 0.2dB Alternating Loss Fiber Optic Adapter

,

Ceramic or Metal Sleeve Optical Coupler

,

Wide Operating Temperature LC Adapter

Product Description

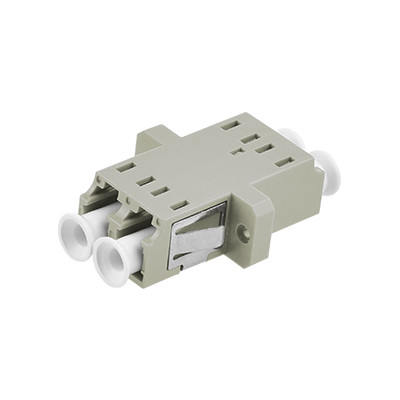

LC MM DX One-piece Adapter With Flange
LC MM DX One-piece Fiber Optic Adapter with Flange - ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, Wide Operating Temperature 0
This LC Multimode Duplex one-piece adapter with flange provides precise fiber optic connectivity for reliable data transmission in telecommunications and networking applications.
Product Identification
Zion Code Zion Description
7235018 LC MM DX One-piece Adapter With Flange
Applications
Fiber optic adapters precisely link two connectors to maximize light transmission while minimizing signal loss. These components feature low insertion loss, excellent interchangeability, and reliable reproducibility. Every adapter undergoes functional testing prior to shipment.
Product Description
Fiber optic adapters (also called couplers) enable connection between the same or different fiber optic connectors within fiber lines. They ensure uninterrupted optical pathways with minimal loss by precisely aligning fiber end faces to optimize light energy transmission from output to receiving fibers. Our adapters offer high flame retardancy, low insertion loss, exceptional durability, and wide operating temperature range.
LC MM DX One-piece Fiber Optic Adapter with Flange - ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, Wide Operating Temperature 1
Technical Specifications
Parameter FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC
Operating Wavelength SM (OS2): 1310-1550nm
MM (OM1,2,3,4): 850-1300nm
Insertion Loss ≤ 0.2 dB
Return Loss PC ≥45 dB | UPC ≥50 dB | APC ≥60 dB | PC ≥30 dB
Repeatability ≤ 0.2 dB
Alternating Loss ≤ 0.2 dB
Durability Change of 500 interpolation times < 0.20 dB
Number of Channels Single core, Dual core, 4 core
Frame Material Metal or Plastic
Sleeve Material Ceramic or Metal
Operating Temperature -40°C to +85°C
Storage Temperature -40°C to +85°C
Related Fiber Optic Adapters
Zion Code Zion Description
7235001 LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002 LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003 LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004 SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005 SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006 SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007 SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008 SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009 SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010 FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011 FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012 SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013 SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014 SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015 SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016 FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017 FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
Connector Types
LC MM DX One-piece Fiber Optic Adapter with Flange - ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, Wide Operating Temperature 2
LC Connector
Used in LC optical fiber interfaces to connect SFP modules. Features an easy-to-operate modular jack (RJ) latch mechanism. Commonly used in routers.
LC MM DX One-piece Fiber Optic Adapter with Flange - ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, Wide Operating Temperature 3
SC Connector
Used in SC fiber optic interfaces. Resembles RJ-45 but with flat design and copper contact pins instead of thin copper contacts.
LC MM DX One-piece Fiber Optic Adapter with Flange - ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, Wide Operating Temperature 4
FC Connector
Used in FC optical fiber interfaces with metal sleeve reinforcement and turnbuckle fastening. Typically used on ODF distribution frames.
LC MM DX One-piece Fiber Optic Adapter with Flange - ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, Wide Operating Temperature 5
ST Connector
Used in ST optical fiber interfaces with round shell and turnbuckle fastening. Commonly used in fiber distribution frames for 10Base-F connections.
OEM/ODM Services
Zion Communication offers comprehensive OEM/ODM services with our professional R&D team. Services include customized logos and label/PE bag/carton design to meet your specific requirements.
