LC MM DX Asymmetric Welding Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Operating Temperature

LC MM DX Asymmetric Welding Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Operating Temperature
LC MM DX Asymmetric Welding Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Operating Temperature
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Minimum Order Quantity: 50pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Alternating Loss (dB): ≤ 0.2 Durability: The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels: Single Core, Dual Core, 4 Core Frame Material: Metal Or Plastic
Sleeve Material: Ceramic Or Metal Operating Temperature (℃）: -40 ~ +85
Storage Temperature (℃）: -40 ~ +85
Highlight:

≤ 0.2dB Alternating Loss Fiber Optic Adapter

,

Ceramic or Metal Sleeve Optical Coupler

,

Wide Operating Temperature LC Adapter

Product Description

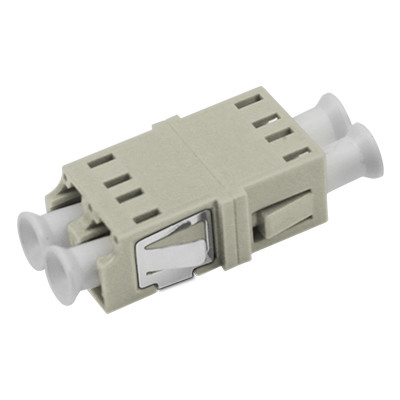

LC MM DX Asymmetric Welding Adapter Without Flange
This fiber optic adapter provides precise connection between LC multimode connectors in asymmetric DX configuration without flange. Designed for optimal light transmission with minimal loss.
LC MM DX Asymmetric Welding Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Operating Temperature 0 LC MM DX Asymmetric Welding Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Operating Temperature 1
Product Identification
Zion Code Zion Description
7235017 LC MM DX Asymmetric Welding Adapter Without Flange
Applications
Fiber optic adapters precisely link two connectors to maximize light transmission while minimizing signal loss. These components feature low insertion loss, excellent interchangeability, and reliable reproducibility. Each adapter undergoes functional testing prior to shipment.
Product Description
Fiber optic adapters enable connection between same or different fiber optic connectors in transmission lines, ensuring uninterrupted optical pathways with minimal signal degradation. By precisely aligning fiber end faces, they maximize light energy transfer from transmitting to receiving fibers while minimizing system impact. These passive optical components serve telecommunications networks, cable television systems, user loop networks, and local area networks.
Hangzhou Zion Communication adapters offer high flame retardancy, low insertion loss, exceptional durability, and wide operating temperature range, making them the optimal choice for reliable fiber optic connectivity.
Also known as fiber optic couplers, these compact devices terminate or link fiber optic cables and connectors between optical lines.
LC MM DX Asymmetric Welding Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Operating Temperature 2
Technical Specifications
Parameter FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC
SM (OS2) MM (OM1,2,3,4)
Operating Wavelength (nm) 1310-1550 | 850-1300
Insertion Loss (dB) ≤ 0.2
Return Loss (dB) PC ≥45 | UPC ≥50 | APC ≥60 | PC ≥30
Repeatability (dB) ≤ 0.2
Alternating Loss (dB) ≤ 0.2
Durability The change of 500 interpolation times is less than 0.20dB
Number of Channels Single core, Dual core, 4 core
Frame Material Metal or Plastic
Sleeve Material Ceramic or Metal
Operating Temperature (°C) -40 ~ +85
Storage Temperature (°C) -40 ~ +85
Related LC-LC Fiber Optic Adapters
Zion Code Zion Description
7235001LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018FC With Rectangle Flange Fiber Optic Adapter/Coupler
Connector Types
LC Connector: Used in LC optical fiber interfaces to connect SFP modules. Features easy-to-operate modular jack (RJ) latch mechanism, commonly used in routers.
LC MM DX Asymmetric Welding Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Operating Temperature 3
SC Connector: Used in SC fiber optic interfaces. Resembles RJ-45 interface but is flatter with copper column contacts instead of thin copper pins.
LC MM DX Asymmetric Welding Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Operating Temperature 4
FC Connector: Used in FC optical fiber interfaces. Features metal sleeve external reinforcement with turnbuckle fastening, typically used on ODF distribution frames.
LC MM DX Asymmetric Welding Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Operating Temperature 5
ST Connector: Used in ST optical fiber interfaces. Features round shell with turnbuckle fastening, commonly used in fiber distribution frames for 10Base-F connections.
LC MM DX Asymmetric Welding Fiber Optic Adapter with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Operating Temperature 6
OEM/ODM Services Available
ZION Communication offers comprehensive OEM/ODM services supported by our professional R&D team. Customization options include:
  • Customized Logo
  • Label/PE bag/Carton design
