LC DX Metal Fiber Optic Adapter with ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, and Wide Operating Temperature (-40 to +85℃)

LC DX Metal Fiber Optic Adapter with ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, and Wide Operating Temperature (-40 to +85℃)
LC DX Metal Fiber Optic Adapter with ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, and Wide Operating Temperature (-40 to +85℃)
Basic Information
Place of Origin: CHINA
Brand Name: HELLOSIGNAL® OR OEM
Minimum Order Quantity: 50pcs
Packaging Details: 10 PC / Plastic Bag
Delivery Time: Normally 25 days after received the deposit.
Payment Terms: T/T
Supply Ability: no limit
Get Best Price Contact Now
Detail Information
Alternating Loss (dB): ≤ 0.2 Durability: The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels: Single Core, Dual Core, 4 Core Frame Material: Metal Or Plastic
Sleeve Material: Ceramic Or Metal Operating Temperature (℃）: -40 ~ +85
Storage Temperature (℃）: -40 ~ +85
Highlight:

≤ 0.2dB Alternating Loss Fiber Optic Adapter

,

Ceramic or Metal Sleeve Optical Coupler

,

Wide Operating Temperature LC Adapter

Product Description

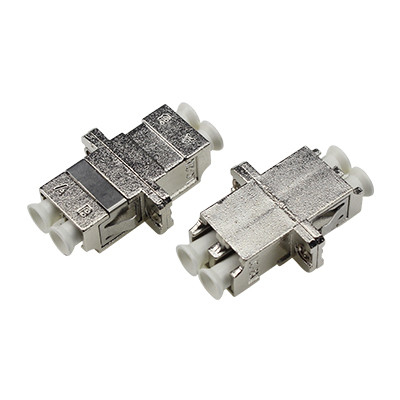

LC DX Metal Adapter
Fiber Optic Adapter

SC LC FC ST/APC UPC SX/DX/QUAD 0.9/2.0/3.0mm Welding Symmetry Plastic/Hybrid OPTIC ADAPTER/COUPLER

Inquire Now
LC DX Metal Fiber Optic Adapter with ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, and Wide Operating Temperature (-40 to +85℃) 0 LC DX Metal Fiber Optic Adapter with ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, and Wide Operating Temperature (-40 to +85℃) 1
Product Identification
Zion Code Zion Description
7235015 LC DX Metal Adapter
Applications
  • By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at maximum efficiency while minimizing loss. These adapters feature low insertion loss, excellent interchangeability, and reproducibility. Each adapter undergoes functional testing before shipping.
Product Description

Fiber optic adapters implement connections between the same or different fiber optic active connectors in fiber lines, ensuring uninterrupted optical pathways with minimal loss. They precisely align fiber end faces to maximize light energy transmission from output fibers to receiving fibers, minimizing system impact from optical link intervention.

As optical passive components, they are used in telecommunications networks, cable television networks, user loop systems, and local area networks. Hangzhou Zion Communication adapters offer high flame retardancy, low insertion loss, high durability, and wide operating temperature range.

Also called couplers, fiber optic adapters are compact devices designed to terminate or link fiber optic cables or connectors between two fiber optic lines.

Technical Specifications
Parameter SM (OS2) MM (OM1,2,3,4)
Operating Wavelength (nm) 1310-1550 850-1300
Insertion Loss (dB) ≤ 0.2
Return Loss (dB) PC ≥45 | UPC ≥50 | APC ≥60 | PC ≥30
Repeatability (dB) ≤ 0.2
Alternating Loss (dB) ≤ 0.2
Durability Change of 500 interpolations less than 0.20dB
Number of Channels Single core, Dual core, 4 core
Frame Material Metal or Plastic
Sleeve Material Ceramic or Metal
Operating Temperature (°C) -40 to +85
Storage Temperature (°C) -40 to +85
Related Products
Zion Code Zion Description
7235001LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018FC With Rectangle Flange Fiber Optic Adapter/Coupler
Connector Types
LC DX Metal Fiber Optic Adapter with ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, and Wide Operating Temperature (-40 to +85℃) 2
LC Connector
Used in LC optical fiber interface to connect SFP modules. Features easy-to-operate modular jack latch mechanism. Commonly used in routers.
LC DX Metal Fiber Optic Adapter with ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, and Wide Operating Temperature (-40 to +85℃) 3
SC Connector
Used in SC fiber optic interface, similar to RJ-45 but flatter. Identified by copper column contacts. Commonly used in network infrastructure.
LC DX Metal Fiber Optic Adapter with ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, and Wide Operating Temperature (-40 to +85℃) 4
FC Connector
Used in FC optical fiber interface with metal sleeve reinforcement and turnbuckle fastening. Typically used on ODF distribution frames.
LC DX Metal Fiber Optic Adapter with ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve, and Wide Operating Temperature (-40 to +85℃) 5
ST Connector
Used in ST optical fiber interface with round shell and turnbuckle fastening. Common in fiber distribution frames and 10Base-F connections.
OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM services with professional R&D team support:

  • Customized Logo
  • Label/PE bag/Carton design
