LC APC QUAD Welding Symmetry-type Fiber Optic Adapter with Flange, ≤ 0.2dB Alternating Loss, Ceramic or Metal Sleeve

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Alternating Loss (dB):	≤ 0.2	Durability:	The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels:	Single Core, Dual Core, 4 Core	Frame Material:	Metal Or Plastic
Sleeve Material:	Ceramic Or Metal	Operating Temperature (℃）:	-40 ~ +85
Storage Temperature (℃）:	-40 ~ +85
Highlight:	≤ 0.2dB Alternating Loss Fiber Optic Adapter , Ceramic or Metal Sleeve Optical Coupler , Welding Symmetry-type LC APC Adapter

Product Description

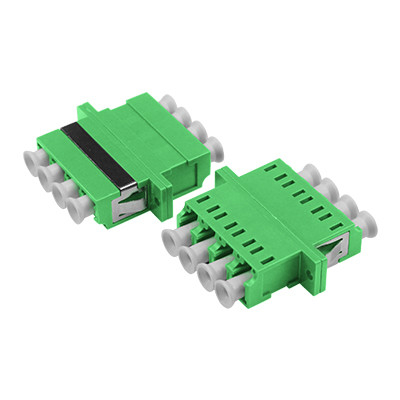

LC APC QUAD Welding Symmetry-type Adapter With Flange

Fiber optic adapter designed to terminate or link fiber optic cables and connectors between two fiber optic lines with minimal signal loss.

Product Identification

Zion Code	Zion Description
7235012	LC APC QUAD Welding Symmetry-type Adapter With Flange

Applications

Fiber optic adapters precisely link two connectors to maximize light transmission while minimizing signal loss. These components feature low insertion loss, excellent interchangeability, and high reproducibility. Each adapter undergoes functional testing before shipment to ensure optimal performance.

Product Description

Fiber optic adapters enable connection between same or different fiber optic active connectors in fiber lines, ensuring uninterrupted optical pathways with minimal loss. By precisely aligning fiber end faces, they maximize light energy output coupling to receiving fibers while minimizing system impact. These passive components are suitable for telecommunications networks, cable television networks, user loop systems, and local area networks.

Hangzhou Zion Communication adapters offer high flame retardancy, low insertion loss, exceptional durability, and wide operating temperature range.

LC APC QUAD Asymmetric Welding Adapter With Flange

Technical Specifications

Parameter	FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC
Operating Wavelength (nm)	SM (OS2): 1310-1550 MM (OM1,2,3,4): 850-1300
Insertion Loss (dB)	≤ 0.2
Return Loss (dB)	PC ≥45 \| UPC ≥50 \| APC ≥60 \| PC ≥30
Repeatability (dB)	≤ 0.2
Alternating Loss (dB)	≤ 0.2
Durability	Change of 500 interpolations < 0.20dB
Number of Channels	Single core, Dual core, 4 core
Frame Material	Metal or Plastic
Sleeve Material	Ceramic or Metal
Operating Temperature (°C)	-40 ~ +85
Storage Temperature (°C)	-40 ~ +85

Related Fiber Optic Adapter Products

Zion Code	Zion Description
7235001	LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002	LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003	LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004	SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005	SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006	SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007	SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008	SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009	SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010	FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011	FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012	SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013	SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014	SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015	SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016	FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017	FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018	FC With Rectangle Flange Fiber Optic Adapter/Coupler

Connector Types

LC Connector: Used in LC optical fiber interfaces to connect SFP modules. Features easy-to-operate modular jack latch mechanism, commonly used in routers.

SC Connector: Used in SC fiber optic interfaces, similar to RJ-45 but flatter with copper column contacts instead of thin copper pins.

FC Connector: Used in FC optical fiber interfaces with metal sleeve external strengthening and turnbuckle fastening, typically used on ODF distribution frames.

ST Connector: Used in ST optical fiber interfaces with round shell and turnbuckle fastening, commonly used in fiber distribution frames for 10Base-F connections.

OEM/ODM Services

Zion Communication offers comprehensive OEM/ODM services with professional R&D team support, including:

Customized Logo
Label/PE bag/Carton design
