LC APC QUAD One-piece Fiber Optic Adapter Without Flange with ≤ 0.2dB Alternating Loss and Ceramic or Metal Sleeve for Wide Temperature Range

Basic Information

Place of Origin:	CHINA
Brand Name:	HELLOSIGNAL® OR OEM

Minimum Order Quantity:	50pcs
Packaging Details:	10 PC / Plastic Bag
Delivery Time:	Normally 25 days after received the deposit.
Payment Terms:	T/T
Supply Ability:	no limit

Get Best Price Contact Now

Detail Information

Alternating Loss (dB):	≤ 0.2	Durability:	The Change Of 500 Interpolation Times Is Less Than 0.20dB
Number Of Channels:	Single Core, Dual Core, 4 Core	Frame Material:	Metal Or Plastic
Sleeve Material:	Ceramic Or Metal	Operating Temperature (℃）:	-40 ~ +85
Storage Temperature (℃）:	-40 ~ +85
Highlight:	≤ 0.2dB Alternating Loss Fiber Optic Adapter , Ceramic or Metal Sleeve Optical Coupler , Wide Operating Temperature LC APC QUAD Adapter

Product Description

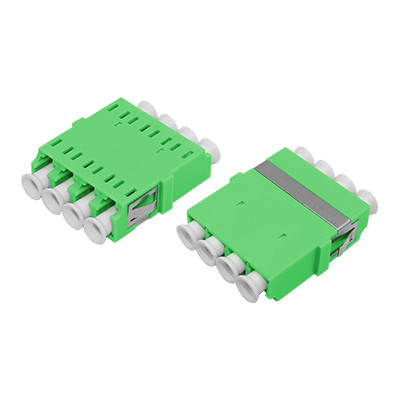

LC APC QUAD One-piece Adapter Without Flange

This fiber optic adapter provides precise connection between LC APC QUAD connectors, ensuring maximum light transmission with minimal loss. Designed for reliable performance in telecommunications and networking applications.

Product Identification

Zion Code	Zion Description
7235011	LC APC QUAD One-piece Adapter Without Flange

Applications

Fiber optic adapters precisely link two connectors to maximize light transmission while minimizing signal loss. These components feature low insertion loss, excellent interchangeability, and reliable reproducibility. Each adapter undergoes functional testing before shipment to ensure optimal performance.

Product Description

This fiber optic adapter enables connection between the same or different fiber optic connectors within fiber lines. It ensures uninterrupted optical pathways with minimal signal degradation by precisely aligning fiber end faces. This maximizes light energy coupling between transmitting and receiving fibers while minimizing system impact.

High flame retardancy for safety compliance
Low insertion loss for optimal signal integrity
High durability for long-term reliability
Wide operating temperature range for diverse environments

LC APC QUAD Asymmetric Welding Adapter With Flange

Technical Specifications

Parameter	FC, SC, LC, ST, MU, MTRJ, ST-SC, FC-SC, ST-FC
Operating Wavelength (nm)	SM (OS2): 1310-1550 \| MM (OM1,2,3,4): 850-1300
Insertion Loss (dB)	≤ 0.2
Return Loss (dB)	PC ≥45 \| UPC ≥50 \| APC ≥60 \| PC ≥30
Repeatability (dB)	≤ 0.2
Alternating Loss (dB)	≤ 0.2
Durability	Change of 500 interpolation times is less than 0.20dB
Number of Channels	Single core, Dual core, 4 core
Frame Material	Metal or Plastic
Sleeve Material	Ceramic or Metal
Operating Temperature (°C)	-40 to +85
Storage Temperature (°C)	-40 to +85

Related LC-LC Fiber Optical Adapters

Zion Code	Zion Description
7235001	LC SX Plastic Fiber Optic Adapter/Coupler with Flange
7235002	LC Dx Welding Symmetry Plastic Fiber Optic Adapter/Coupler with Flange
7235003	LC QUAD One-piece Plastic Fiber Optic Adapter/Coupler with Flange
7235004	SC Plastic Fiber Optic Adapter/Coupler with Legs
7235005	SC Cover Avoid Laser Plastic Fiber Optic Adapter/Coupler without Flange
7235006	SC SX Metal Avoid Laser Fiber Optic Adapter/Coupler with Flange
7235007	SC DX Metal Avoid Fiber Optic Adapter/Coupler with Flange
7235008	SC-FC SX Hybrid Fiber Optic Adapter/Coupler
7235009	SC-FC DX Hybrid Fiber Optic Adapter/Coupler
7235010	FC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235011	FC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235012	SC-LC SX Hybrid Fiber Optic Adapter/Coupler
7235013	SC-LC DX Hybrid Fiber Optic Adapter/Coupler
7235014	SC-ST SX Hybrid Fiber Optic Adapter/Coupler
7235015	SC-ST DX Hybrid Fiber Optic Adapter/Coupler
7235016	FC SX Big D-Type Fiber Optic Adapter/Coupler
7235017	FC SX With Rectangle Flange Fiber Optic Adapter/Coupler
7235018	FC With Rectangle Flange Fiber Optic Adapter/Coupler

Connector Types

LC Connector: Used in LC optical fiber interface to connect SFP module connectors. Features an easy-to-operate modular jack (RJ) latch mechanism, commonly used in routers.

SC Connector: Used in SC fiber optic interface, resembling RJ-45 but with copper contact pins instead of thin copper contacts.

FC Connector: Used in FC optical fiber interface with metal sleeve external reinforcement and turnbuckle fastening, typically used on ODF distribution frames.

ST Connector: Used in ST optical fiber interface with round shell and turnbuckle fastening, commonly used in fiber distribution frames for 10Base-F connections.

OEM/ODM Services

ZION Communication offers comprehensive OEM/ODM services with our professional R&D team, including:

Customized Logo
Label/PE bag/Carton design
